Remote Control Switch Test

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 4P connector (A) from the sliding door remote control switch.
- B: Remote control switch 1
- C: Remote control switch 2
- D: Remote control switch 3

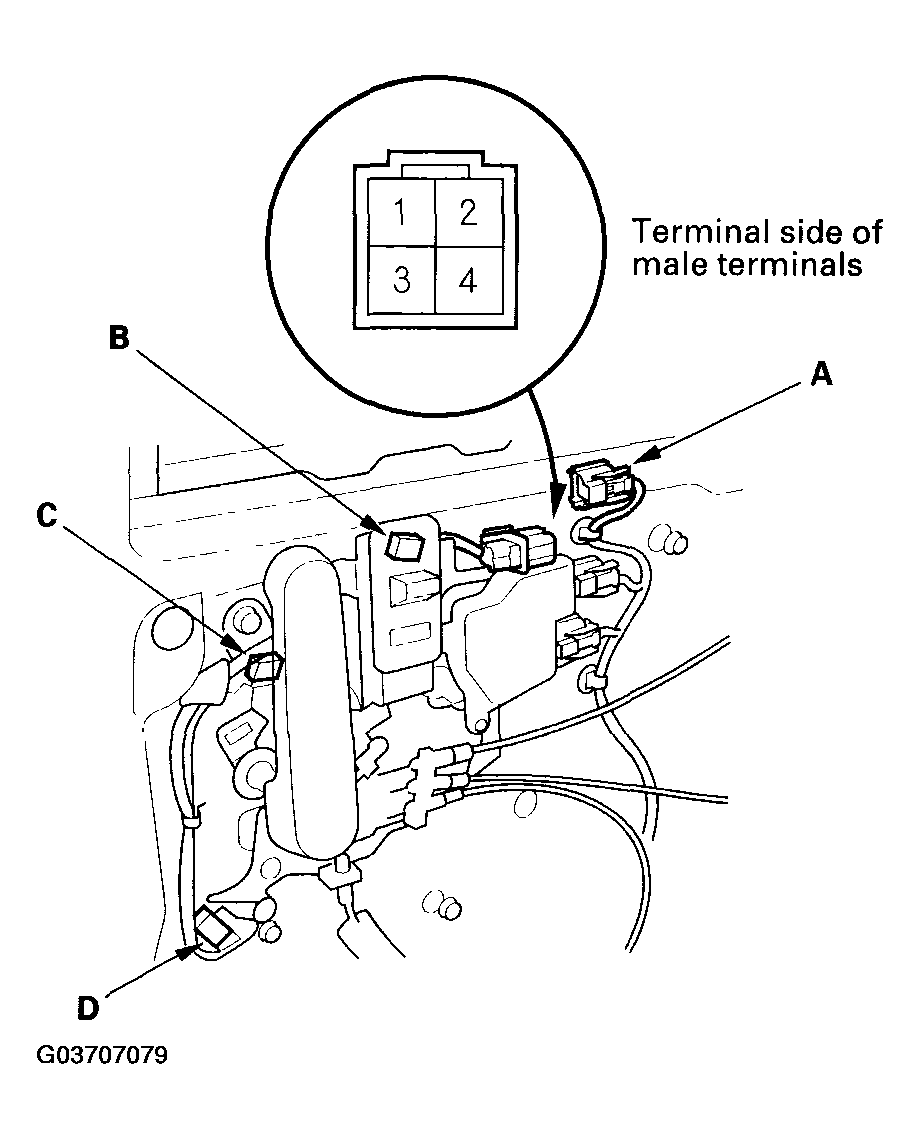

Fig 1: Disconnecting 4P Connector From Sliding Door Remote Control Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

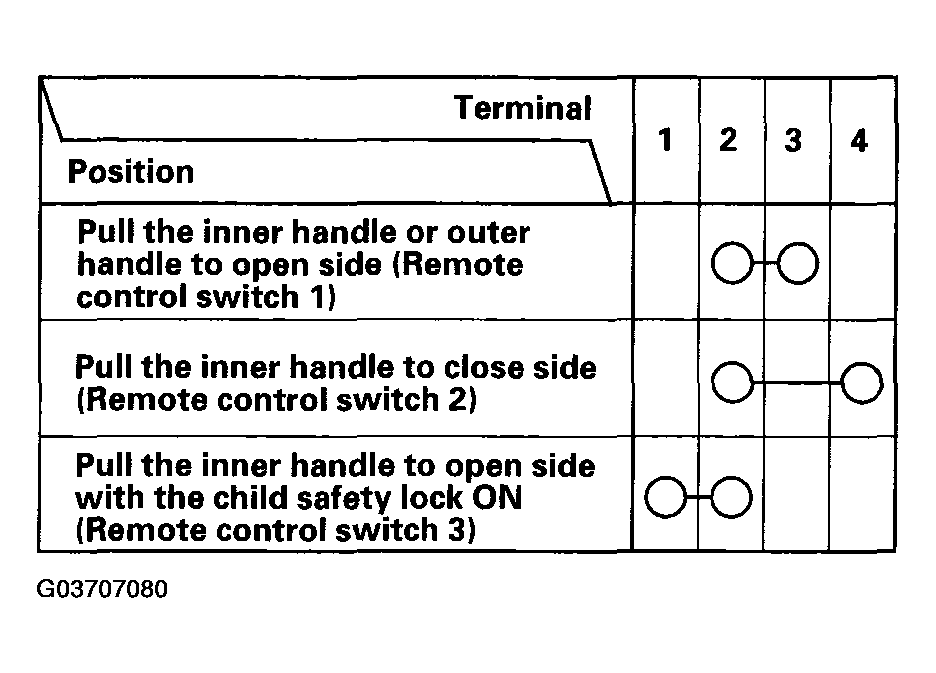

Fig 2: Checking Continuity Between Terminal In Each Switch Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
