Window Position Switch Test

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the window position switch (B).

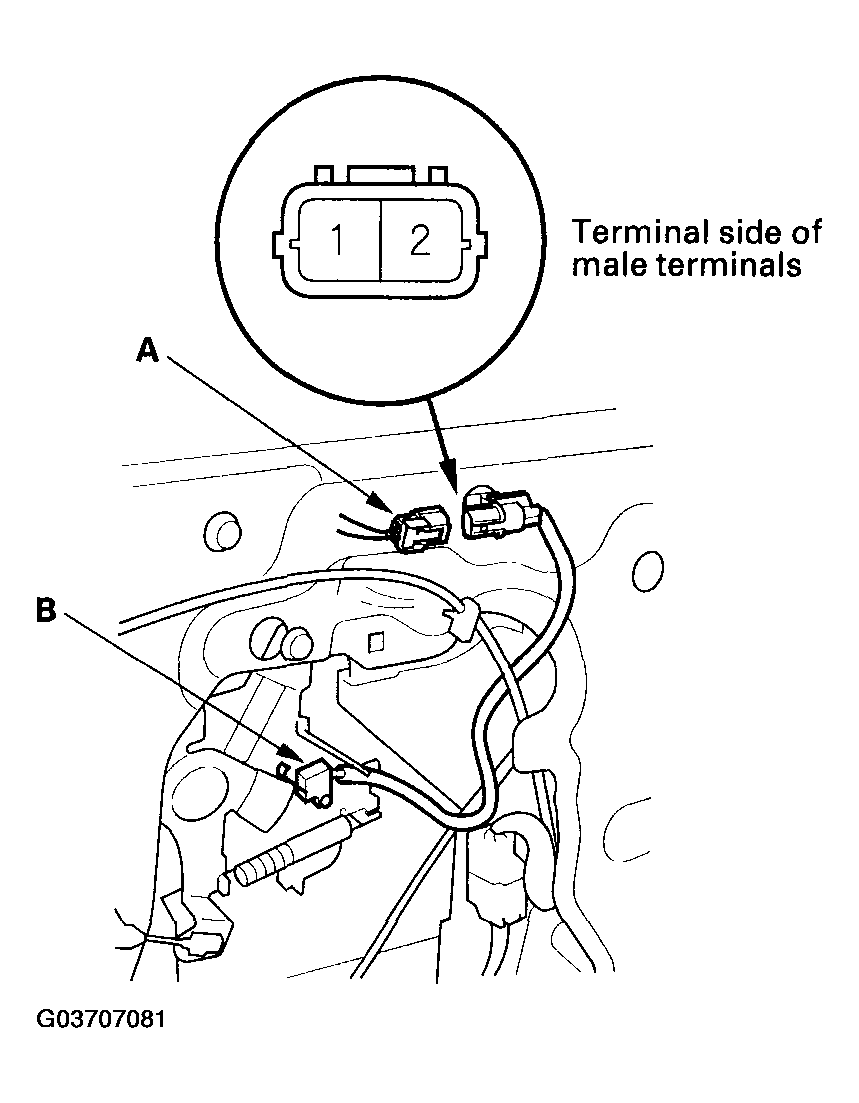

    Fig 1: Disconnecting 2P Connector From Window Position Switch
    G03707081Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the window position switch 2P connector No. 1 and No. 2 terminals.
    NOTE: Do not touch the sliding door while the window is moving.
    • There should be continuity with the sliding door window closed.
    • There should be no continuity with the sliding door window opened about 3.9 in. (100 mm).
  4. If the continuity is not as specified, replace the switch.
