Rear Controller and Screen Removal/Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the headliner and display cover.

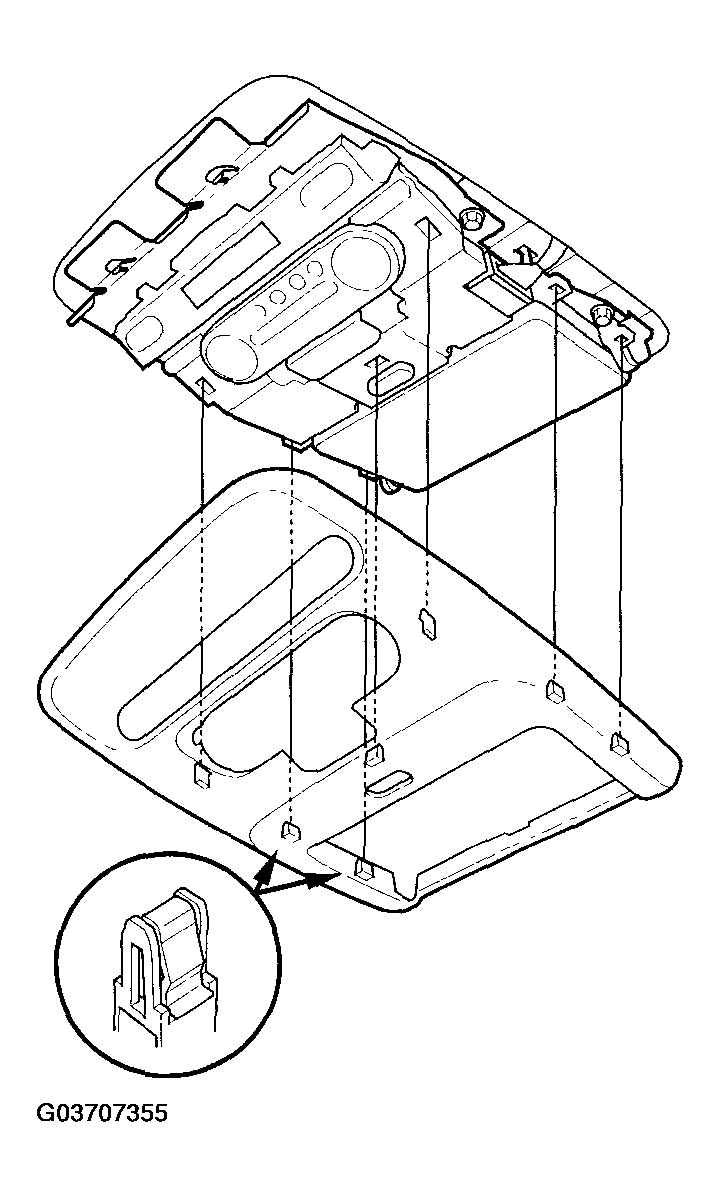

Remove the display cover.

Fig 1: Removing Display Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

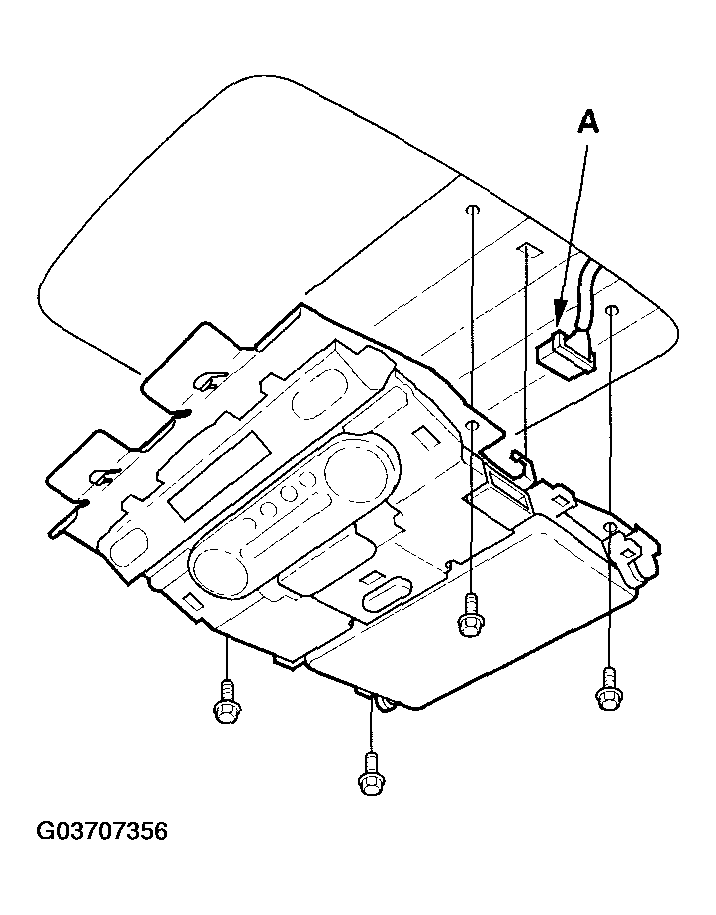

Remove the mounting bolts, disconnect the connector (A) from the rear controller and screen.

Fig 2: Disconnecting Connector From Rear Controller And Screen
Courtesy of AMERICAN HONDA MOTOR CO., INC.

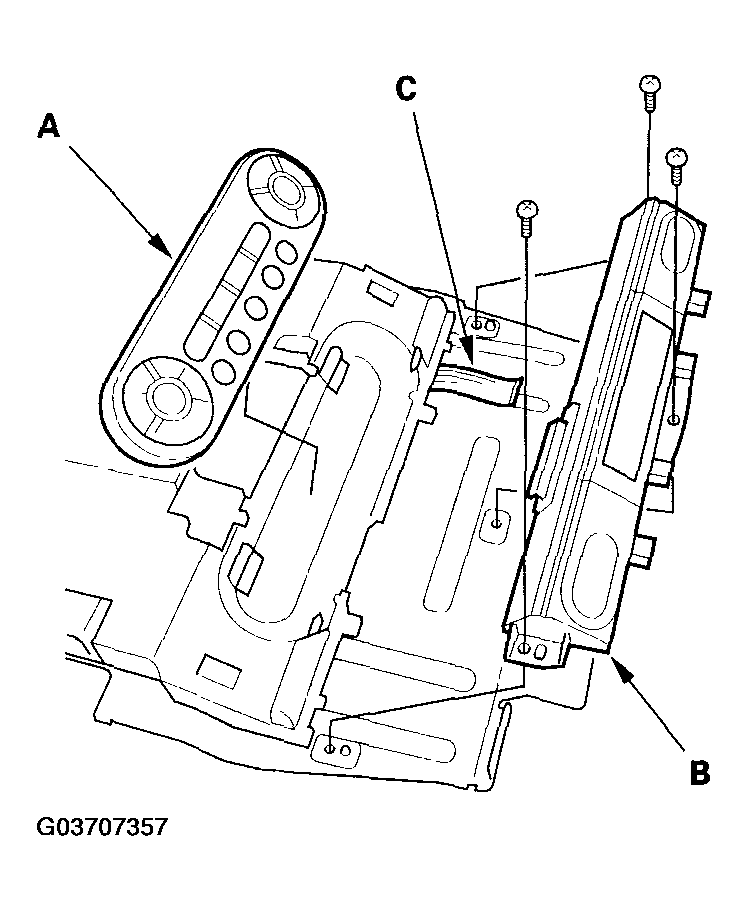

Remove the wireless remote control (A).

Fig 3: Removing Wireless Remote Control
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws from the rear indicator (B).
Disconnect the cable (C) from the rear indicator.

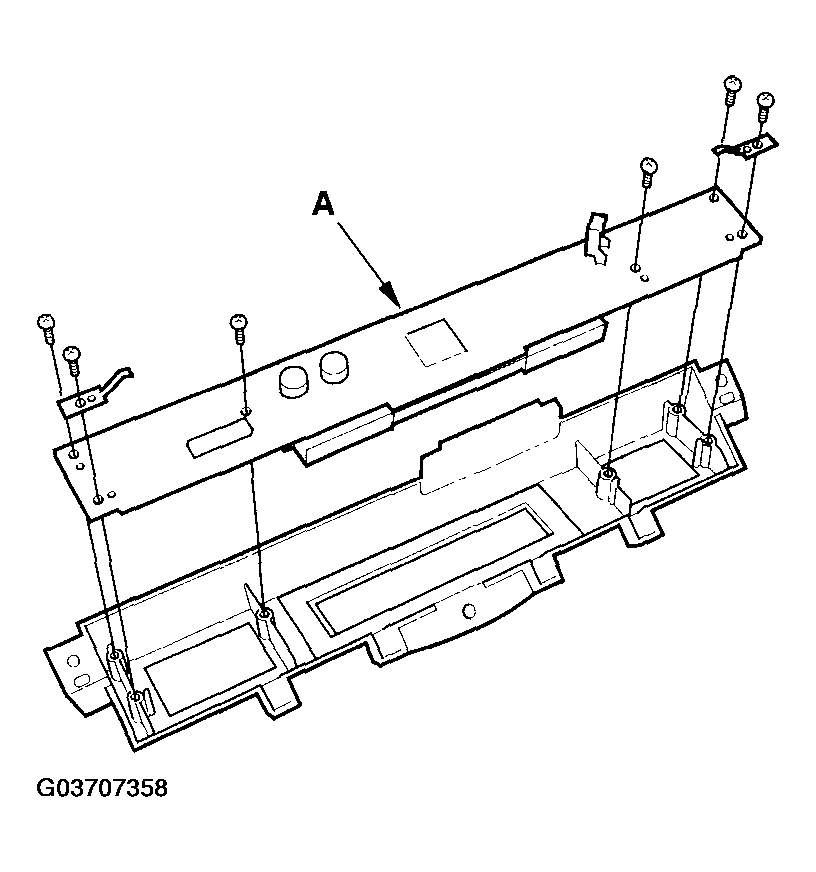

Remove the screws, then remove the rear indicator printed circuit board (A).

Fig 4: Removing Rear Indicator Printed Circuit Board
Courtesy of AMERICAN HONDA MOTOR CO., INC.

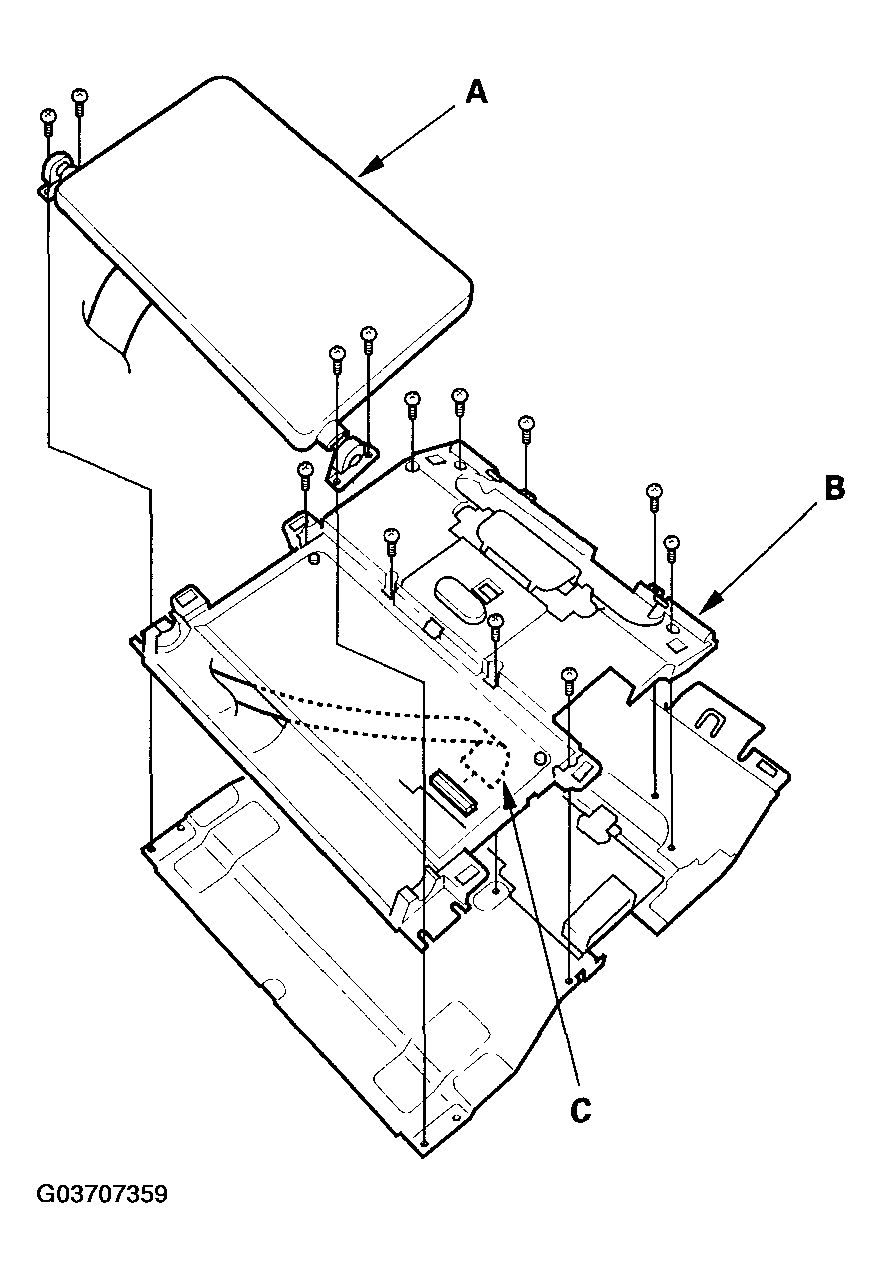

Remove the screws, then remove the screen (A) and base (B). Disconnect the cable (C).

Fig 5: Removing Screen And Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.

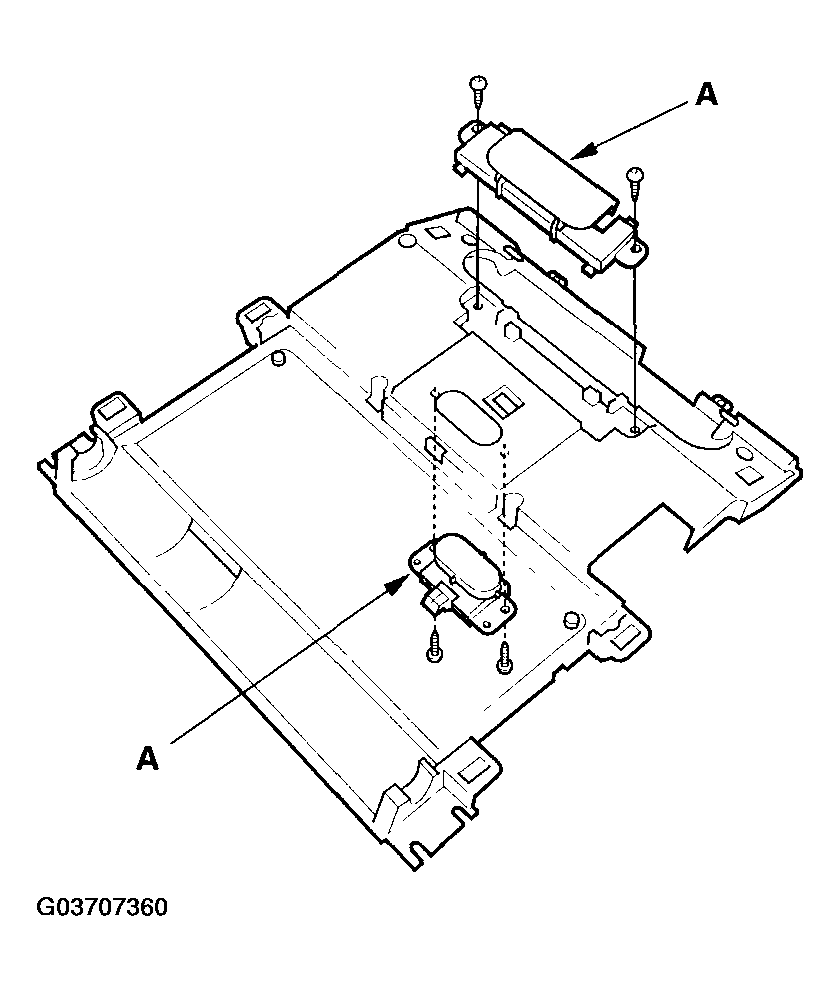

Remove the screws and lock switch (A).

Fig 6: Removing Lock Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

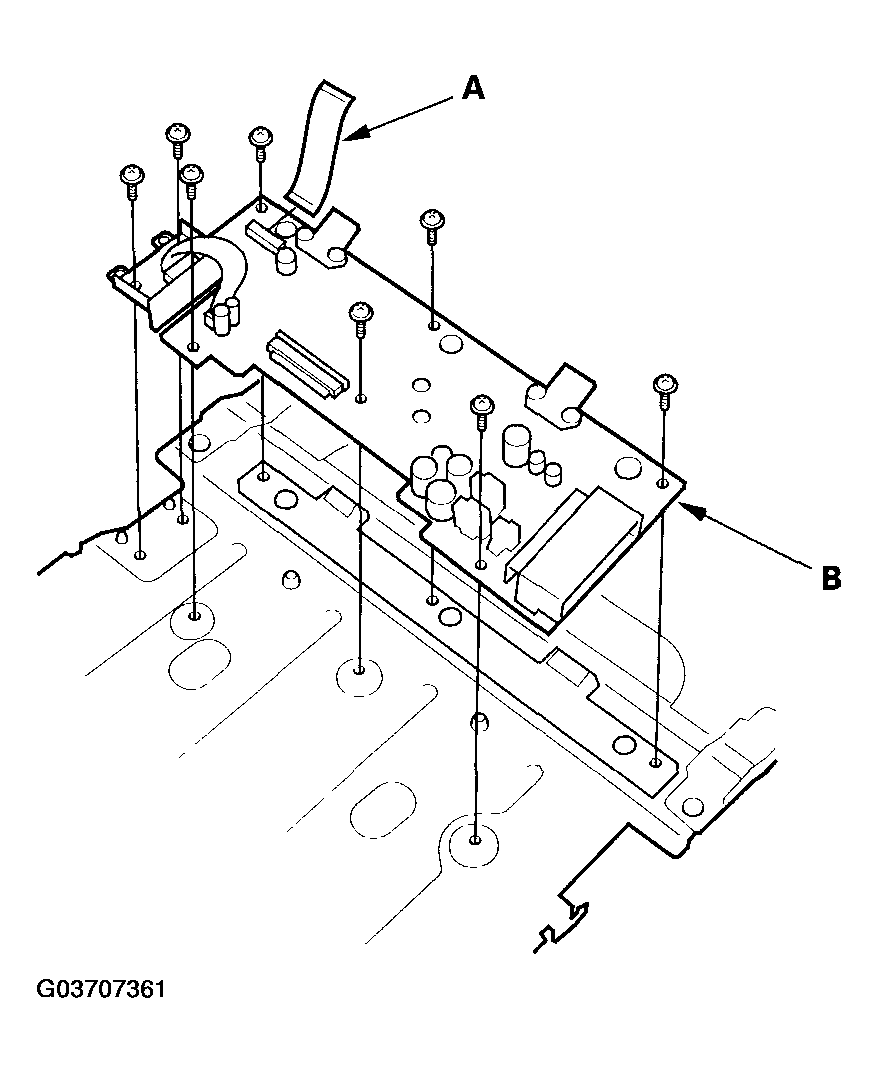

Disconnect the cable (A), then remove the screws and the rear control printed circuit board (B).

Fig 7: Removing Rear Control Printed Circuit Board
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal, and make sure the rear controller and screen connector is plugged in properly.
