Cruise Control Actuator/Cable Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

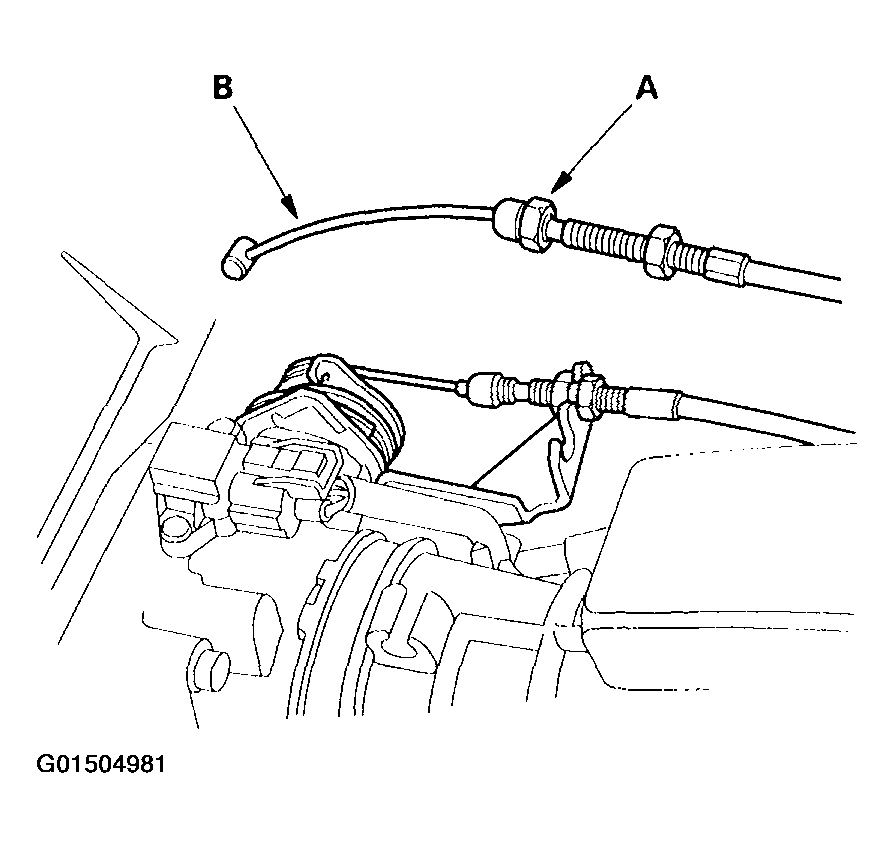

Loosen the locknut (A), then disconnect the actuator cable (B) from the throttle linkage.

Fig 1: Loosening The Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

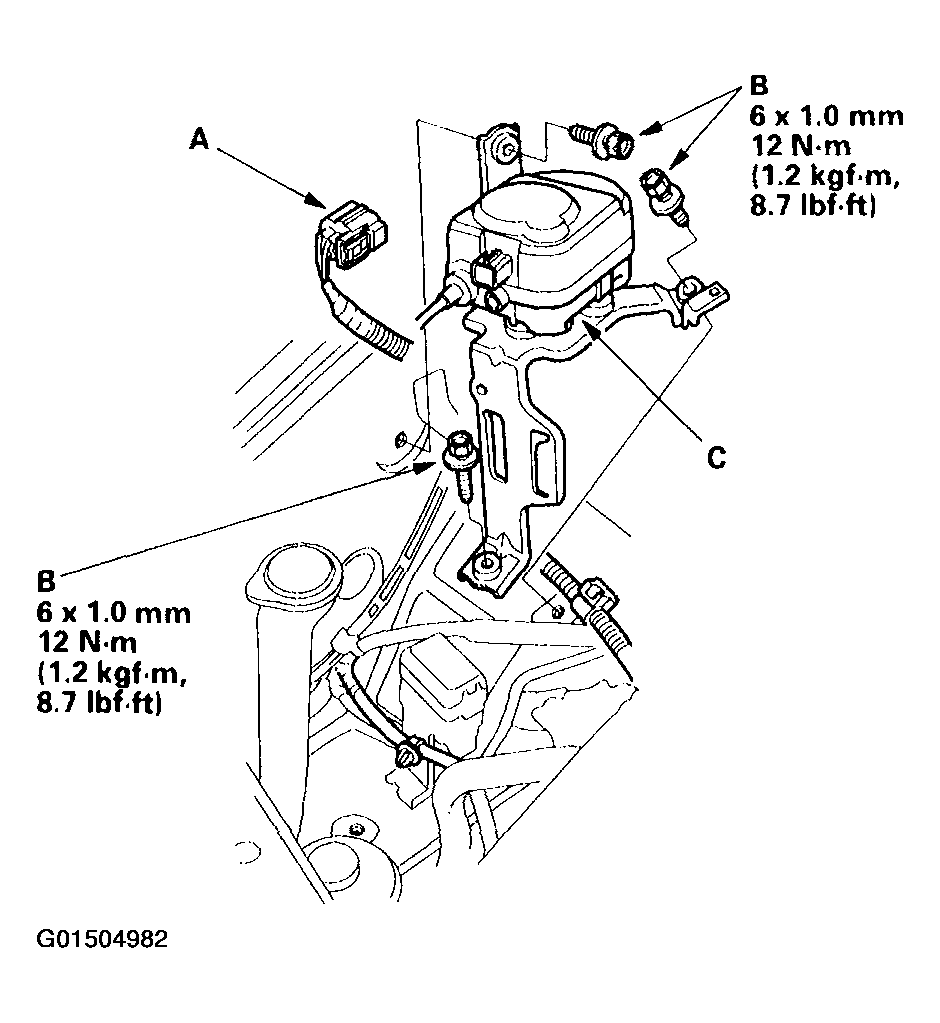

Disconnect the 4P connector (A) from the cruise control actuator.

Fig 2: Disconnecting The 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the three mounting bolts (B), and remove the cruise control actuator assembly (C).
Install actuator/cable in the reverse order of removal, and adjust the free play at the throttle linkage (see Cruise Control Actuator Cable Adjustment ) after connecting the actuator cable.
