2002-2004 models

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

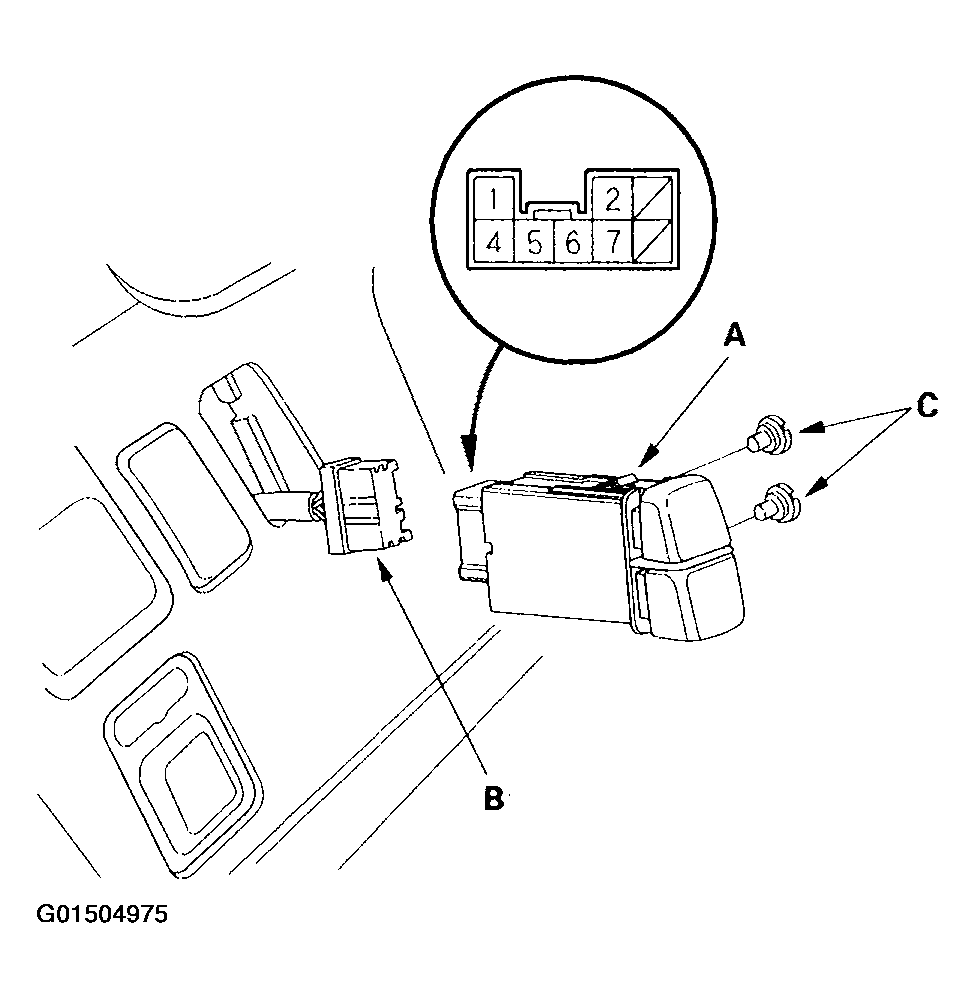

Carefully pry the switch (A) out of the instrument panel.

Fig 1: Prying The Switch Out Of The Instrument Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 8P connector (B) from the switch.

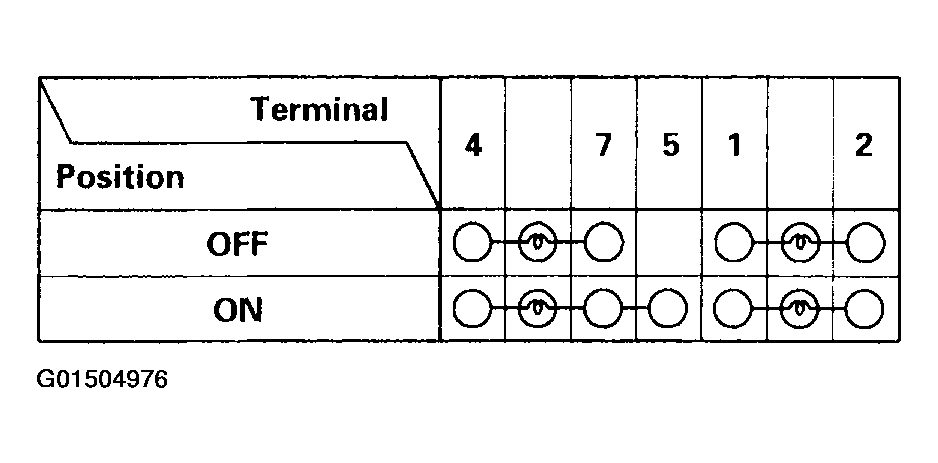

Check for continuity between the terminals in each switch position according to the table. If there is no continuity, replace the illumination bulbs (C) or the switch.

Fig 2: Checking For Continuity Between The Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
