Cruise Control Set/Resume/Cancel Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the two screws (A), then remove the switch (B).

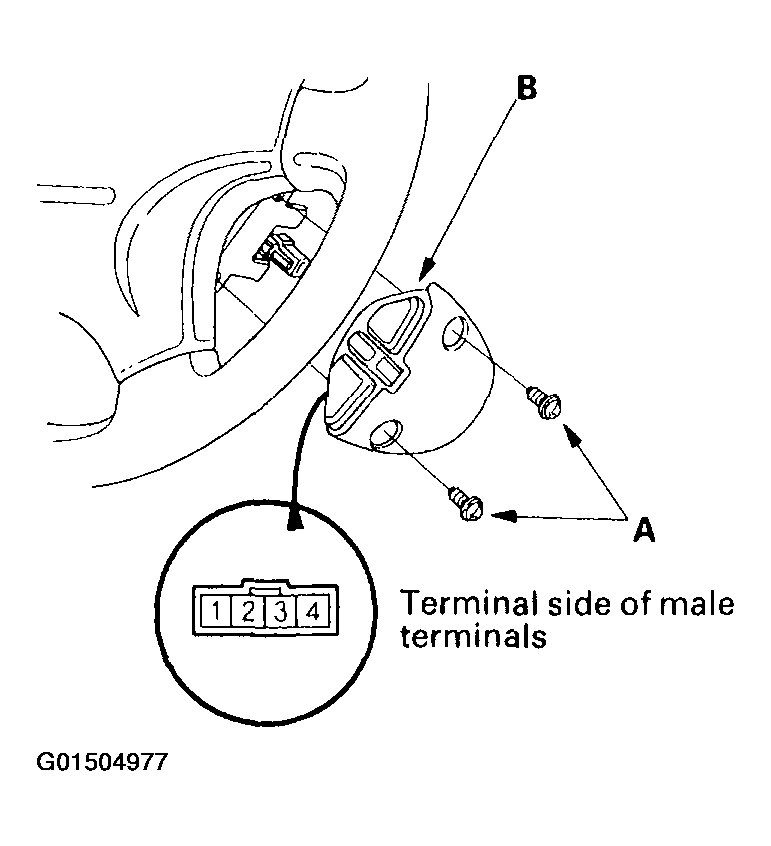

Fig 1: Removing The Two Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in switch position according to the table.
- If there is continuity, and it matches the table, but switch failure was indicated by the cruise control unit input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the switch.

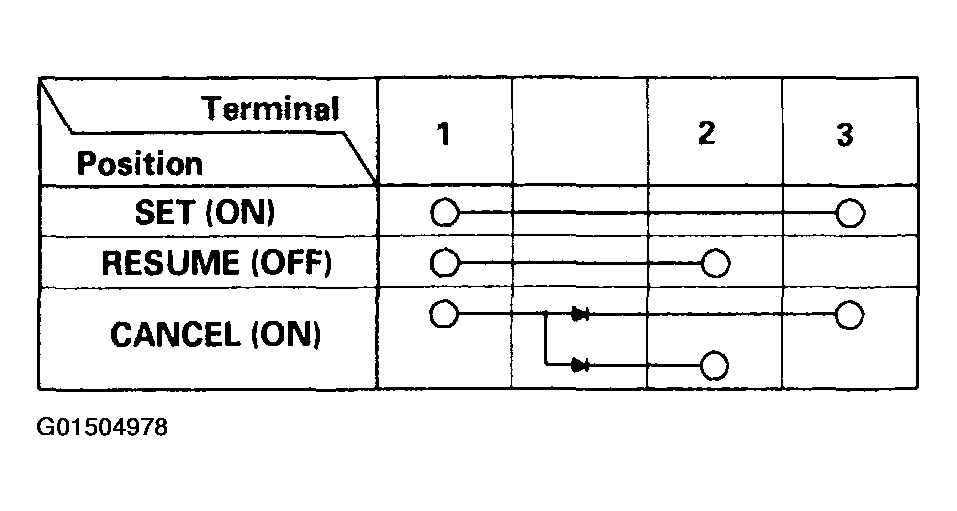

Fig 2: Checking For Continuity Between The Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
