Cruise Control Unit Input Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SRS components are located in this area. Review the SRS component locations, (see appropriate AIR BAG RESTRAINT SYSTEM article under RESTRAINS), and the precautions and procedures in the SRS before performing repairs or service.

Remove the driver's dashboard lower cover (see DASHBOARD ).
Disconnect the 14P connector from the cruise control unit.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

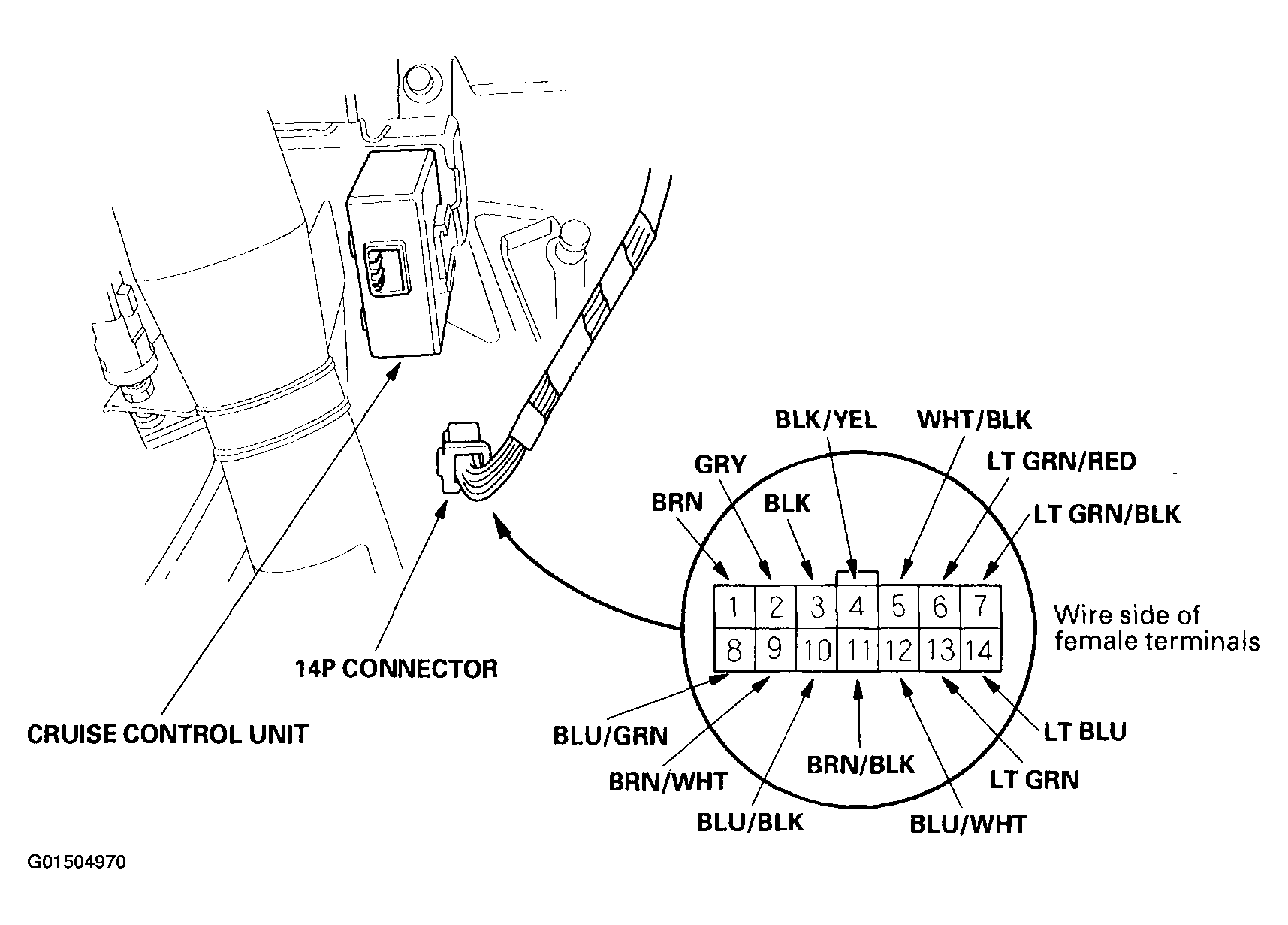

Fig 1: Inspecting The Connector & Socket Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

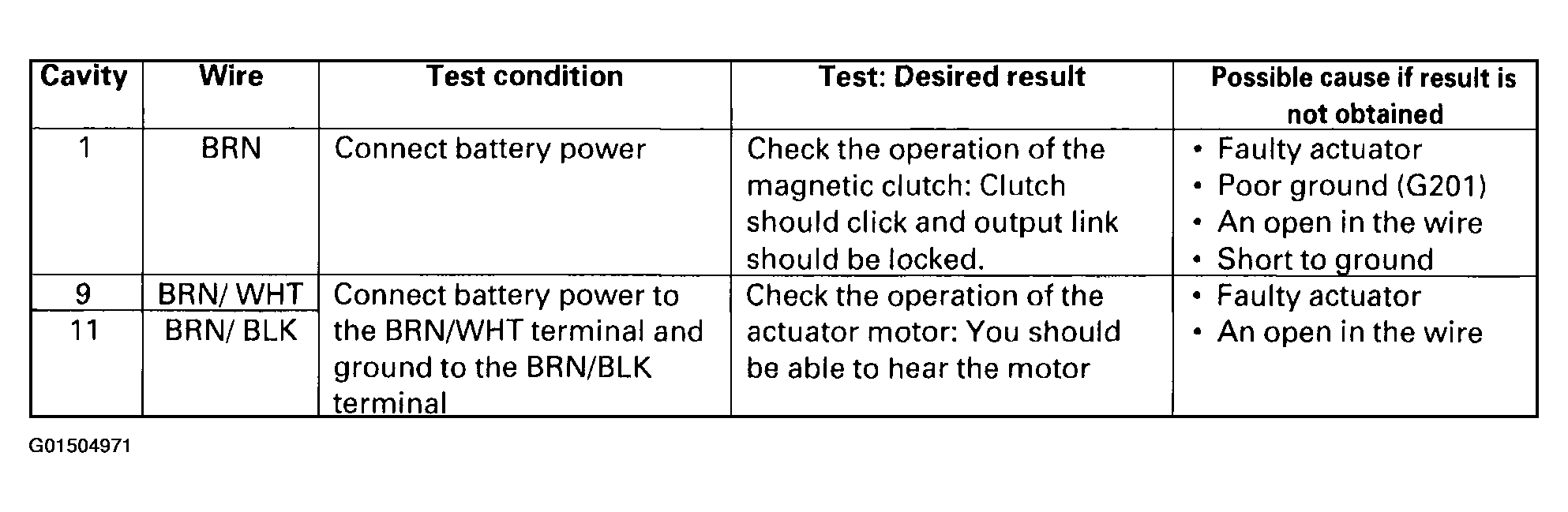

With the 14P connector disconnected, make these input tests.

Fig 2: Cruise Control Unit Input Test Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

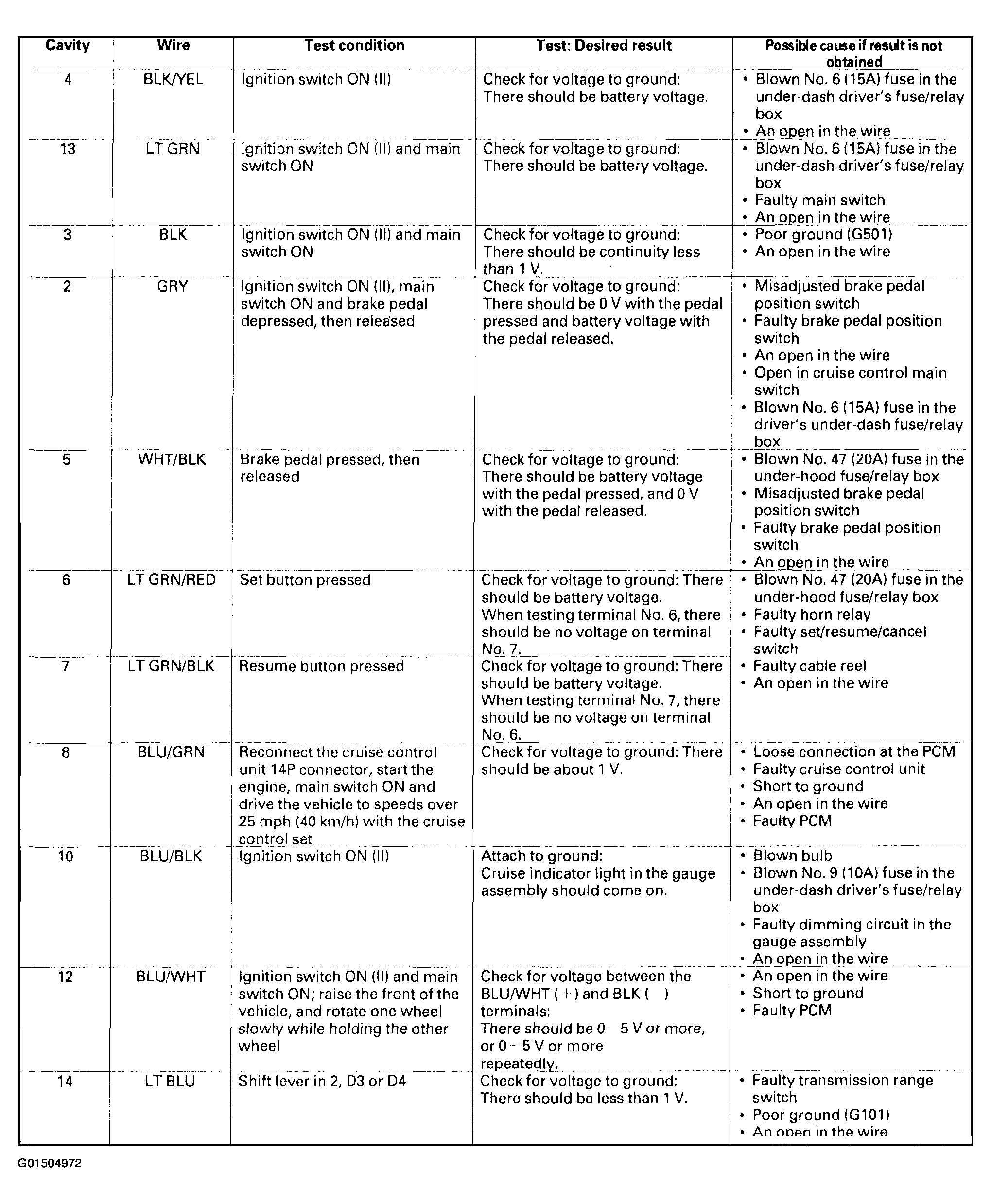

Reconnect the 14P connector, and make these input test:

Fig 3: Cruise Control Unit Input Test Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If any test indicates a problem, find and correct the cause, then recheck the system. If all the input tests prove OK, the cruise control unit may be faulty. Substitute a known-good cruise control unit and retest. If the system works properly, replace the cruise control unit.
