Symptom Troubleshooting Index

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The numbers in the table show the troubleshooting sequence.
Before troubleshooting.
- check that the speedometer works properly.
- check the No. 9 (10A) and No. 6 (15A) fuses in the driver's under-dash fuse/relay box, and No. 47 (20A) fuse in the under-hood fuse/relay box.
- check that the horn sounds.

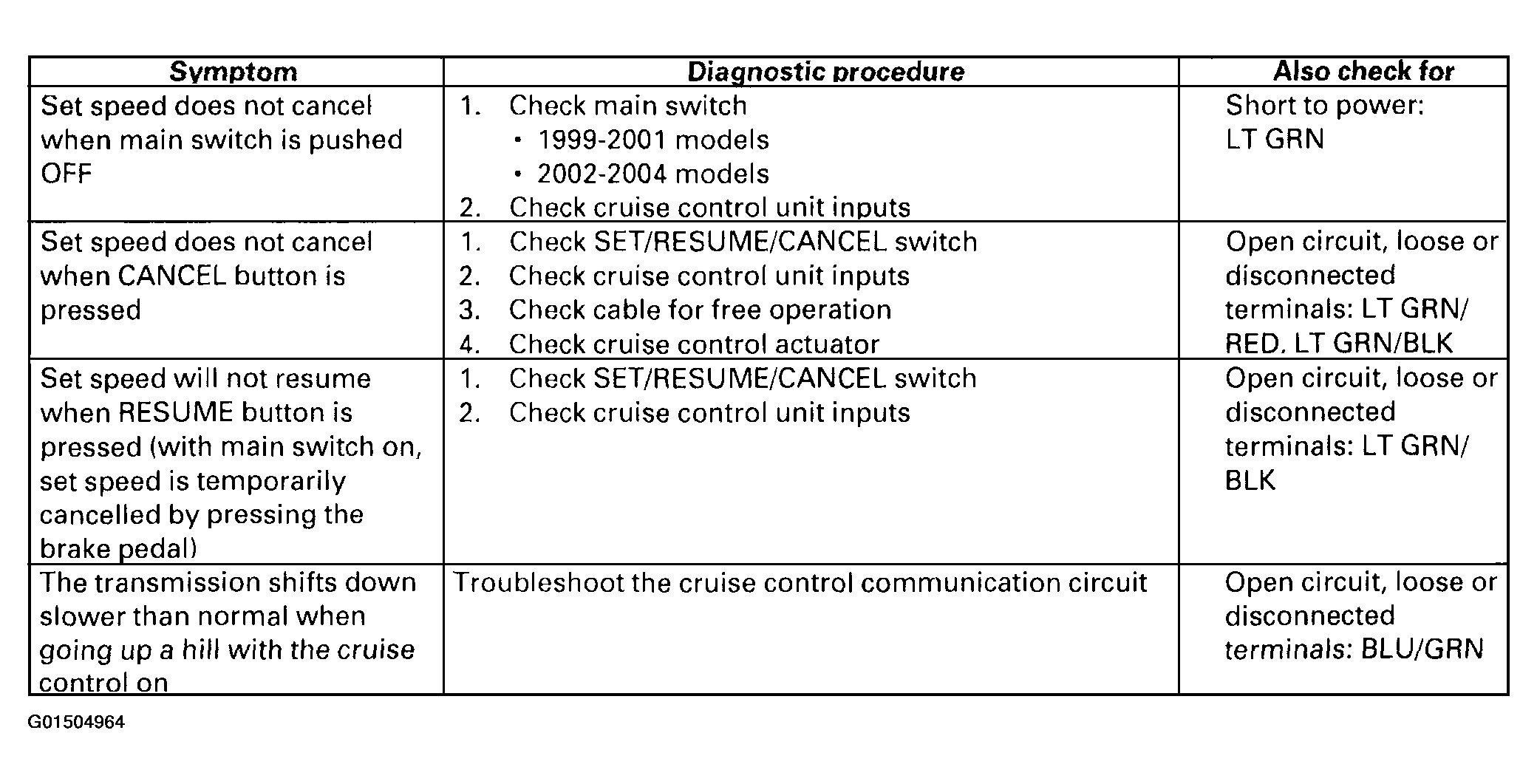

Fig 1: Symptom Troubleshooting Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Symptom Troubleshooting Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
