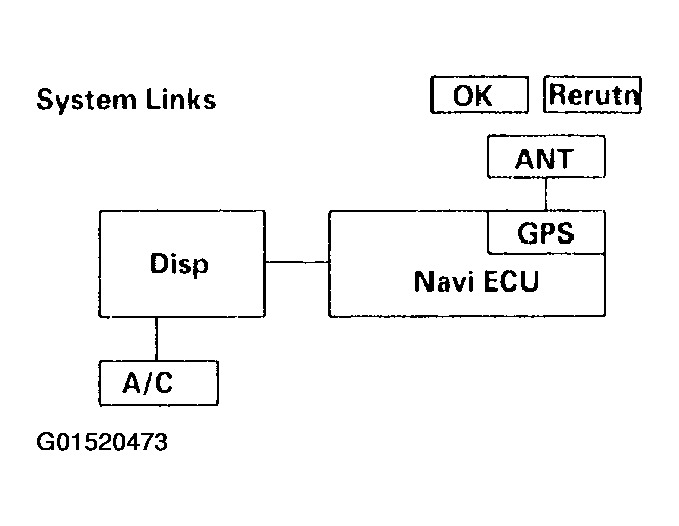

System Links
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
During diagnosis, all of the communication lines connecting the components are shown in yellow.
If the system is OK, all of the communication lines connecting the components will change to green, the screen will indicate "OK", and a tone will sound.
If there is a problem in the system, the faulty communication line will change to red, the screen will indicate "NG", and a tone will sound.
NOTE:
If the A/C link is red, refer to climate control manual switch troubleshooting (see MANUAL SWITCH (NAVIGATION SYSTEM DISPLAY) TROUBLESHOOTING
).
The indication on the screen will not change until the ignition switch is cycled. After repairing the system, turn the ignition switch OFF to reset the system, then return to the Diagnosis Menu screen, and run system Links again.
