Vehicle Speed Pulse (VSP) Sensor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the 3P connector (A) from the vehicle speed pulse (VSP) sensor (B).

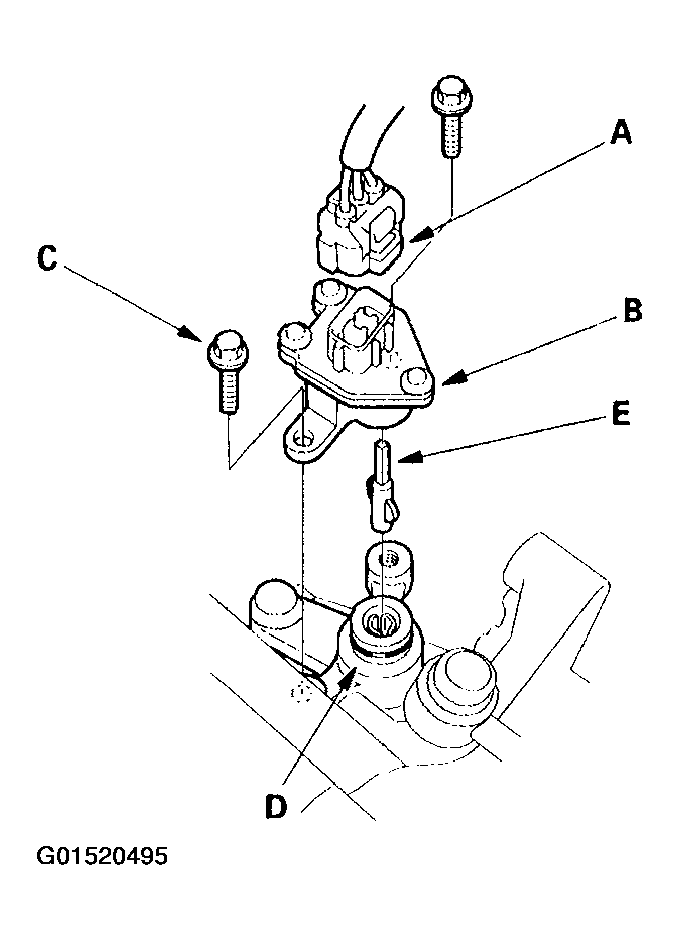

    Fig 1: Disconnecting 3P Connector From Vehicle Speed Sensor Pulse (VSP) Sensor
    G01520495Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the mounting bolt (C), then remove the VSP.
  3. Install the VSP. Lubricate the new O-ring (D) and the vehicle speed pulse (VSP) sensor joint (E) with grease before installing.
