In-car Temperature Sensor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dashboard lower cover (see DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screws and the in-car temperature sensor (A) from the dashboard lower cover (B).

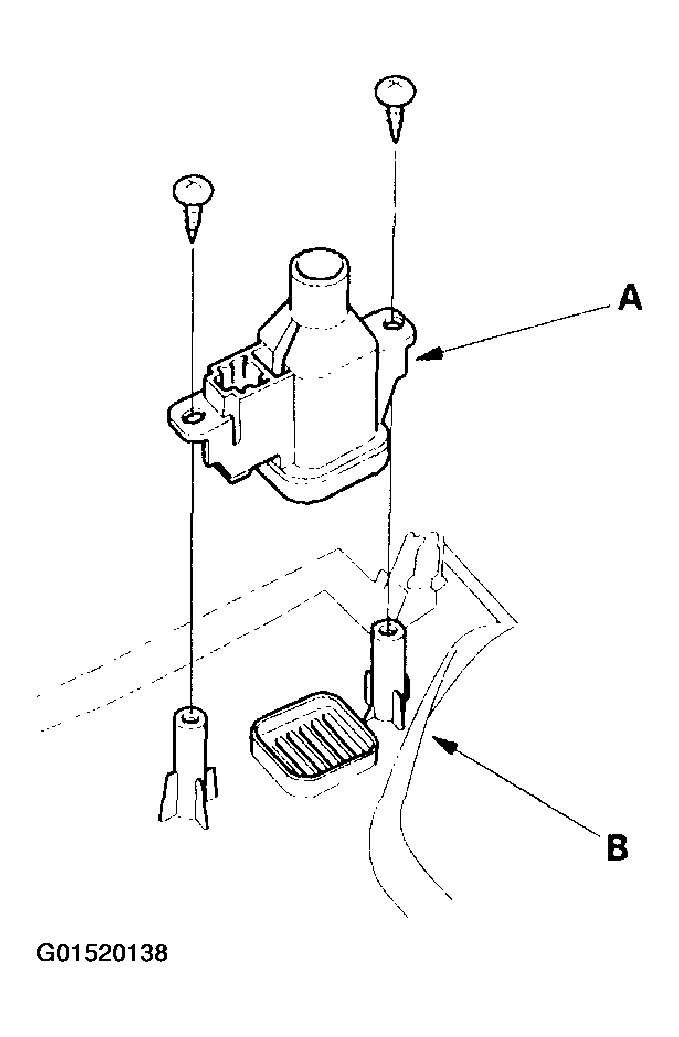

    Fig 1: Removing Self-Tapping Screws & In-Car temperature Sensor
    G01520138Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
