In-car Temperature Sensor Test.

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Check for a change in resistance by heating or cooling the sensor with a hair drier.

Compare the resistance reading between the No. 1 and No. 2 terminals of the in-car temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.

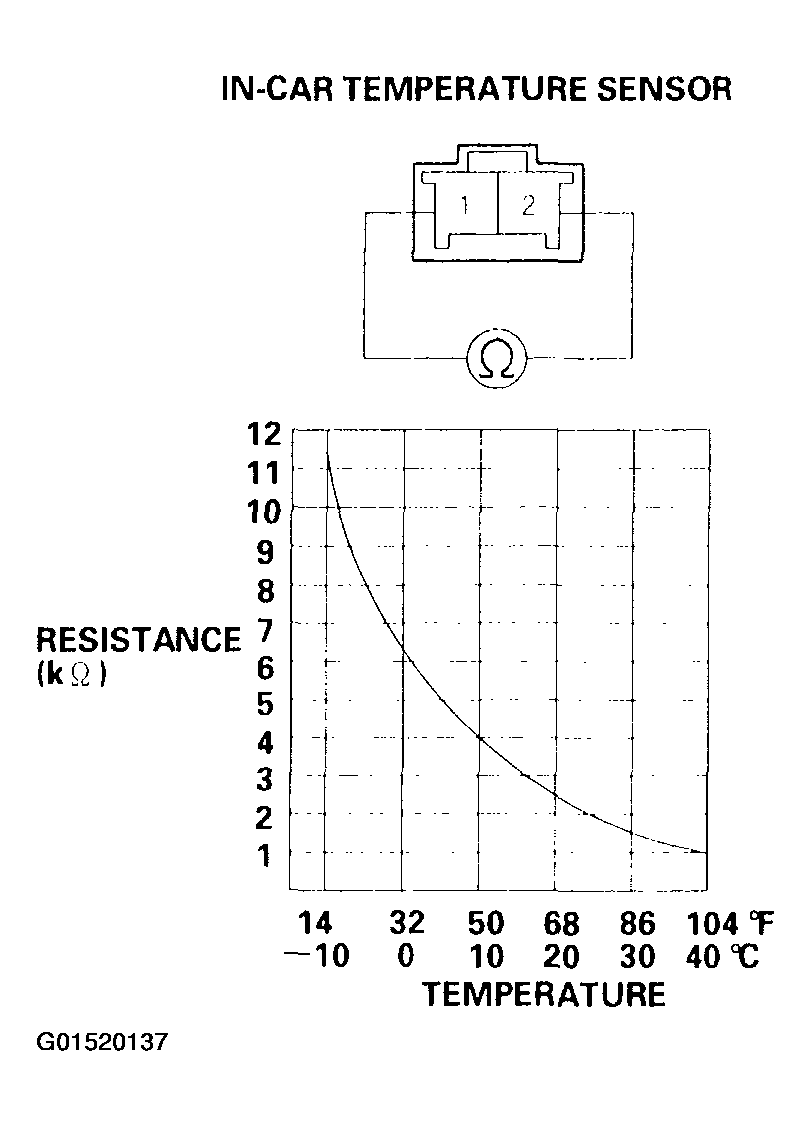

Fig 1: Comparing Resistance Reading Between No. 1 & No. 2 Terminals Of In-Car Temperature Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
