Outside Air Temperature Sensor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille (see FRONT GRILLE REPLACEMENT ).
  2. Disconnect the 2P connector (A) from the outside air temperature sensor (B). Lift the tab (C) to release the lock, and remove the outside air temperature sensor.

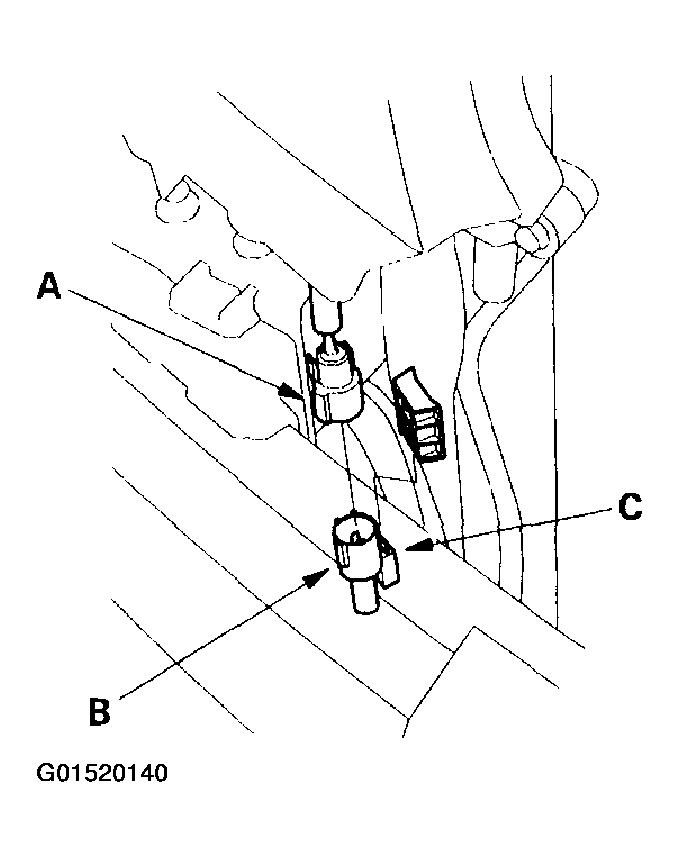

    Fig 1: Disconnecting 2P Connector
    G01520140Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal.
