Brake Hose Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before reassembling, check that all parts are free of dirt and other foreign particles.
Replace parts with new ones whenever specified to do so.
Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid gets on the paint, wash it off immediately with water.
To prevent dripping, cover disconnected line joints with rags or shop towels.

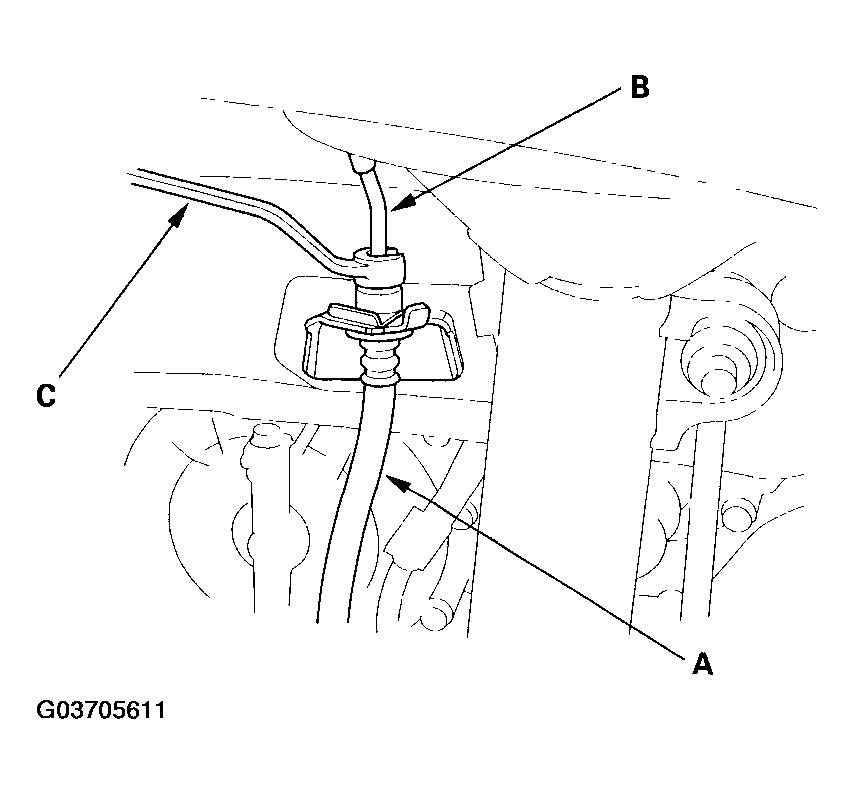

Replace the brake hose (A) if the hose is twisted, cracked, or if it leaks.

Fig 1: Replacing Brake Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the brake hose from the brake line (B) using a 10 mm flare-nut wrench (C).

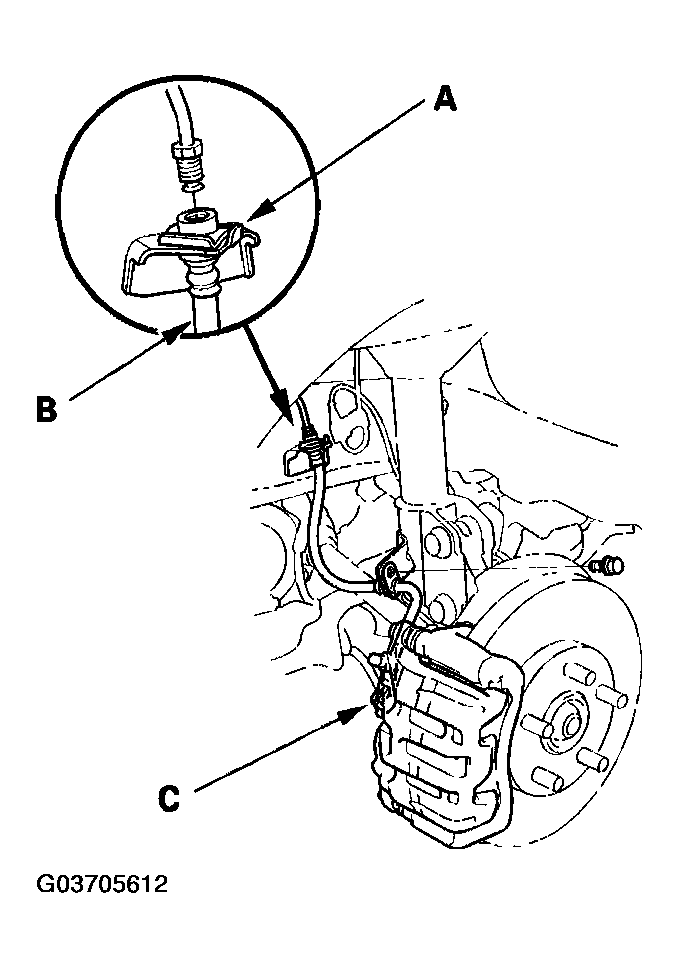

Remove and discard the brake hose clip (A) from the brake hose (B).

Fig 2: Removing And Discarding Brake Hose Clip From Brake Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the banjo bolt (C), and disconnect the brake hose from the caliper.
Remove the brake hose from the damper bracket.

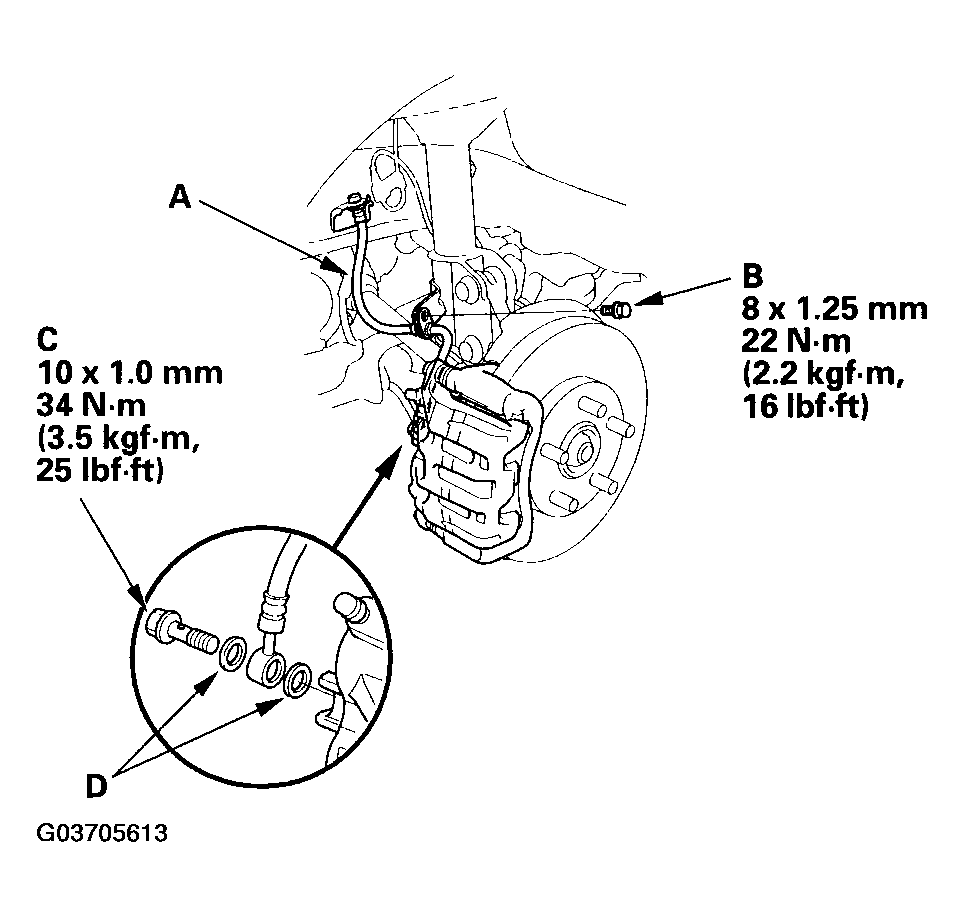

Install the brake hose (A) on the damper bracket with flange bolt (B) first, then connect the brake hose to the caliper with the banjo bolt (C) and new sealing washers (D).

Fig 3: Installing Brake Hose On Damper Bracket With Flange Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

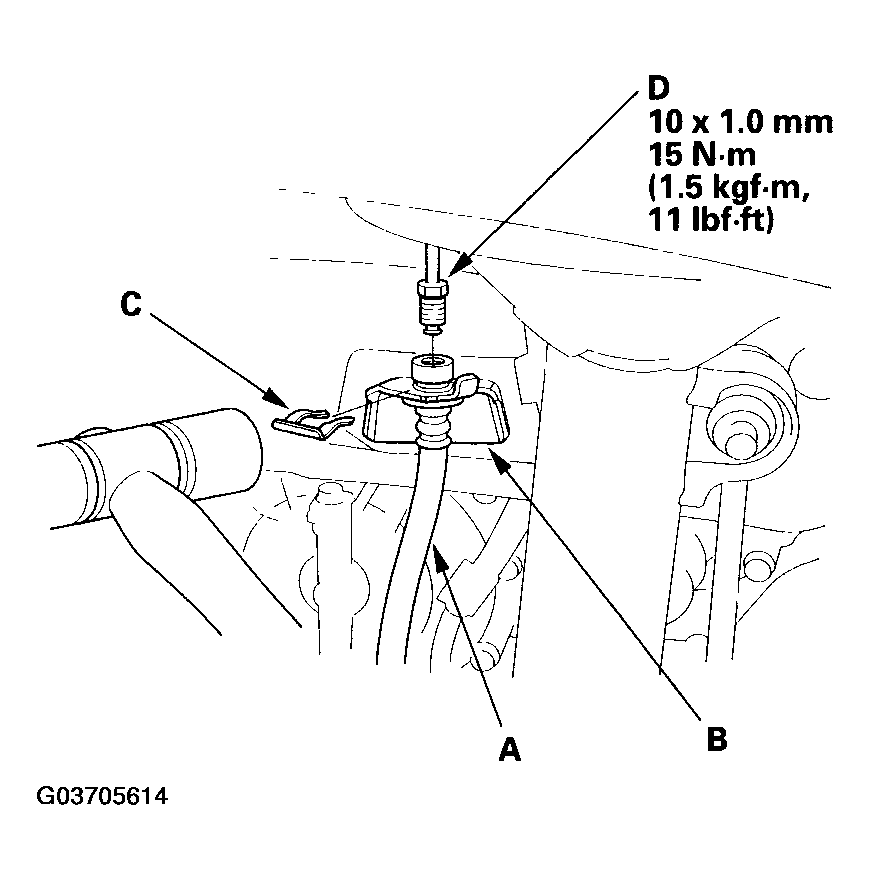

Install the brake hose (A) on the upper brake hose bracket (B) with a new brake hose clip (C).

Fig 4: Installing Brake Hose On Upper Brake Hose Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the brake line (D) to the brake hose.
After installing the brake hose, bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the following checks:
- Check the brake hose and line joint for leaks, and tighten if necessary.
- Check the brake hoses for interference and twisting.
