Power Adjustable Pedals Switch Test and Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

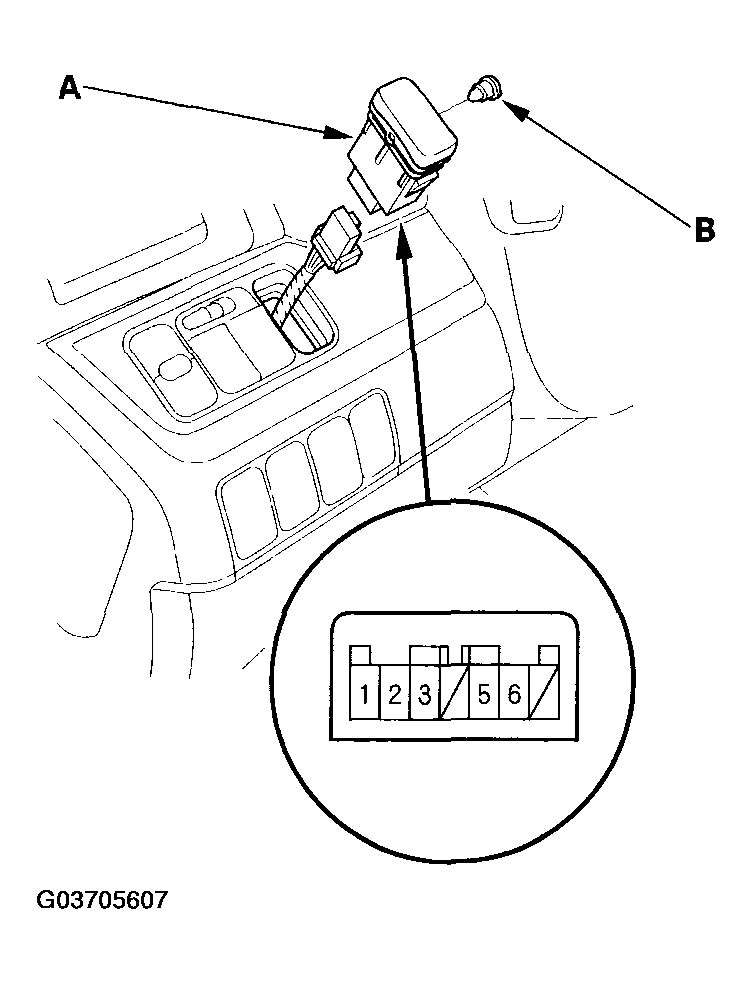

Carefully push out the power adjustable pedals switch (A) and disconnect the 7P connector from the switch.

Fig 1: Pushing Power Adjustable Pedal Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each pedal position according to the table shown in Fig 2 . If there is no continuity, replace the power adjustable pedals switch or the bulb (B).

Fig 2: Checking Continuity Between Terminal In Each Pedal Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
