A/C Control Panel Bulb Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge the static electricity (which accumulated on you when you removed the A/C control panel) by touching the door striker or other body parts.
  2. Remove the self-tapping screws, then carefully separate the A/C control panel display (A) from the control panel (B). Do not kink or pull on the wires between the display and the control panel. Do not touch the electronic components on the printed circuit board in the control panel.

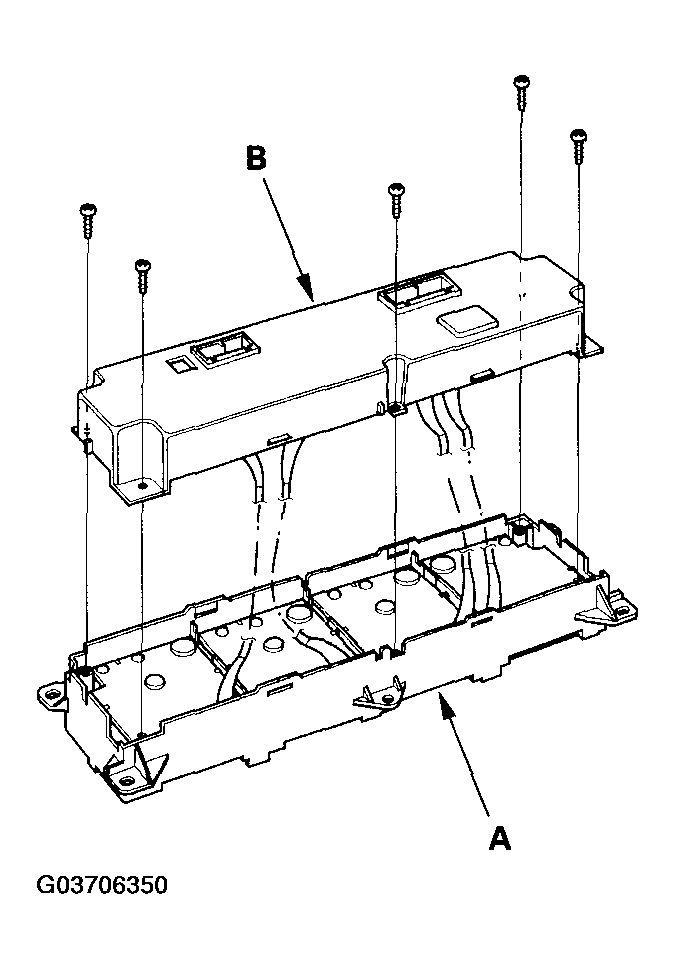

    Fig 1: Separating A/C Control Panel Display From Control Panel
    G03706350Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bulb(s) with a flat-tip screwdriver.
    Fig 2: Removing Bulb(s) With Flat-Tip Screwdriver
    G03706351Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the bulb(s) in the reverse order of removal.
