Mode Control Motor Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box housing (see LOWER GLOVE BOX REMOVAL/INSTALLATION ).
Disconnect the 7P connector (A) from the mode control motor (B). Remove the self-tapping screws and the mode control motor from the heater unit.

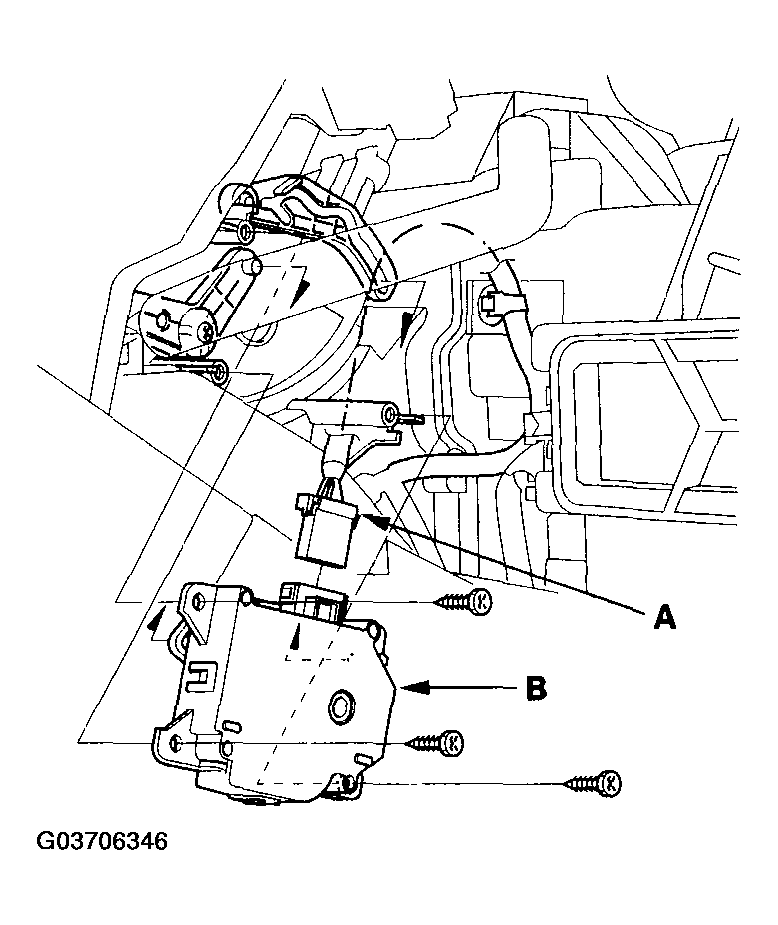

Fig 1: Disconnecting 7P Connector From Mode Control Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
