Circuit Diagram-without Defogger

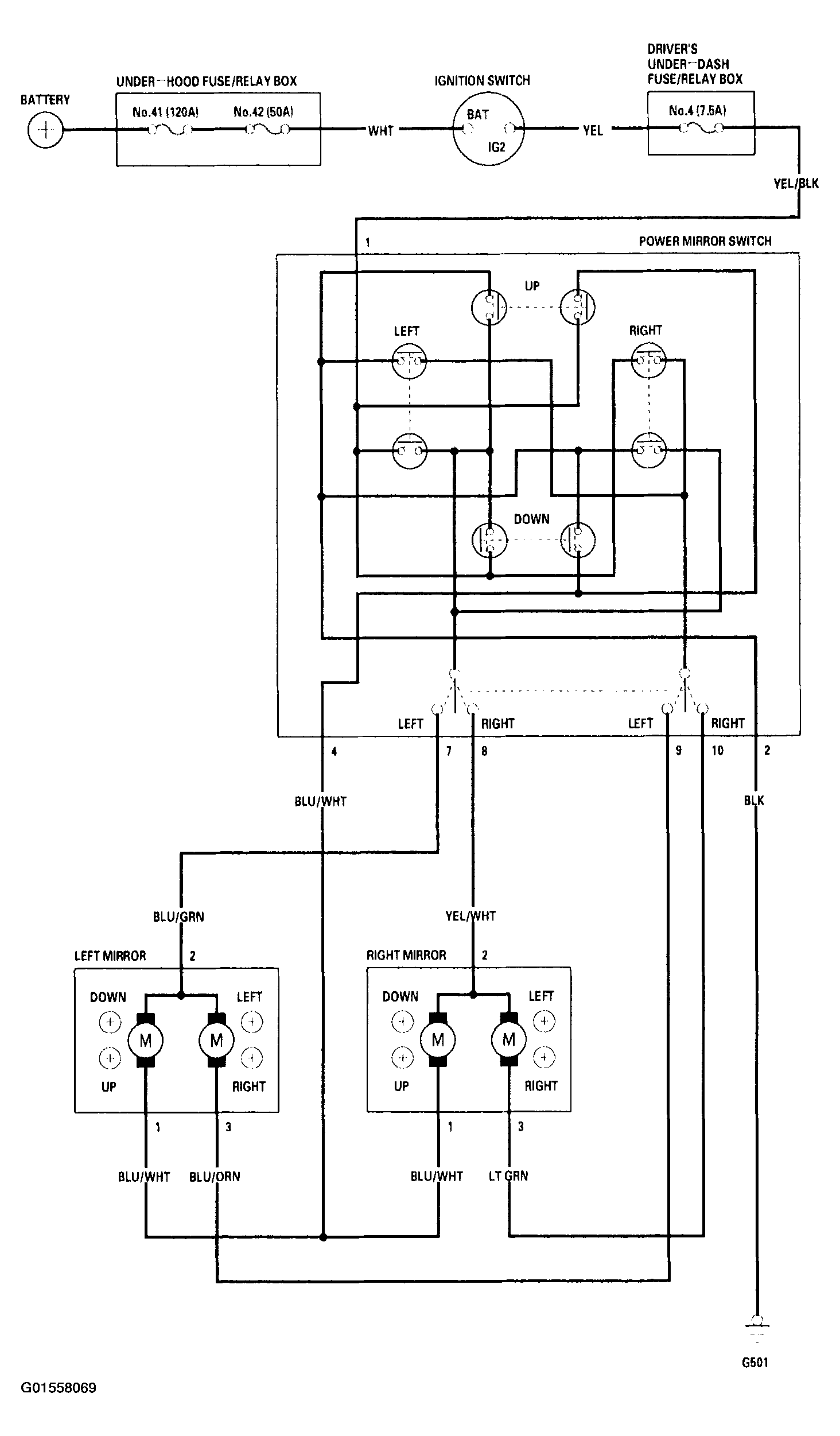

Fig 1: Power Mirror Circuit Diagram (Without Defogger)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
