Procedures

Subframe Replacement

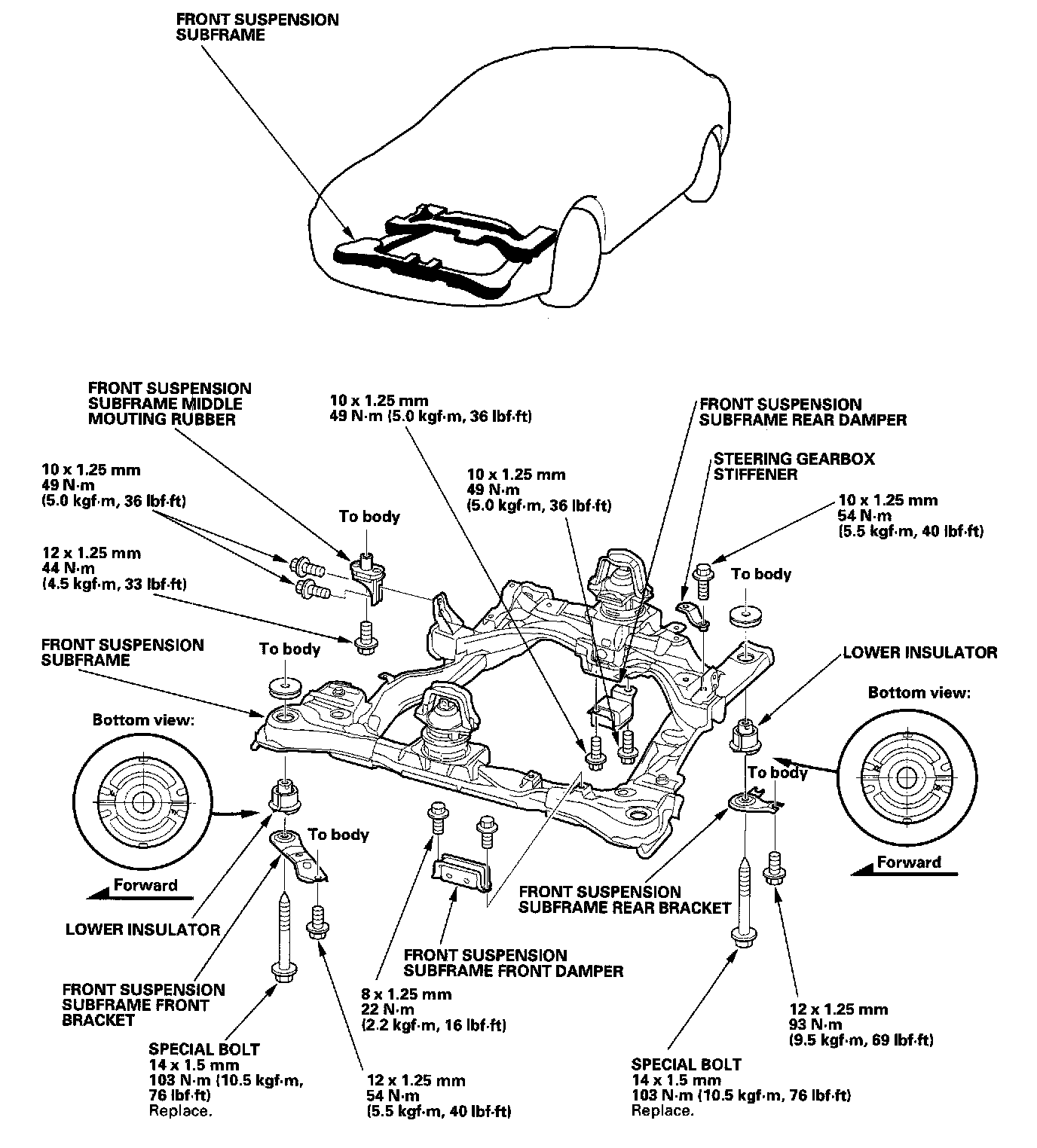

Front Subframe Torque




After removing the subframe mounting bolts, be sure to replace them with new ones.

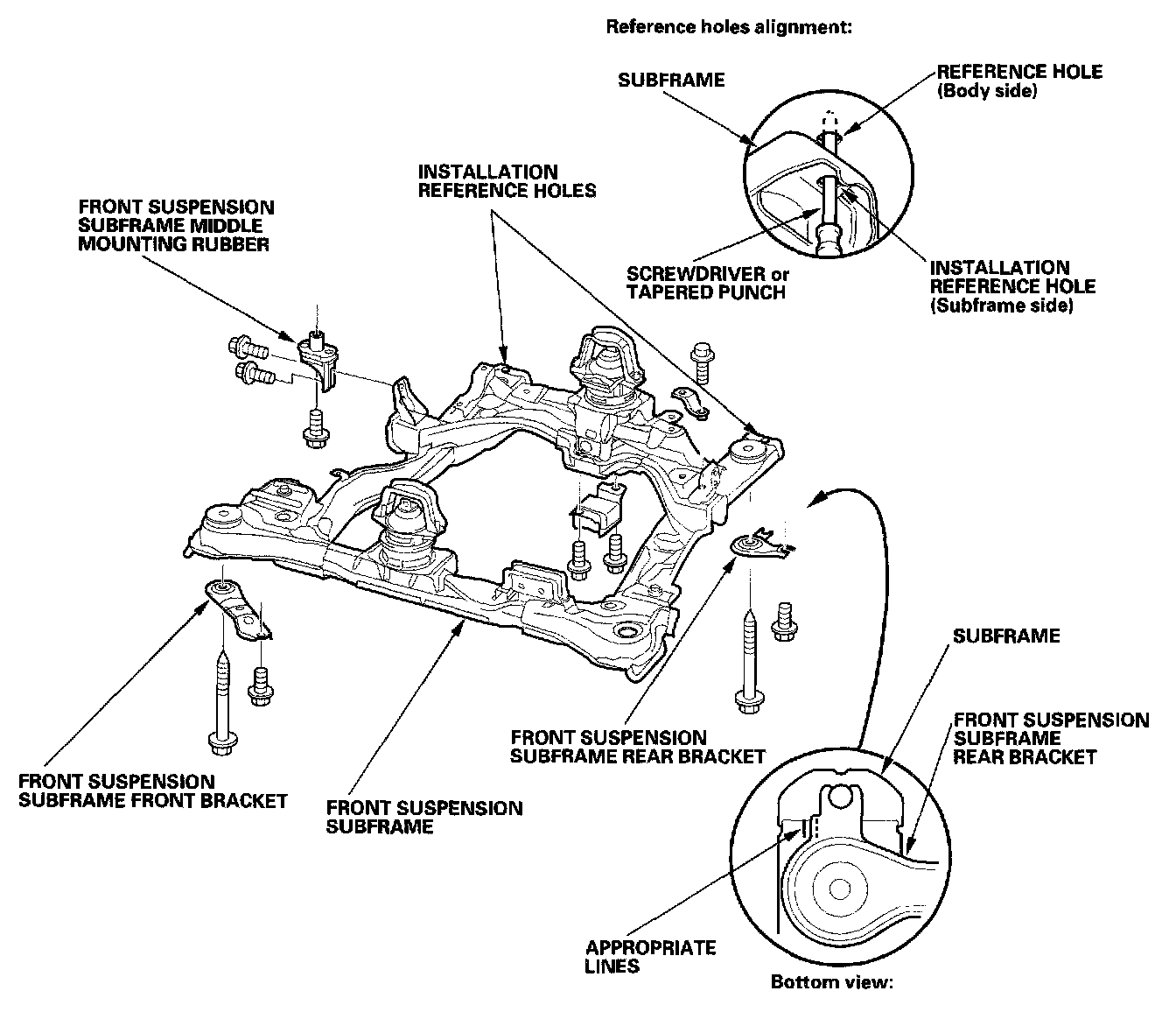

Front Subframe Alignment

NOTE:
- Before removing the subframe, make the appropriate lines where the subframe that line up with the edge of the rear bracket for reinstallation.
- When installing, align both installation reference holes in the subframe with both reference holes in the body using a screwdriver or tapered punch as a guide.
- After mounting the subframe and brackets loosely, align the reference marks with the edge of the rear brackets then tighten each bolts.

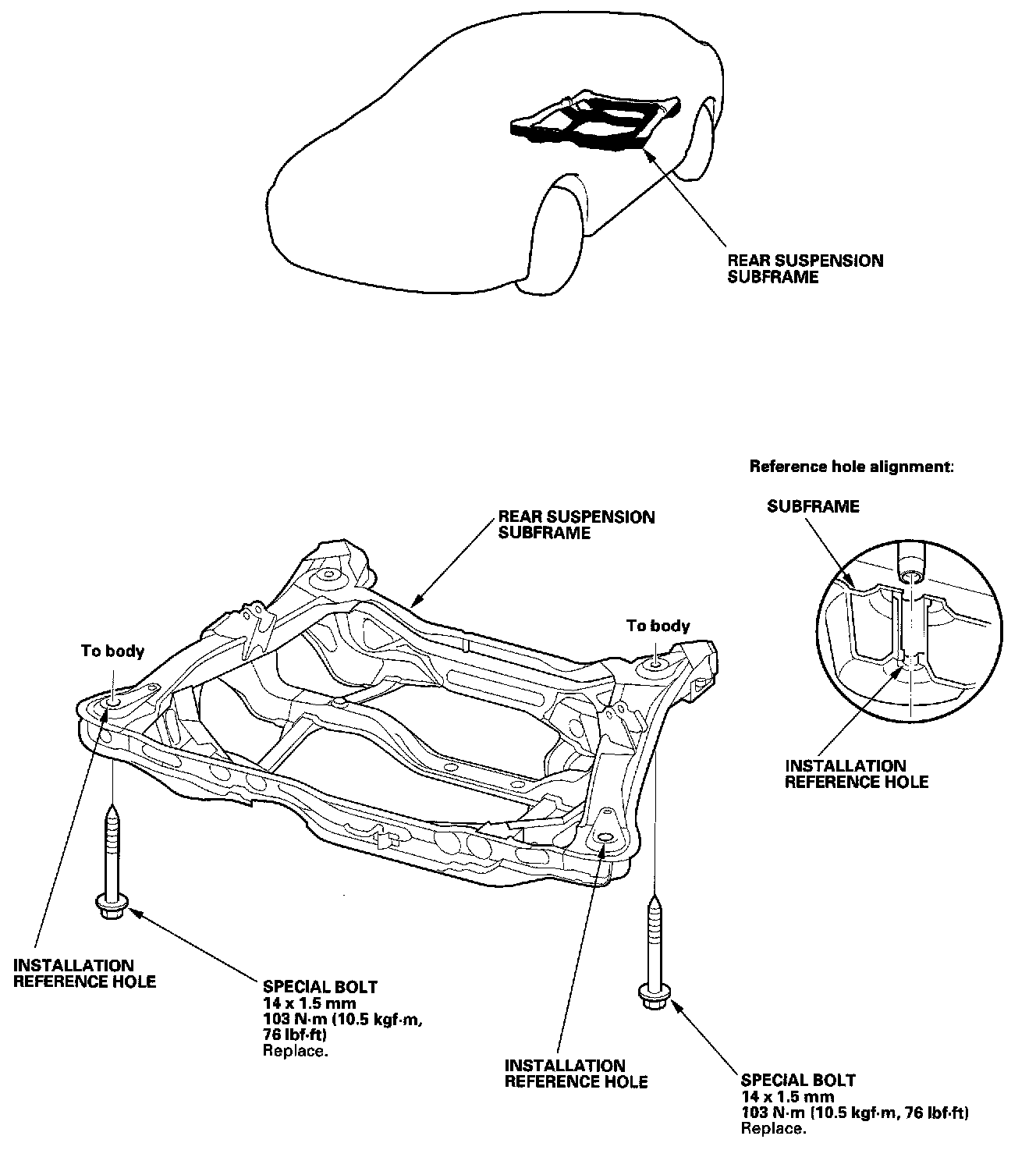

Rear Subframe Torque




After removing the subframe mounting bolts, be sure to replace them with new ones.
