Cruise Control Servo: Service and Repair

Cruise Control Actuator/Cable Replacement

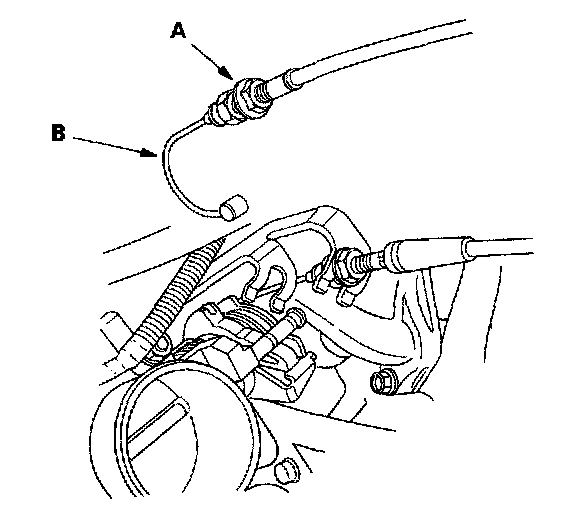

1. Loosen the locknut (A), then remove the cruise control cable (B) from the throttle linkage.

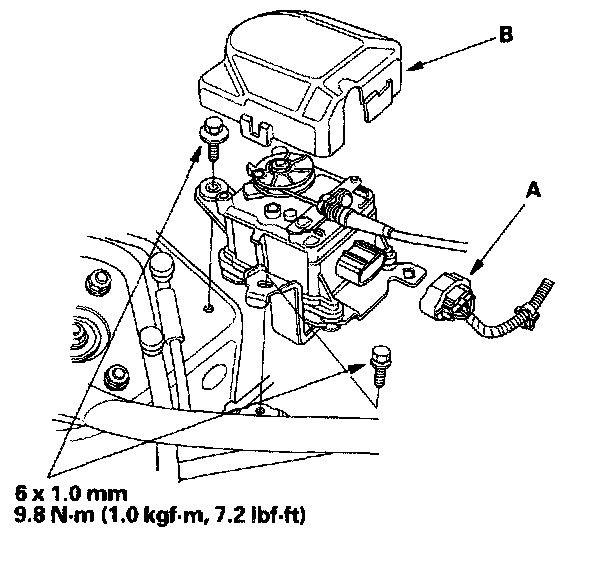

2. Disconnect the 4P connector (A), and remove the actuator cover (B), then remove the bolts securing the actuator.

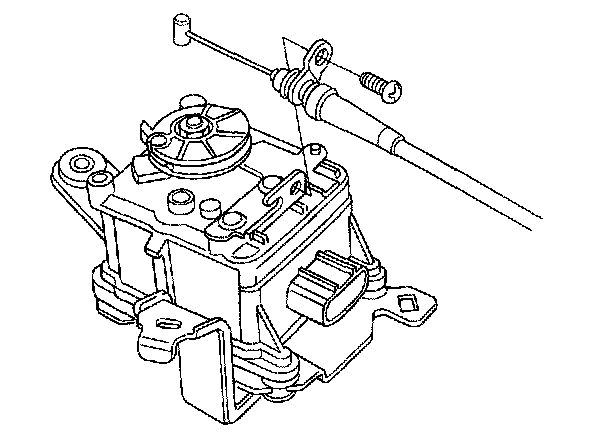

3. Remove the actuator cable from the actuator.
4. Install in the reverse order of removal, and adjust the free play at the throttle linkage after connecting the cruise control cable.
