Wheel Speed Sensor

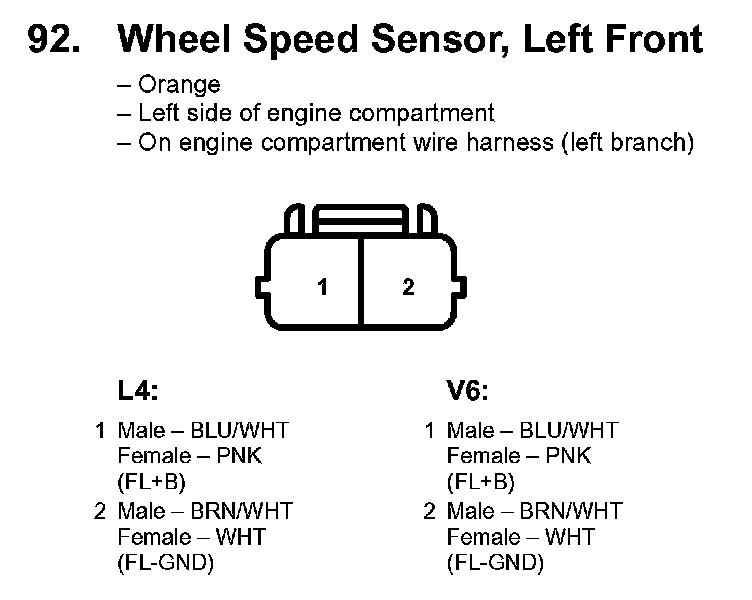

92. Wheel Speed Sensor, Left Front:

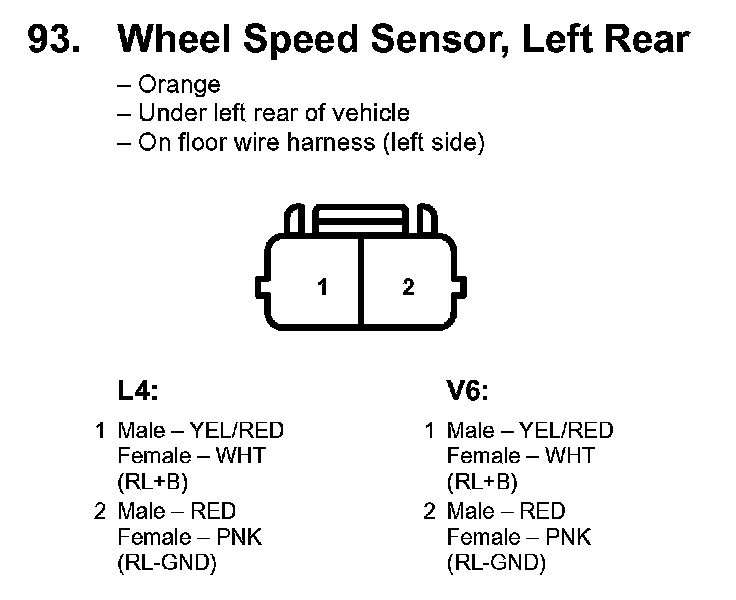

93. Wheel Speed Sensor, Left Rear:

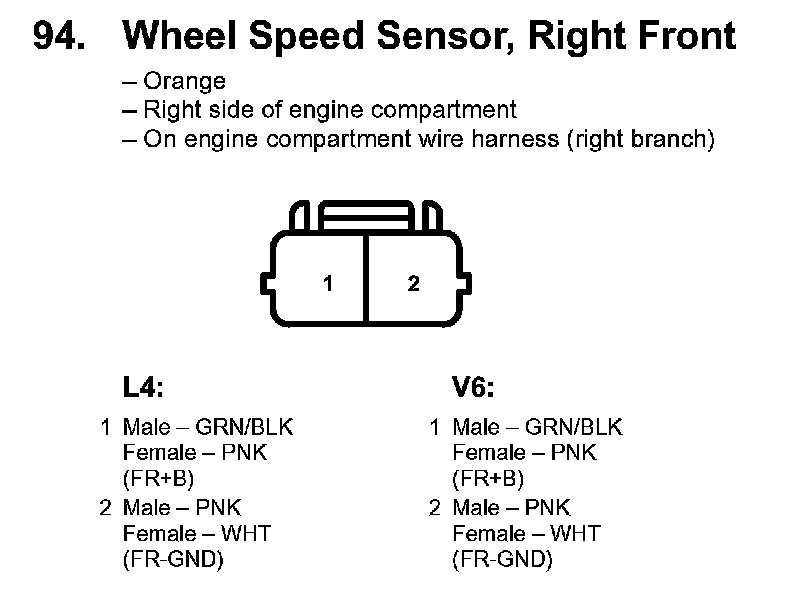

94. Wheel Speed Sensor, Right Front:

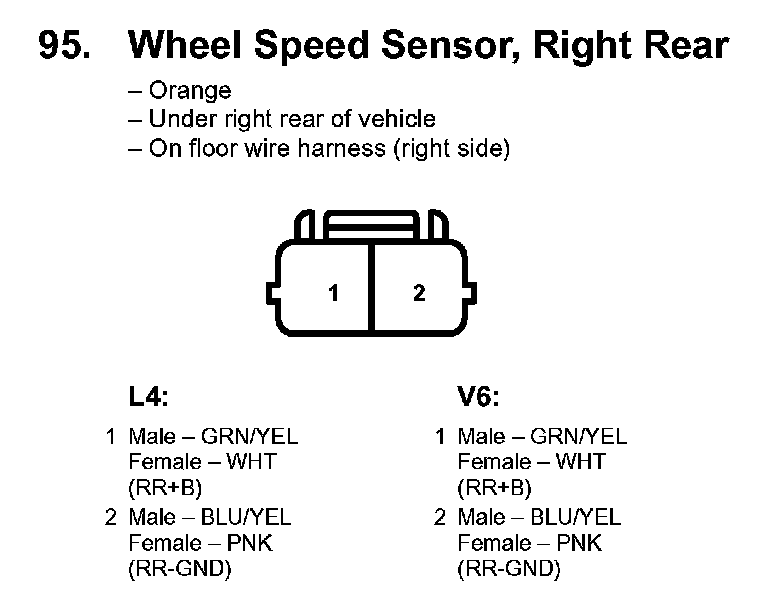

95. Wheel Speed Sensor, Right Rear:
