Master Switch Replacement

Master Switch Replacement

1. Carefully pry off the driver's door switch trim.

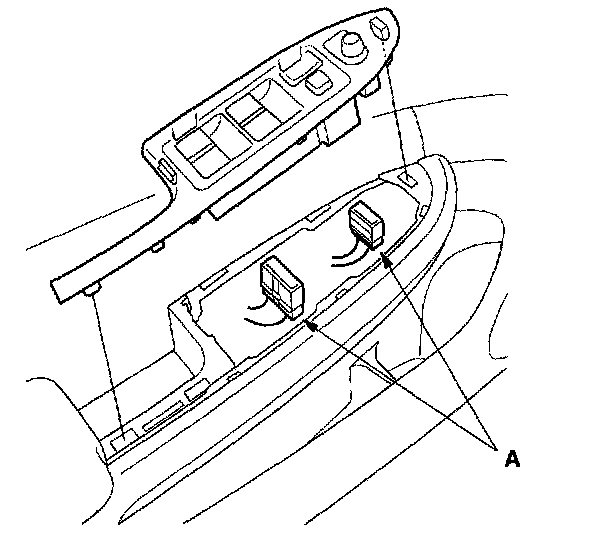

2. Disconnect the power mirror and power window switch connectors (A).

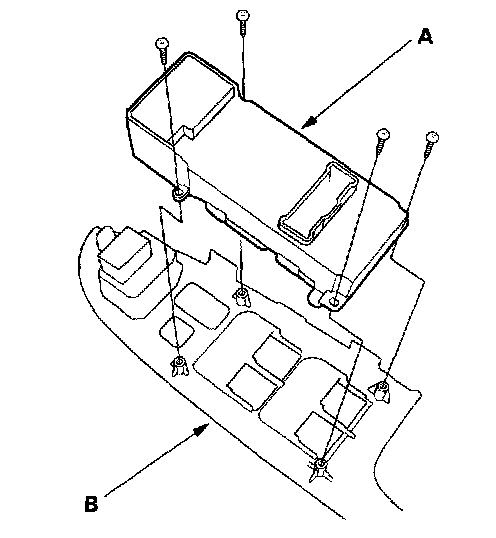

3. Remove the four mounting screws, then remove the master switch (A) from the panel (B).
4. Reinstall the switch in reverse order of removal.
5. Reset the power window control unit.
6. For LX and EX models; reprogram the keyless remotes.
