Multiple Junction Connector

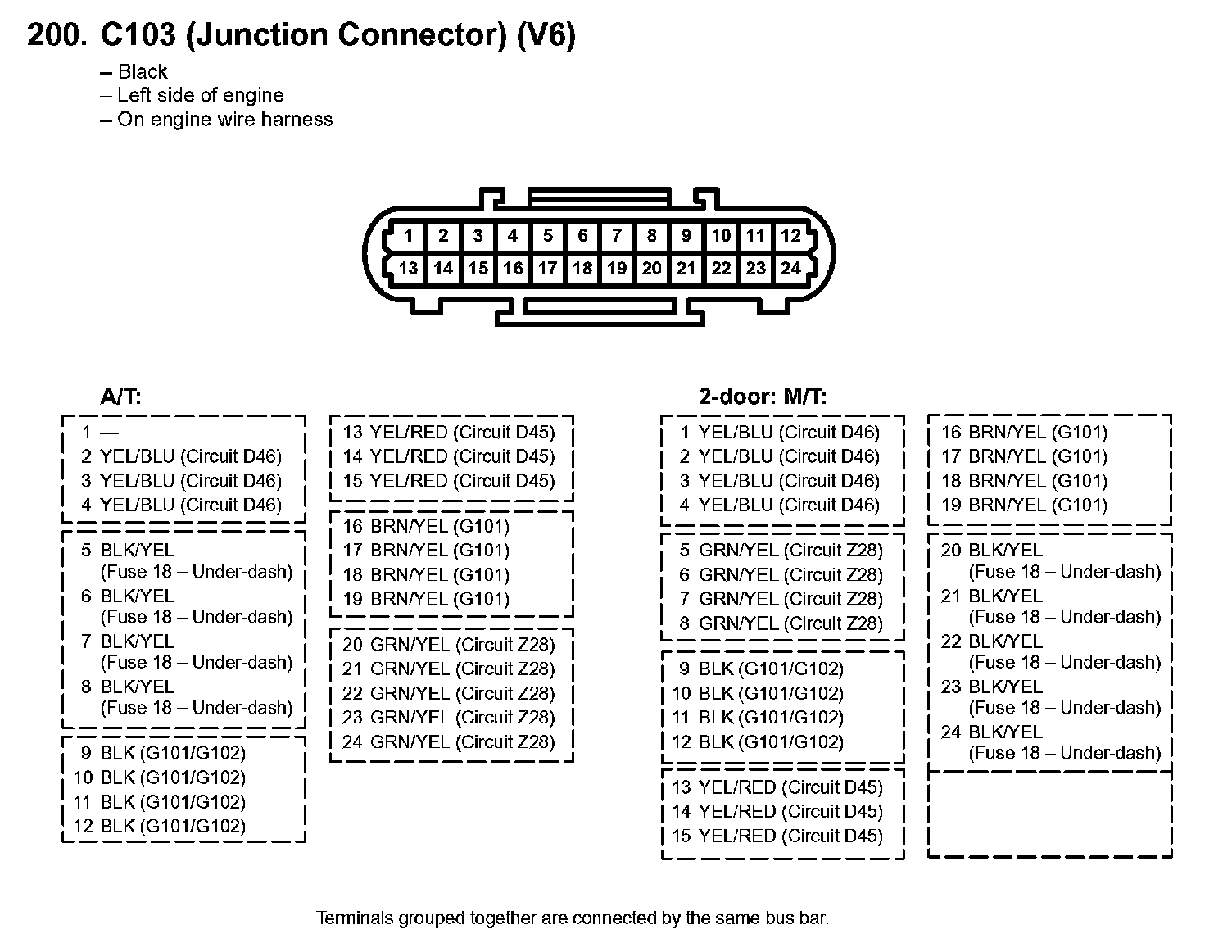

200. C103 (Junction Connector):



209. C404 (Junction Connector):



210. C405 (Junction Connector):



211. C406 (Junction Connector):



212. C554 (Junction Connector):



213. C555 (Junction Connector):



214. C556 (Junction Connector):



215. C557 (Junction Connector):

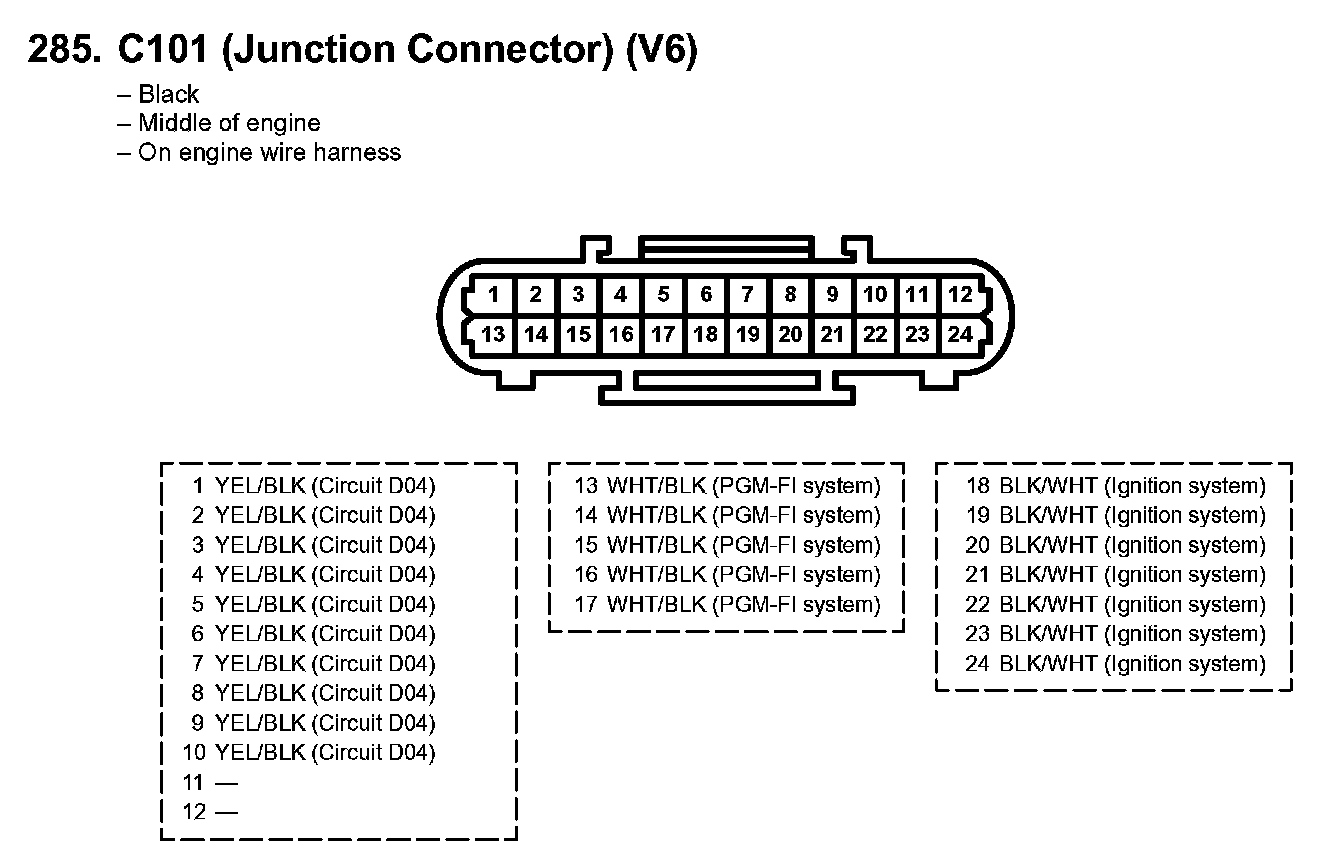

285. C101 (Junction Connector):
