CMP Sensor A Replacement

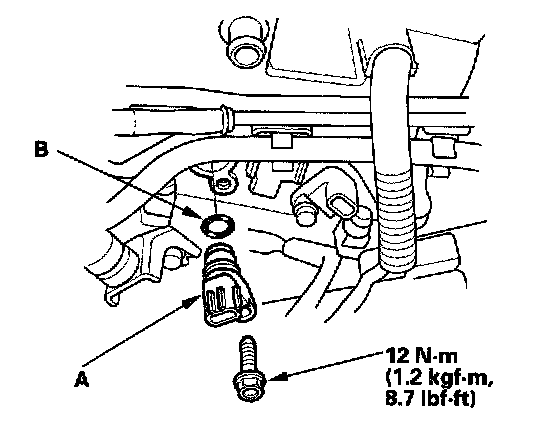

CMP Sensor A Replacement1. Remove the air cleaner.
2. Disconnect the CMP sensor A 3P connector.
3. Remove the CMP sensor A (A).
4. Install the sensor in the reverse order of removal with a new O-ring (B).
1. Remove the air cleaner.
2. Disconnect the CMP sensor A 3P connector.
3. Remove the CMP sensor A (A).
4. Install the sensor in the reverse order of removal with a new O-ring (B).
