CMP Sensor B (TDC Sensor) Replacement

CMP Sensor B (TDC Sensor) Replacement

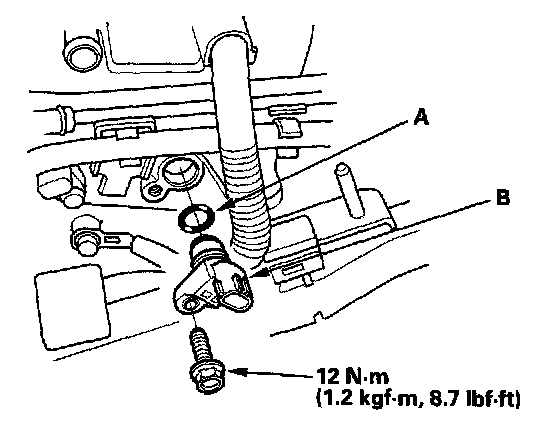

1. Remove the air cleaner.
2. Disconnect the CMP sensor B (TDC sensor) 3P connector.




3. Remove CMP sensor B (TDC sensor).
4. Install the sensor in the reverse order of removal with a new O-ring (A).
