A/T Transfer Assembly: Reassembly

Special Tools Required

• Driver 40 mm I.D. 07746-0030100
• Attachment, 35 mm I.D. 07746-0030400
• Driver 07749-0010000
• Oil seal driver attachment 07JAD-PH80101
• Companion flange holder 07RAB-TB4010A or 07RAB-TB4010B
• Holder handle 07JAB-001020A
• Attachment, 62 x 68 mm 07746-0010500

1. Select the 35 mm thrust shim if the transfer output shaft is replaced. Calculate the thickness of the 35 mm thrust shim using the formula below, and select the shim from the table.
   NOTE: The number on the transfer output shaft is shown in 1/100 mm.

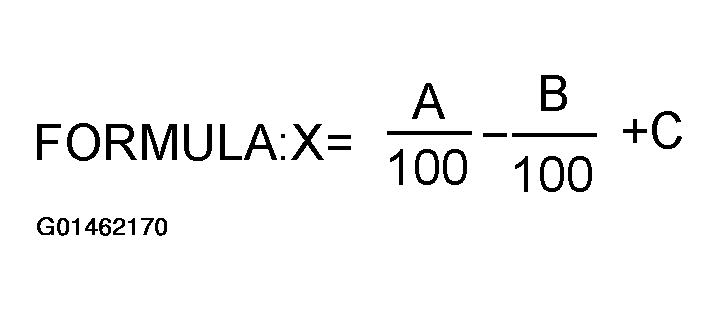

   Fig 1: Identifying 35 mm Thrust Shim Thickness Formula

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   A:  Number on the existing transfer output shaft

   B:  Number on the replacement transfer output shaft

   C:  Thickness of the existing 35 mm thrust shim

   X:  Thickness needed for the replacement 35 mm thrust shim

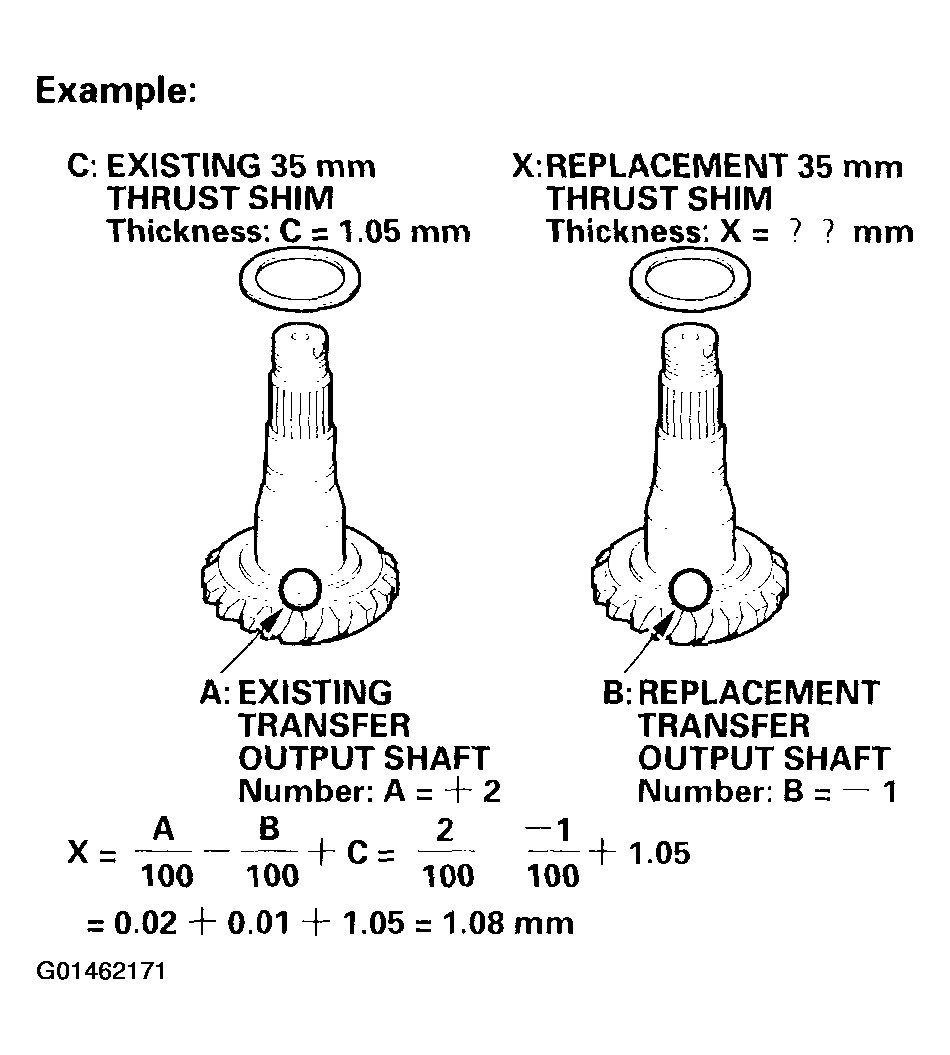

   Fig 2: Calculating 35mm Shim Thickness

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Select No. M 35 mm thrust shim of 1.08 mm in this cause.

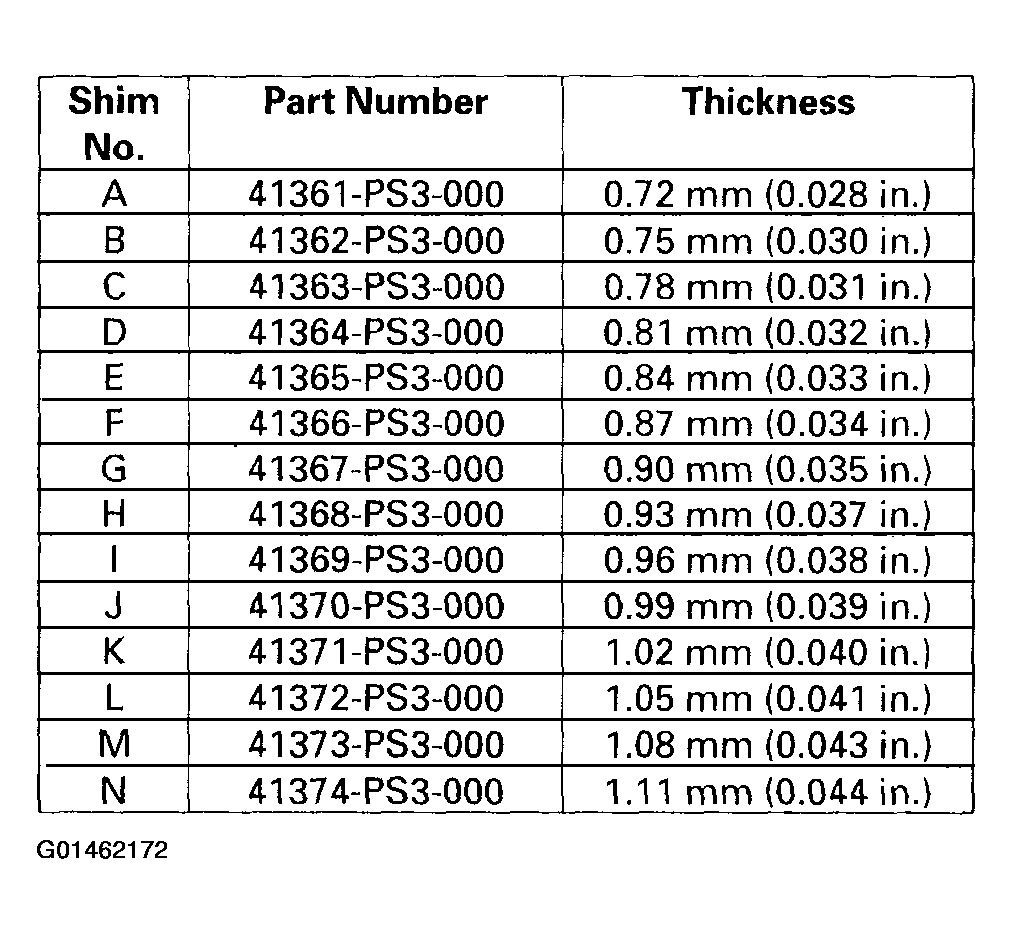

   Fig 3: Thrust Shim (35 mm) Specification Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Select the 35 mm thrust shim if the tapered roller bearing on the transfer output shaft is replaced. Measure the thickness of the replacement bearing and the existing bearing, and calculate the difference of the bearing, thickness. Adjust the thickness of the existing 35 mm thrust shim by the amount of the difference in bearing thickness, and select the replacement 35 mm thrust shim from the table.

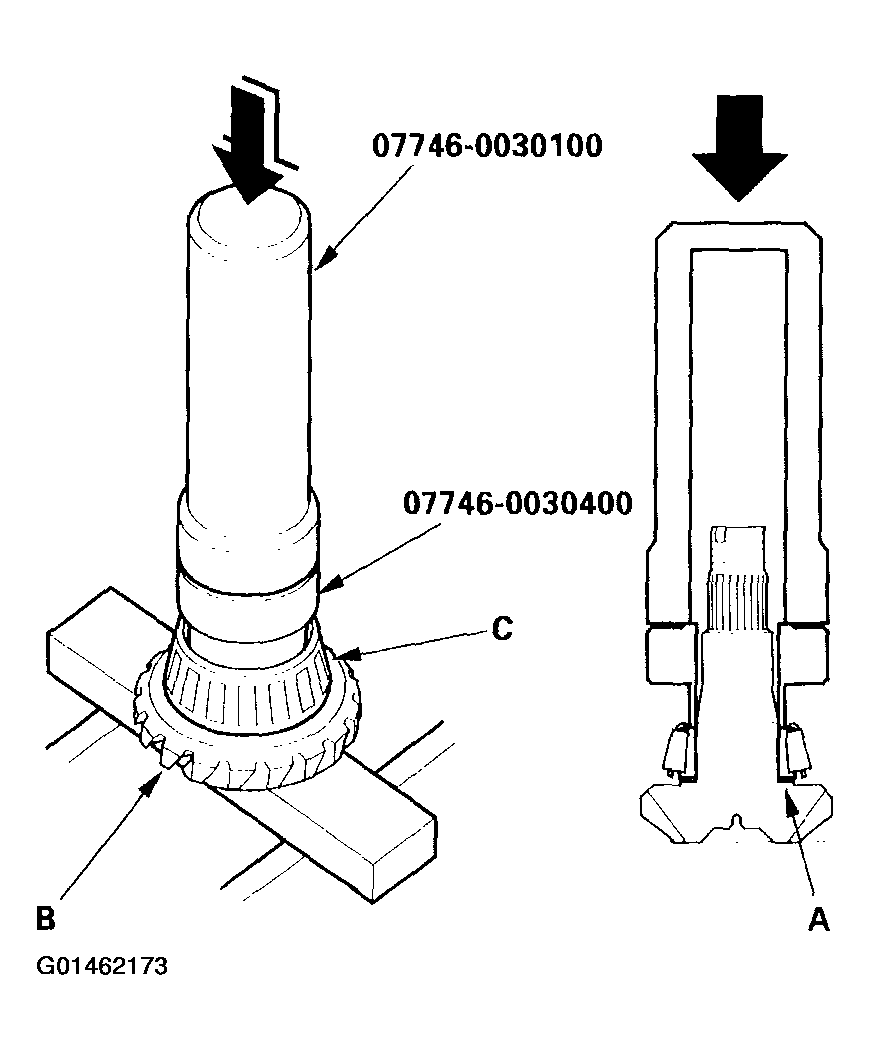

3. Install the 35 mm thrust shim (A) on the transfer output shaft (B), then install the tapered roller bearing (C) with the special tools and a press.
   Fig 4: Installing 35 mm Thrust Shim & Tapered Roller Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

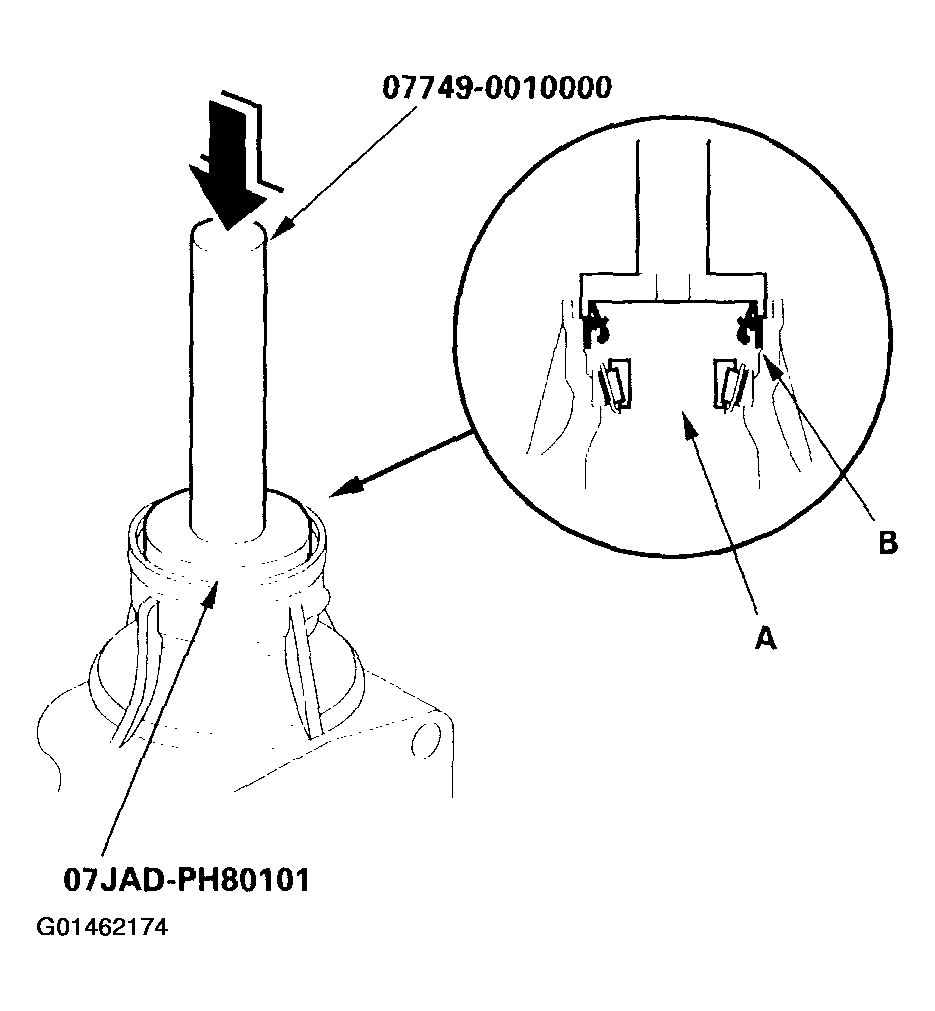

4. Place the tapered roller bearing (A) on the bearing outer race of the companion flange side of the transfer housing.
   Fig 5: Placing Tapered Roller Bearing On The Bearing Outer Race

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the new oil seal (B) on the transfer housing with the special tools and a press.

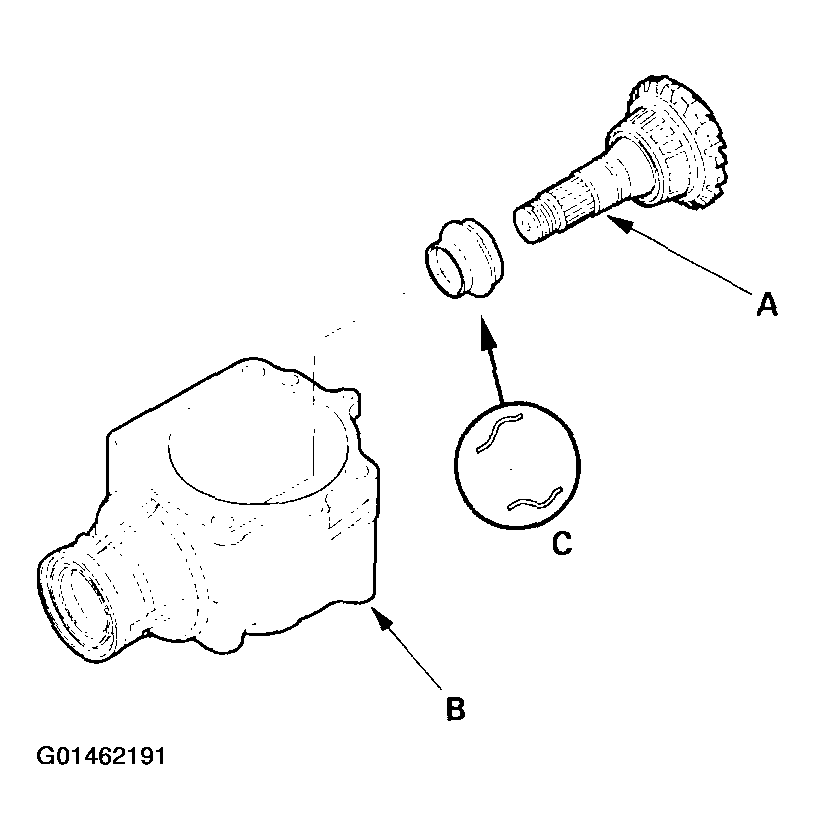

6. Install the transfer output shaft (A) in the transfer housing (B). Do not install the transfer spacer on the transfer output shaft.
   Fig 6: Installing Transfer Output Shaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

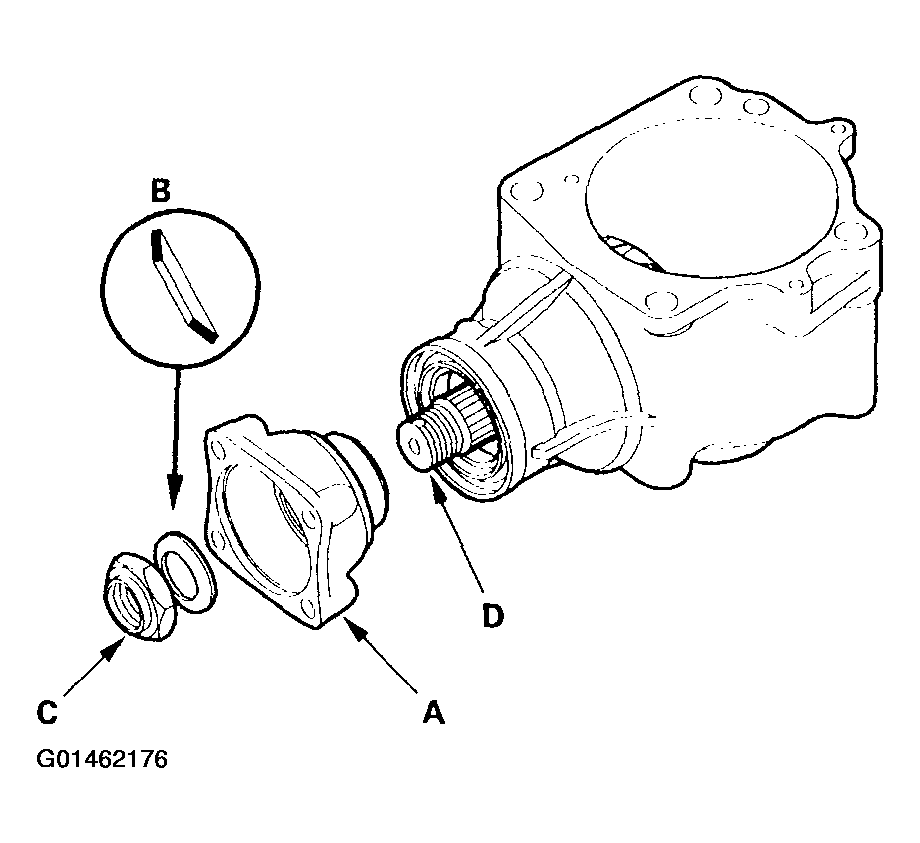

7. Install the companion flange (A), conical spring washer (B), and locknut (C) on the transfer output shaft (D). Do not install the O-ring and back-up ring.
   Fig 7: Installing Companion Flange, Conical Spring Washer, & Locknut On Transfer Output Shaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

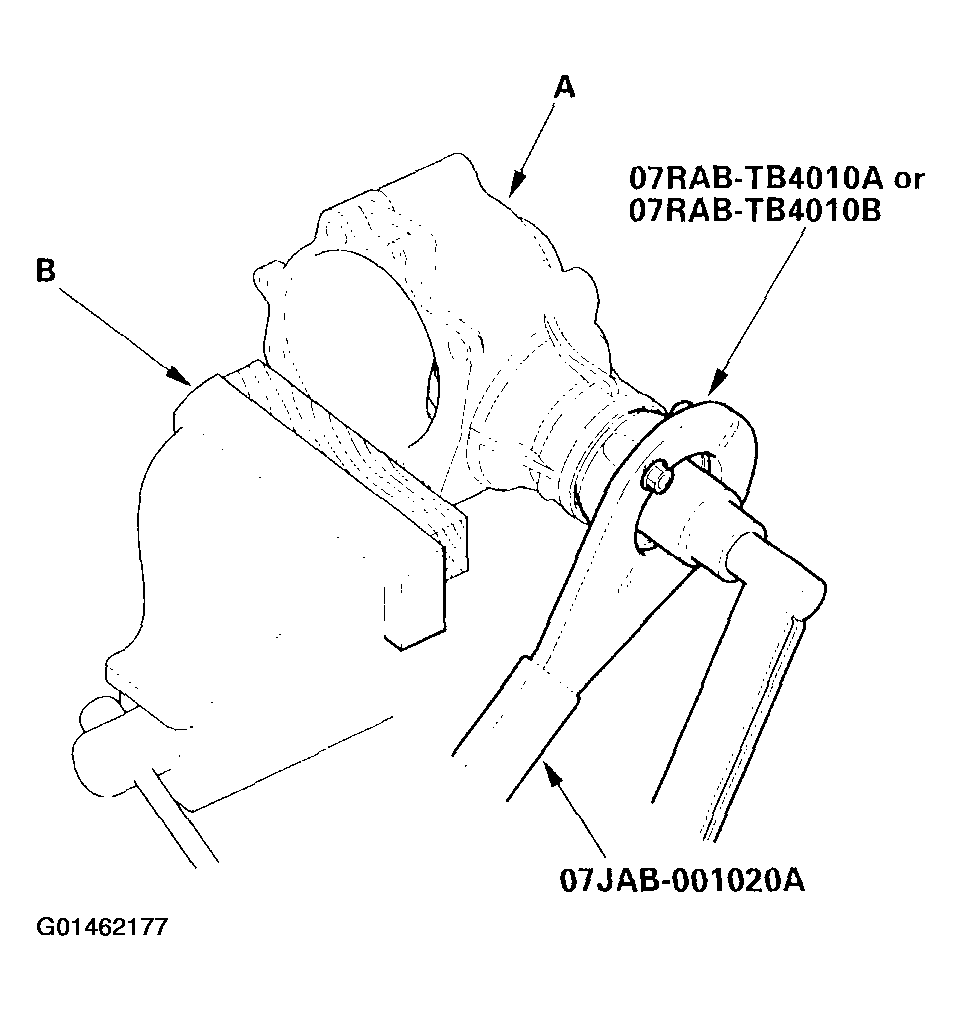

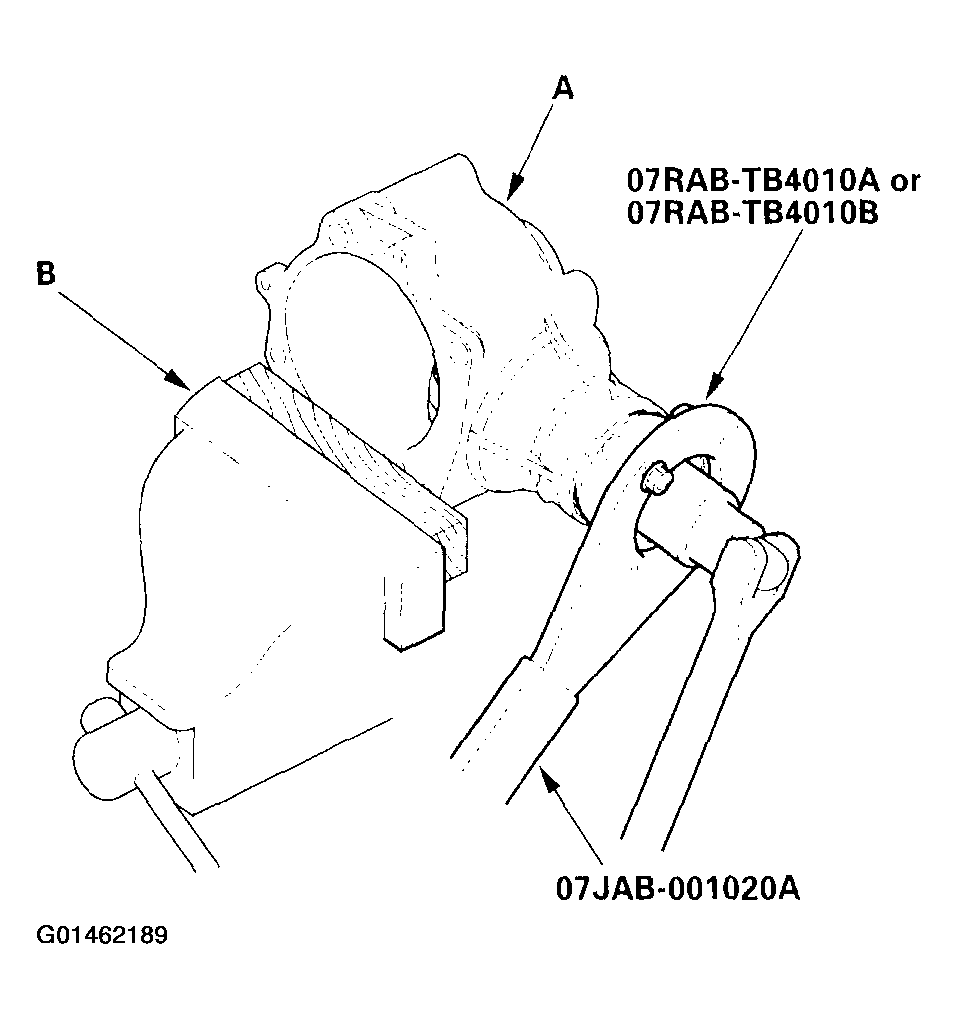

8. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.
   Fig 8: Securing Transfer Housing In A Bench Vise

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Install the special tool on the companion flange.
10. Tighten the locknut while measuring the starting torque so the starting torque is within 0.98-1.39 N.m (10.0-14.2 kgf.cm, 8.7 12.3 lbf.in). Do not stake the locknut in this step.

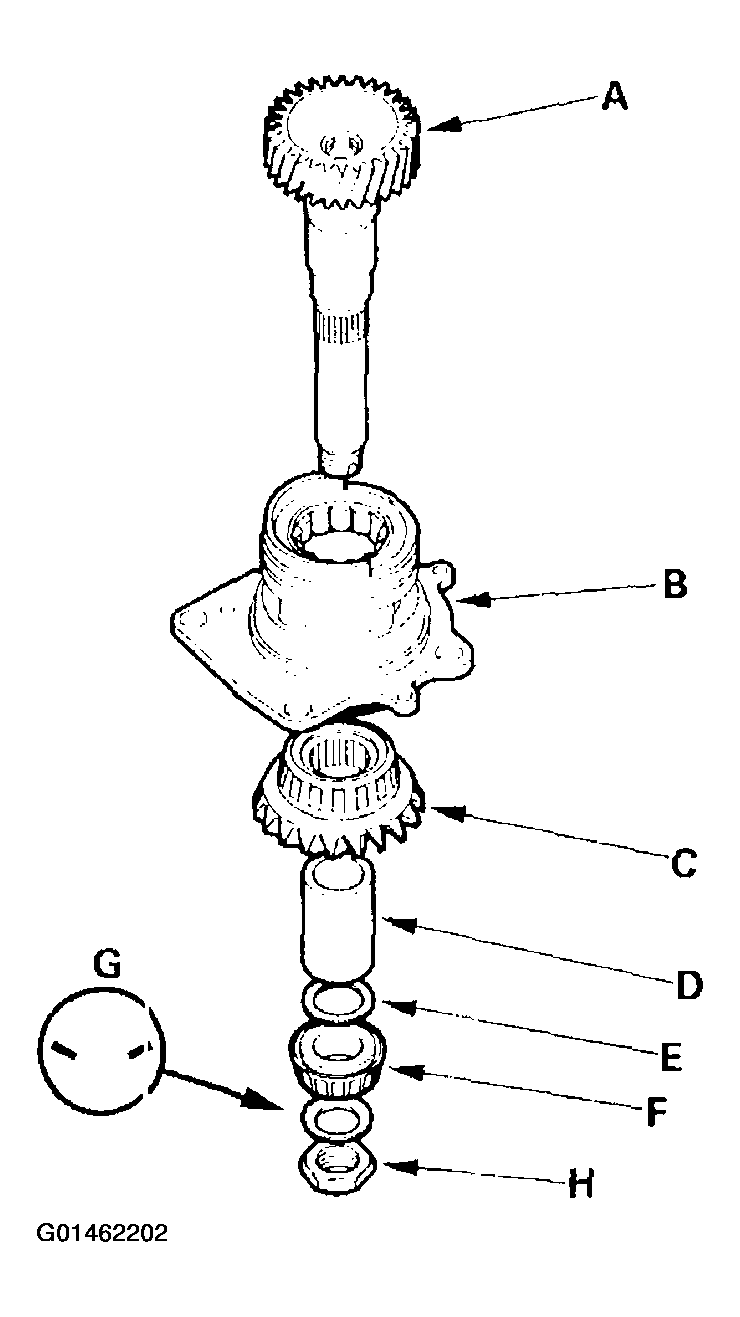

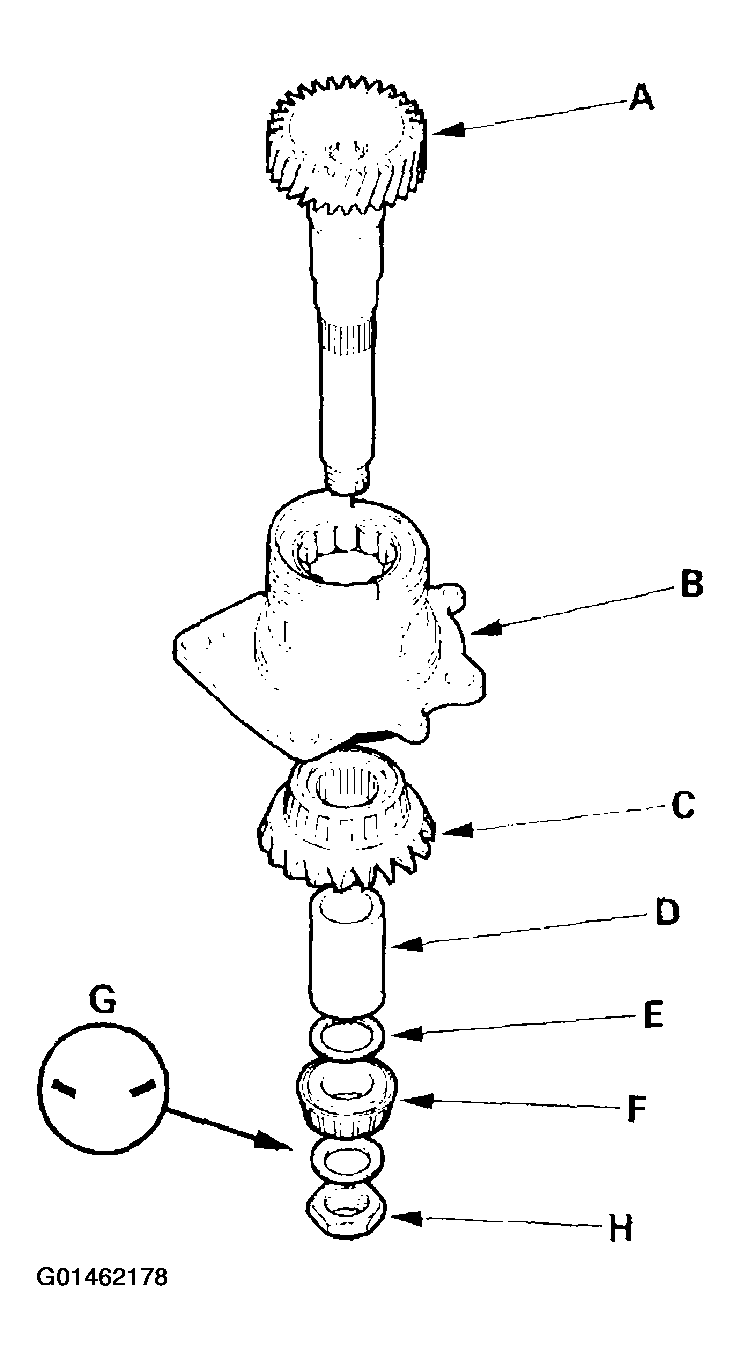

11. Install the transfer shaft (A) in the transfer holder (B), and install the transfer drive gear (C), transfer collar (D), 25 mm thrust shim (E), tapered roller bearing (F), conical spring washer (G), and locknut (H).
    Fig 9: Installing Transfer Shaft, Transfer Drive Gear, Transfer Collar, 25 mm Thrust Shim, Tapered Roller Bearing, Conical Spring Washer, & Locknut

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

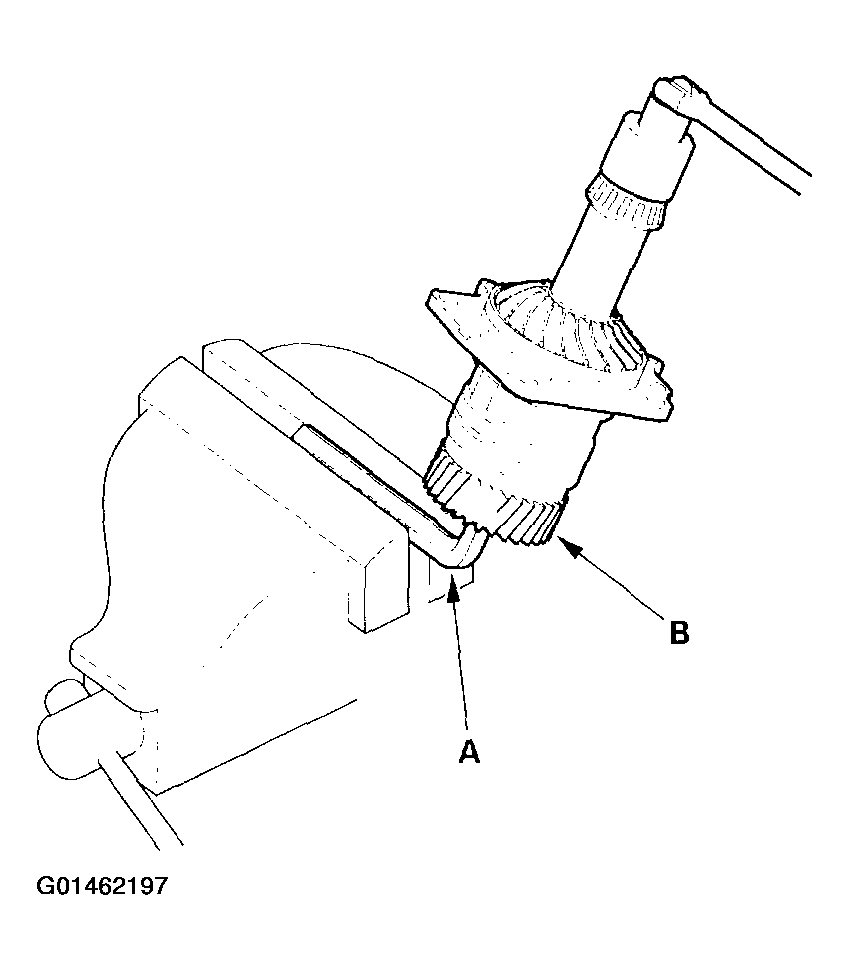

12. Put a 14 mm hex wrench (A) in the transfer shaft (B), then secure the hex wrench in a bench vise.
    Fig 10: Putting A 14 mm Hex Wrench In Transfer Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Tighten the locknut 118 N.m (12.0 kgf.m, 86.8 Ft. Lbs). Do not stake the locknut in this step.
14. Apply Prussian Blue to both sides of the transfer drive gear teeth lightly and evenly.

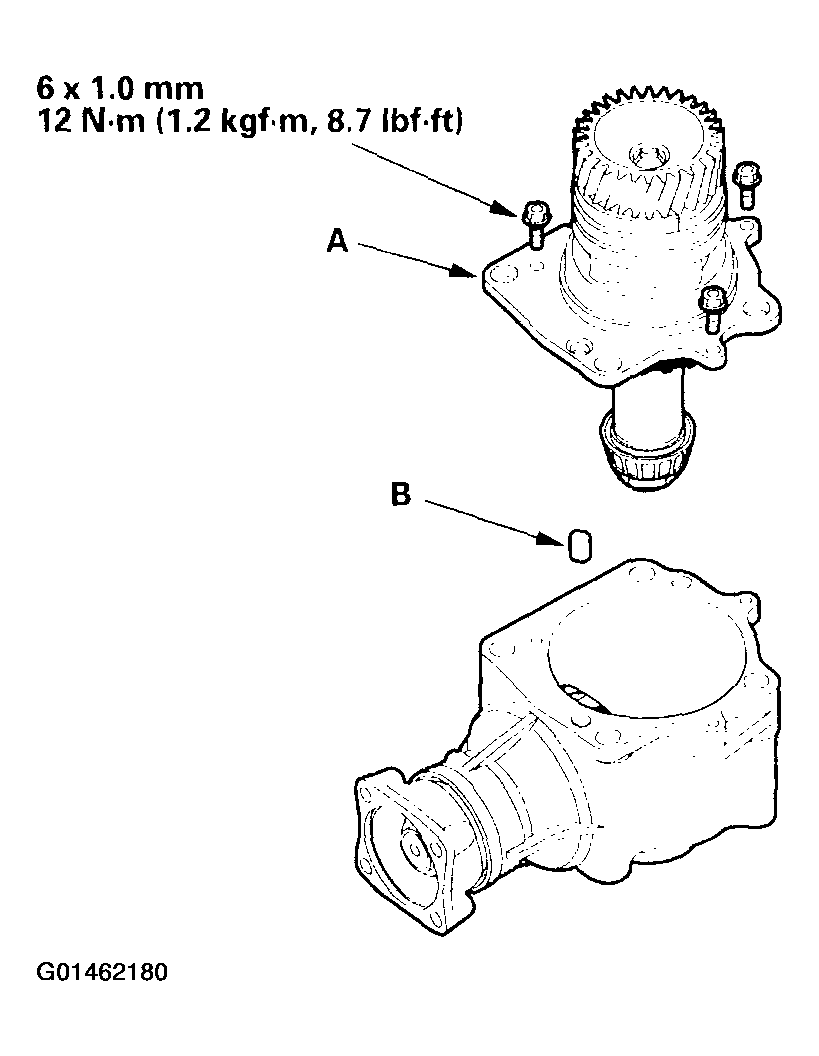

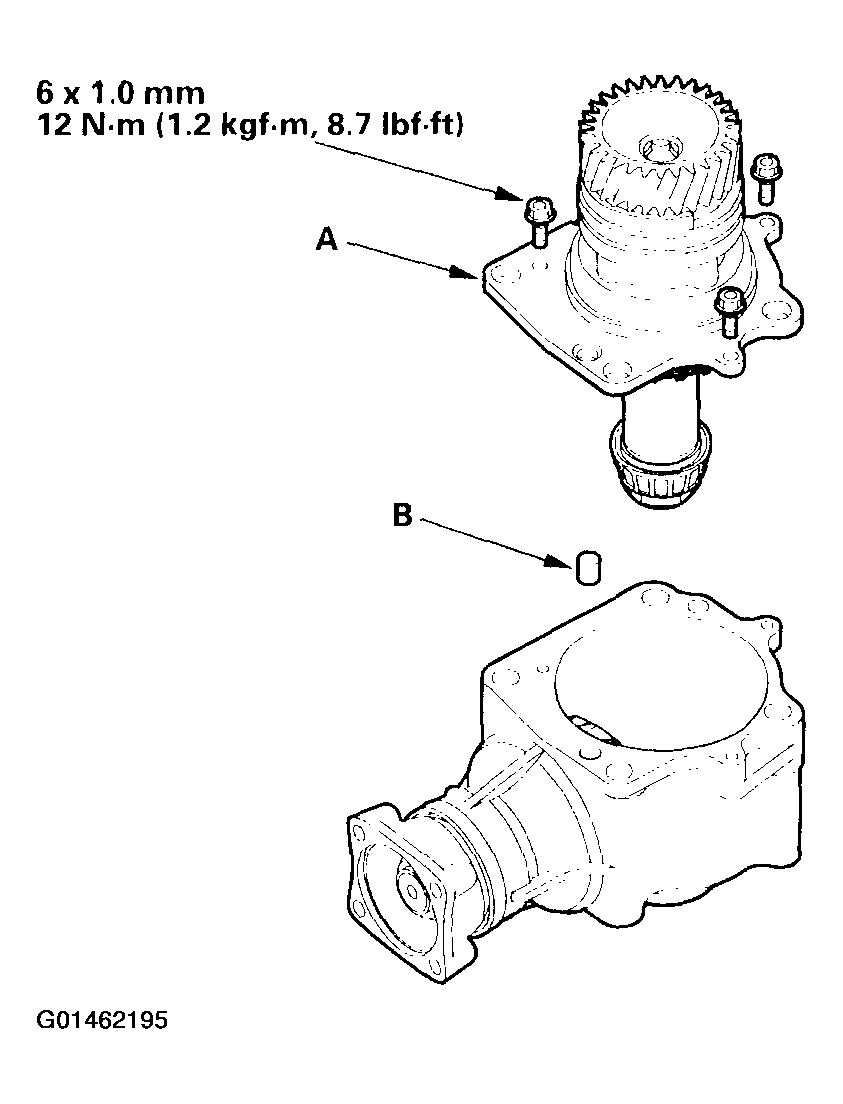

15. Temporarily install the transfer holder (A) and dowel pin (B) without O-ring, and tighten the bolts.
    Fig 11: Installing Transfer Holder & Dowel Pin Temporarily

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
16. Rotate the companion flange in both directions until the transfer gears rotate on full turn in both directions.

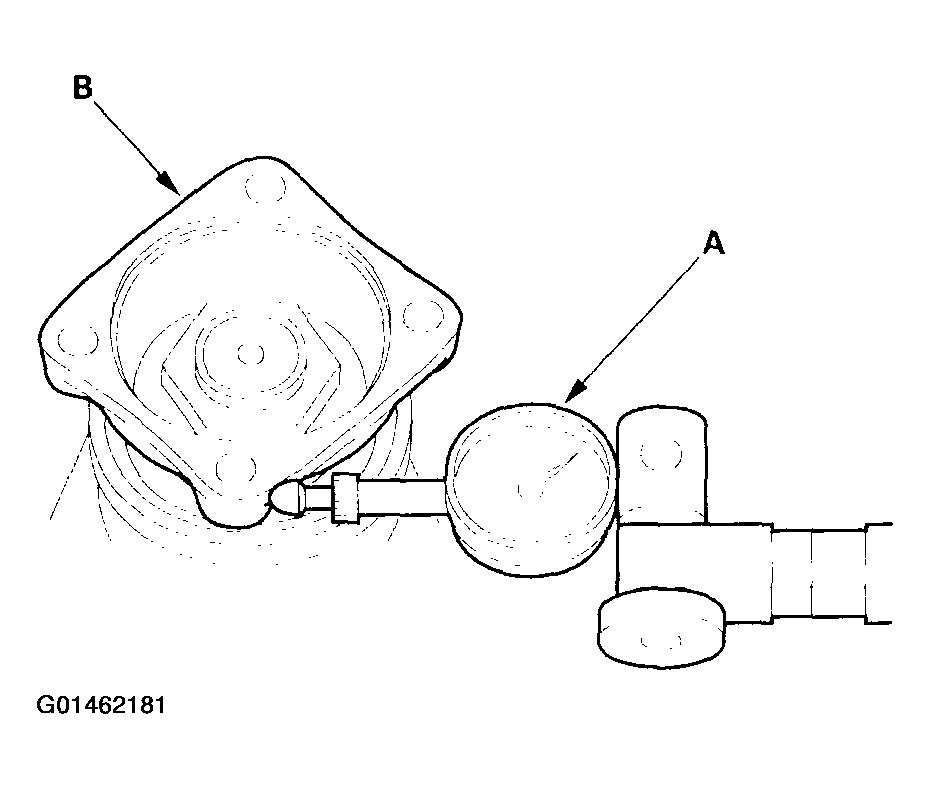

17. Set a dial indicator (A) on the companion flange (B).
    Fig 12: Setting A Dial Indicator On The Companion Flange

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
18. Measure the transfer gear backlash.

    Standard: 0.06-0.16 mm (0.02-0.06 in.)

19. Remove the transfer holder, and check the transfer drive gear tooth contact pattern.

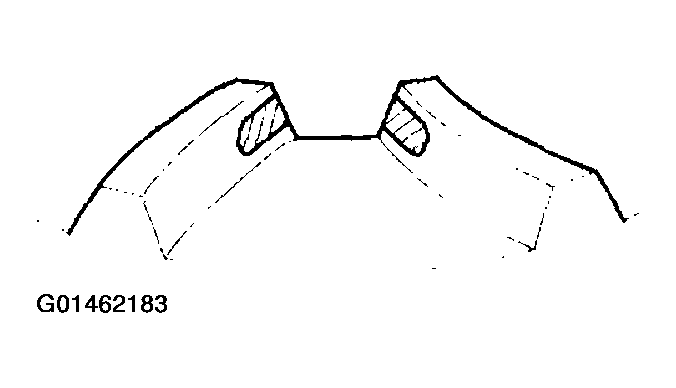

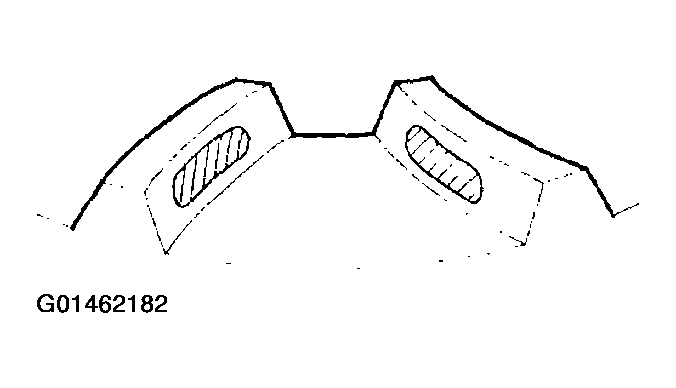

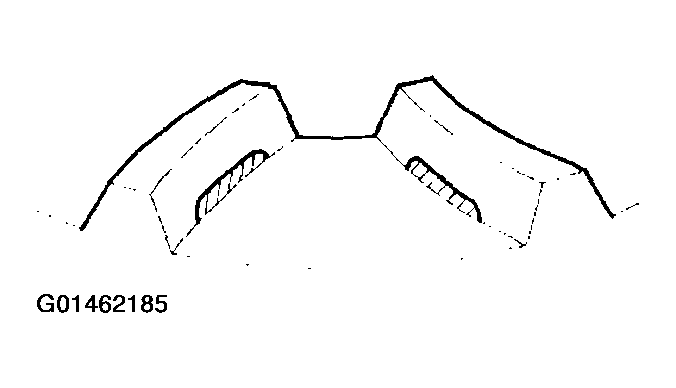

    Fig 13: Checking Transfer Drive Gear (Correct Tooth Contact Pattern)

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

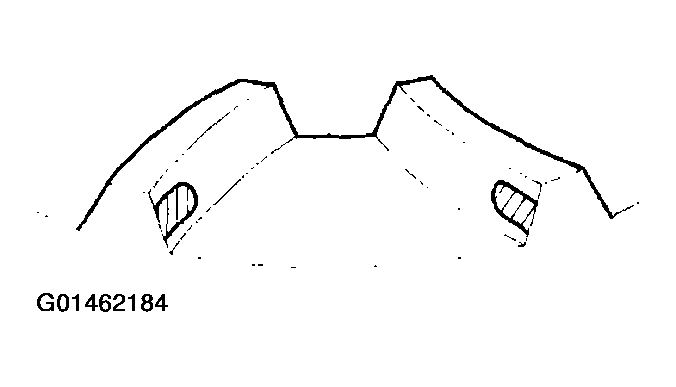

    Fig 14: Checking Transfer Drive Gear (Incorrect Tooth Contact Patterns Toe Contact

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

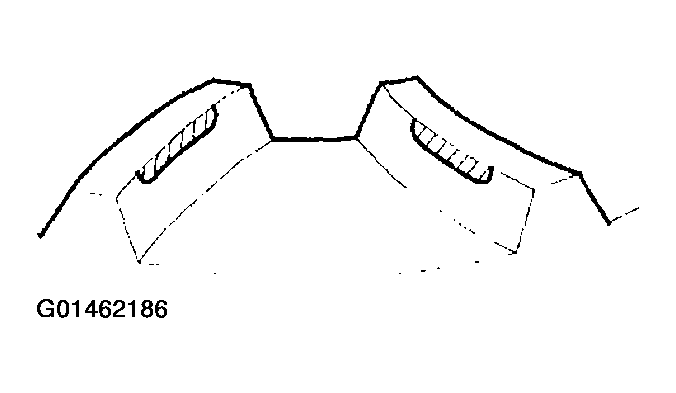

    Fig 15: Checking Transfer Drive Gear (Heel Contact)

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 16: Checking Transfer Drive Gear (Flank Contact)

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 17: Checking Transfer Drive Gear (Face Contact)

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
20. If the backlash measurement is out of standard, adjust the backlash with the 35 mm thrust shim and recheck. Do not use more than two 35 mm thrust shims to adjust the backlash.
21. If the transfer gear tooth contact is incorrect, adjust the tooth contact with the 25 mm or 35 mm thrust shim. Do not use more than two of each thrust shim to adjust the tooth contact.
    • Toe Contact

      Use a thicker 35mm thrust shim to move the transfer output shaft toward the transfer drive gear. Because this movement causes the transfer gear backlash to change, move the transfer drive gear away from the transfer output shaft to adjust the transfer gear backlash as follows:

      • Increase the thickness of the 68 mm thrust shim.
      • Reduce the thickness of the 68 mm thrust shim by the amount you increased the 25 mm thrust shim.
    • Heel Contact

      Use a thinner 35 mm thrust shim to move the transfer output shaft away from the transfer drive gear. Because this movement causes the transfer gear backlash to change, move the transfer drive gear toward the transfer output shaft to adjust the transfer gear backlash as follows:

      • Reduce the thickness of the 25 mm thrust shim.
      • Increase the thickness of the 68 mm thrust shim by amount you reduced the thickness of the 25 mm thrust shim.
    • Flank Contact

      Use a thinner thrust shim to move the transfer drive gear toward the transfer output shaft. Flank contact must be adjusted within the limits of the transfer gear backlash. If the backlash exceeds the limits, adjust as described under Heel Contact.

    • Face Contact

      Use a thicker thrust shim to move the transfer drive gear away from the transfer output shaft. Face contact must be adjusted within the limits of the transfer gear backlash. If the backlash exceeds the limits, adjust as described under Toe Contact.

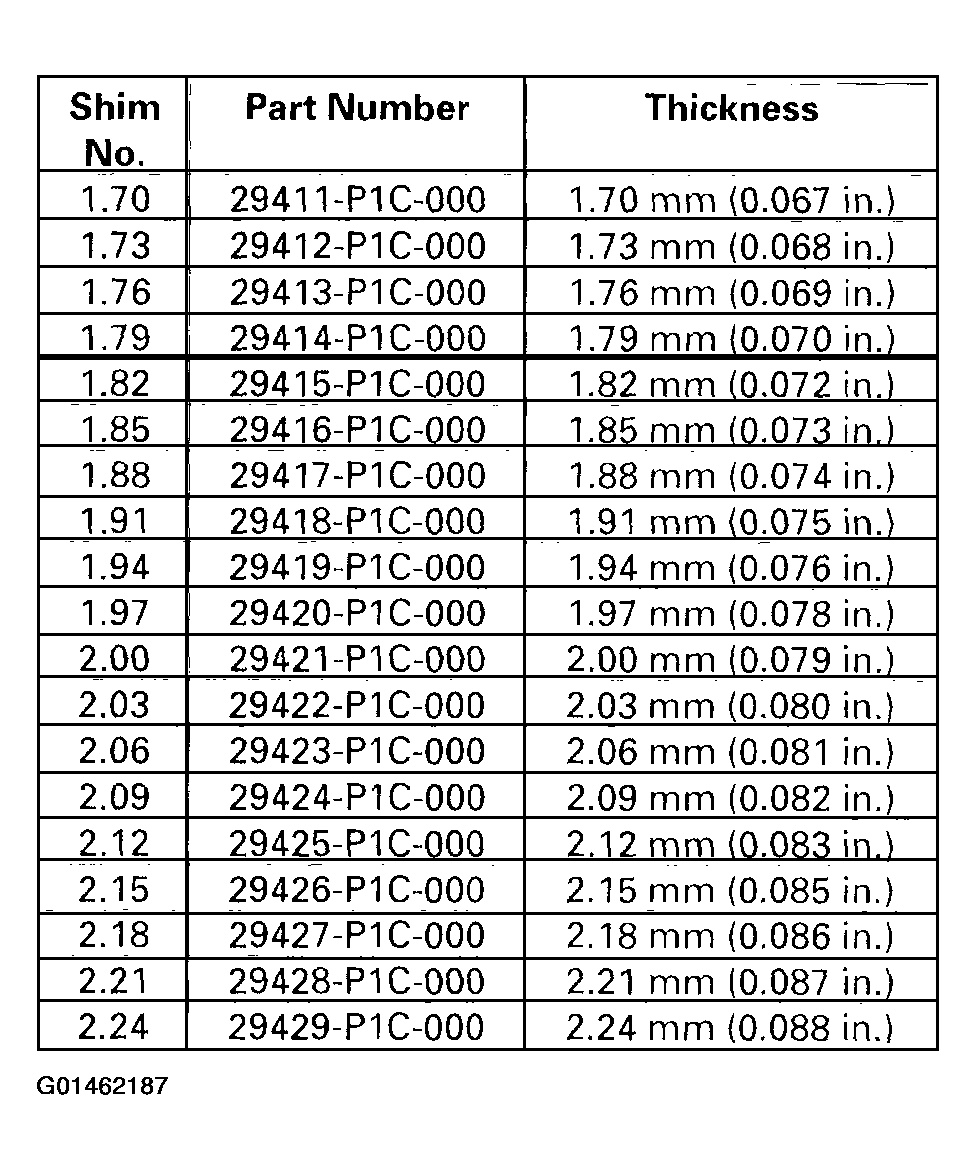

      Fig 18: Thrust Shim (25 mm) Specification Chart

      Courtesy of AMERICAN HONDA MOTOR CO., INC.

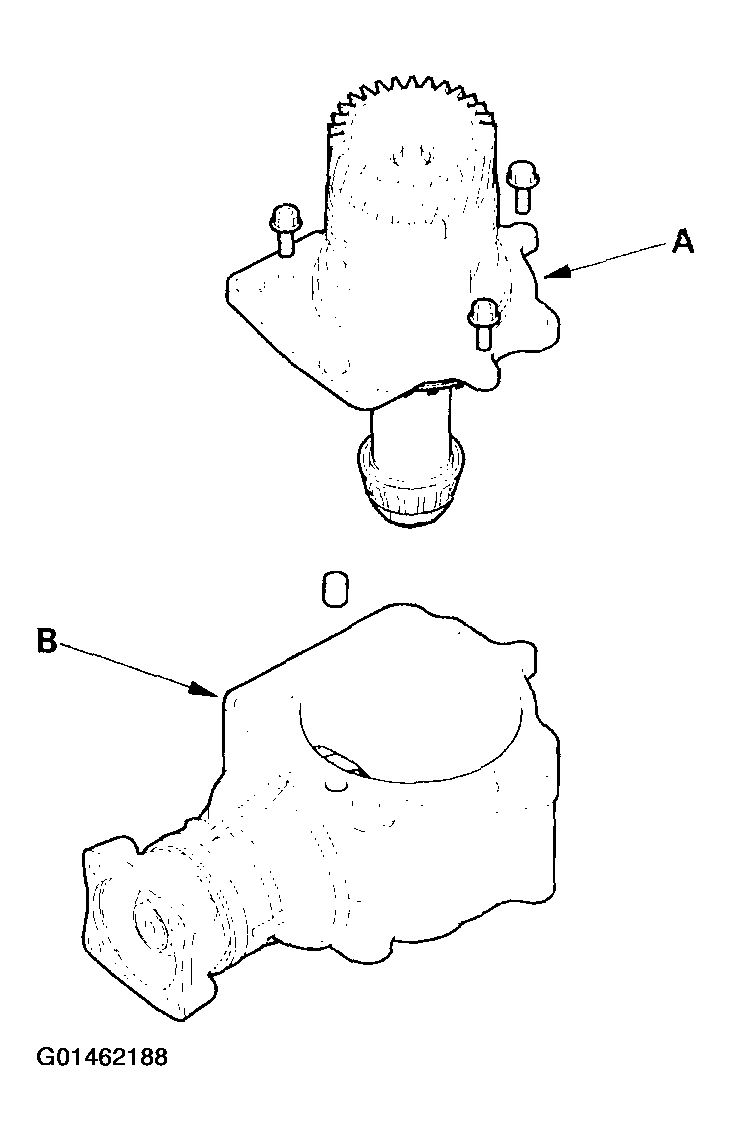

22. Remove the transfer holder (A) from the transfer housing (B) after adjusting the transfer gear backlash or transfer gear tooth contact.
    Fig 19: Removing Transfer Holder From Transfer Housing

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
23. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.
    Fig 20: Securing Transfer Housing In A Bench Vise

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
24. Install the special tool on the companion flange, then loosen the locknut.

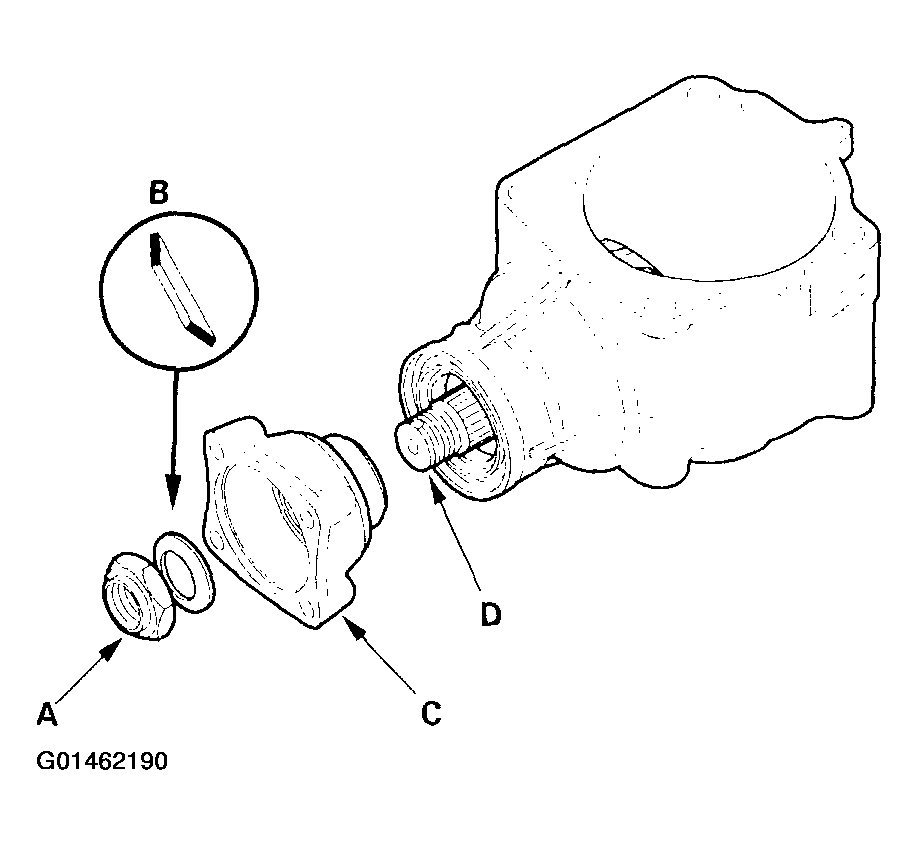

25. Remove the locknut (A), conical spring washer (B), and companion flange (C) from the transfer output shaft (D).
    Fig 21: Removing Locknut, Conical Spring Washer, & Companion Flange

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

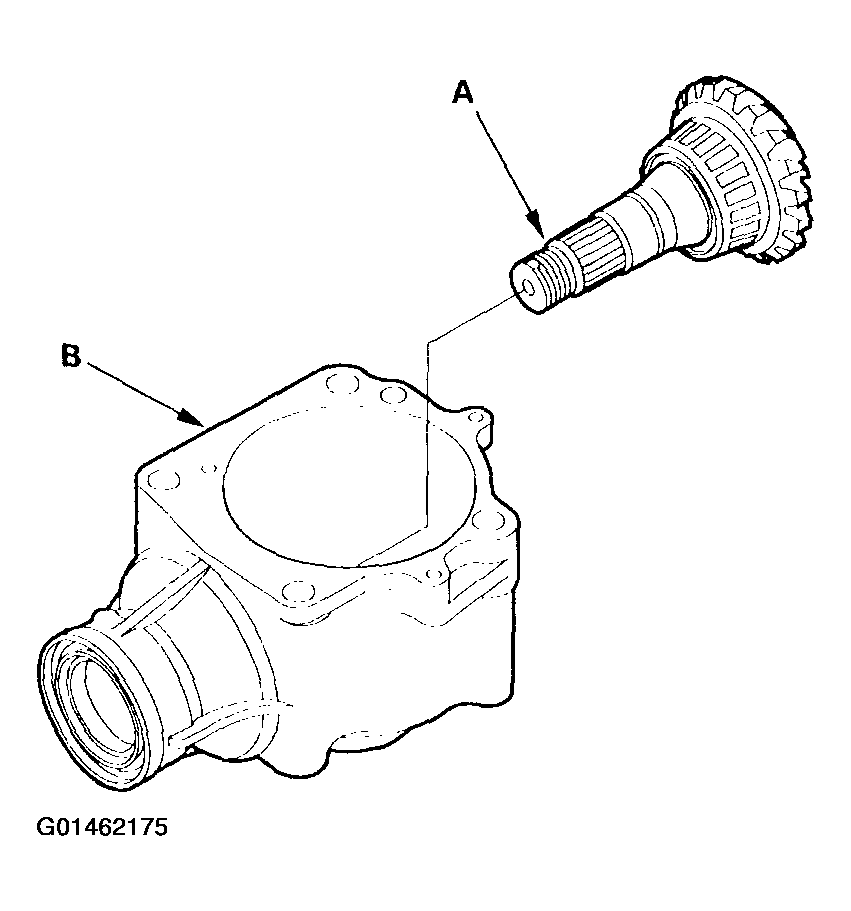

26. Remove the transfer output shaft (A) from the transfer housing (B).
    Fig 22: Removing Transfer Output Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
27. Install the new transfer spacer (C) on the transfer output shaft in the direction shown, and install them in the transfer housing.
28. Coat the threads of the locknut and transfer output shaft with ATF.

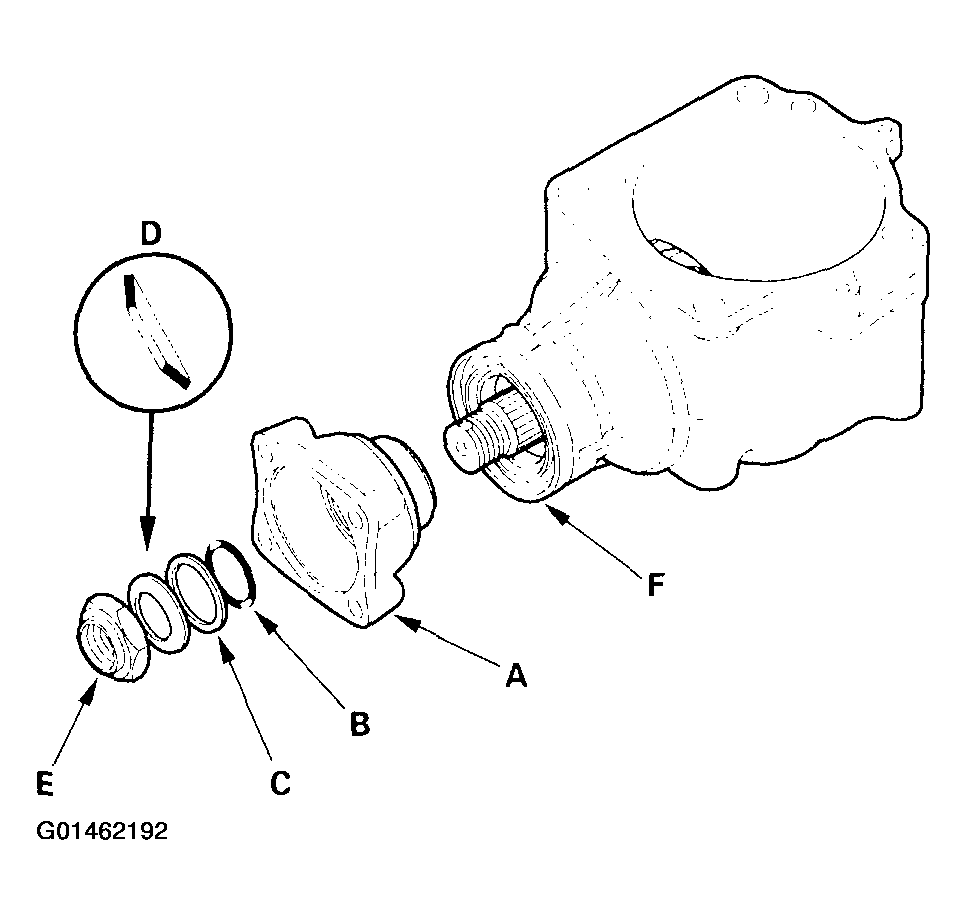

29. Install the companion flange (A), new O-ring (B), back-up ring (C), new conical spring washer (D), and new locknut (E) on the transfer output shaft (F). Install the conical spring washer in the direction shown.
    Fig 23: Installing Companion Flange, New O-Ring, Back-Up Ring, New Conical Spring Washer, & New Locknut

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

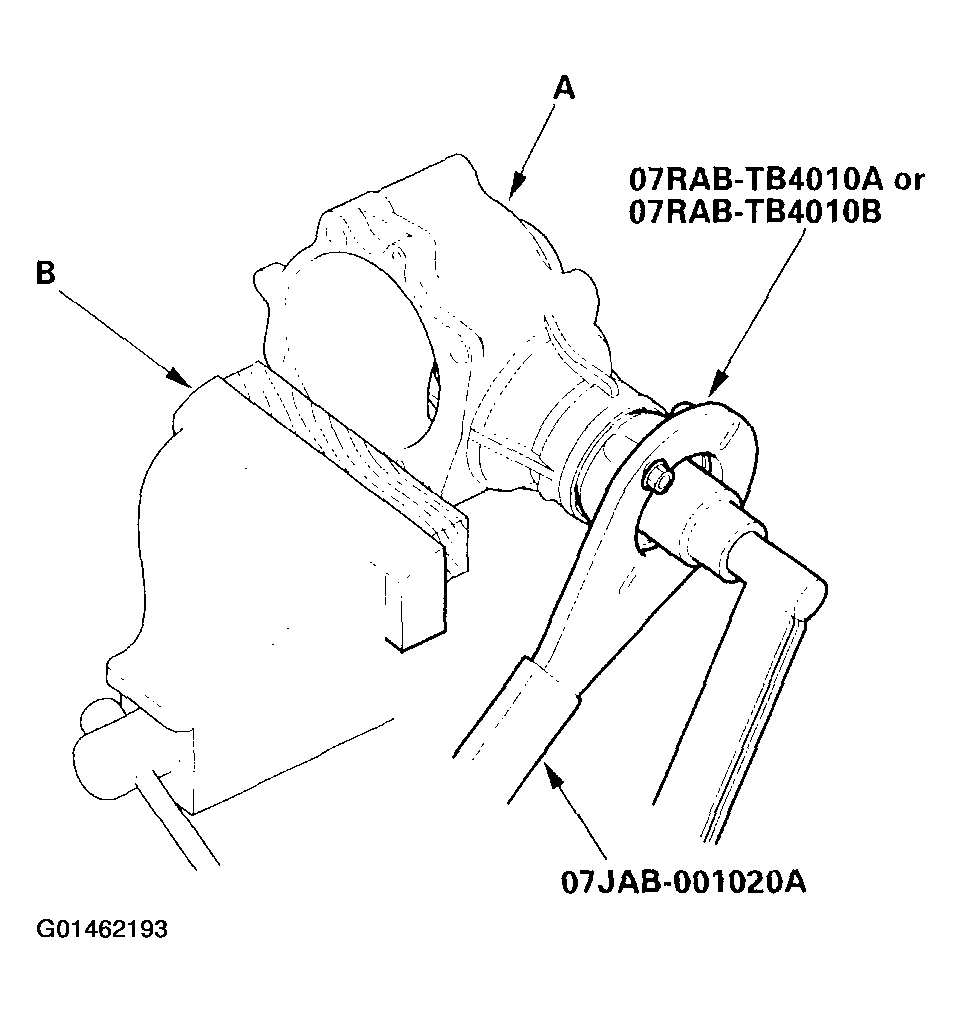

30. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.
    Fig 24: Securing Transfer Housing In A Bench Vise

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
31. Install the special tool on the companion flange.
32. Tighten the locknut while measuring the starting torque of the transfer output shaft.

    Starting torque:

    0.98-1.39 N.m (10.0-14.2 kgf.cm, 8.7-12.3 lbf.in.)

    Tightening torque:

    132-260 N.m (13.5-26.5 kgf.m, 97.6-192 Ft. Lbs)

    NOTE:

    • Rotate the companion flange several turns to seat the tapered roller bearings, then measure the starting torque.
    • If the starting torque exceeds 1.39 N.m (14.2 kgf.cm, 12.3 lbf.in), replace the transfer spacer and reassemble the parts. Do not adjust the starting torque with the locknut loose.
    • If the tightening torque exceeds 260 N.m (26.5 kgf.m, 192 Ft. Lbs), replace the transfer spacer and reassemble the parts.
33. Remove the special tool.

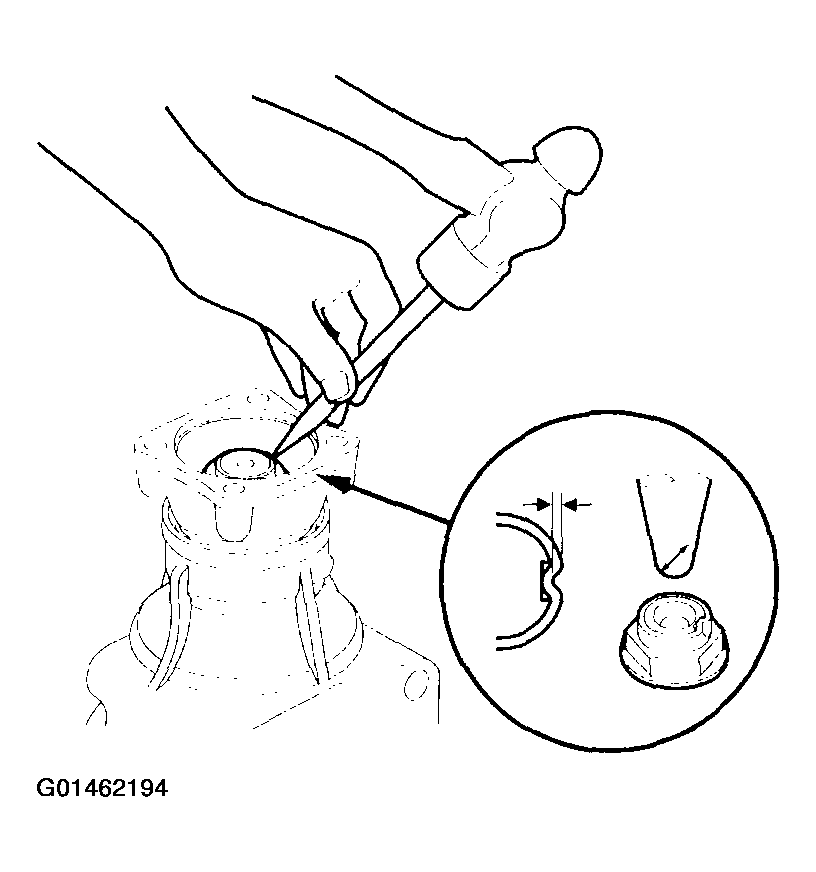

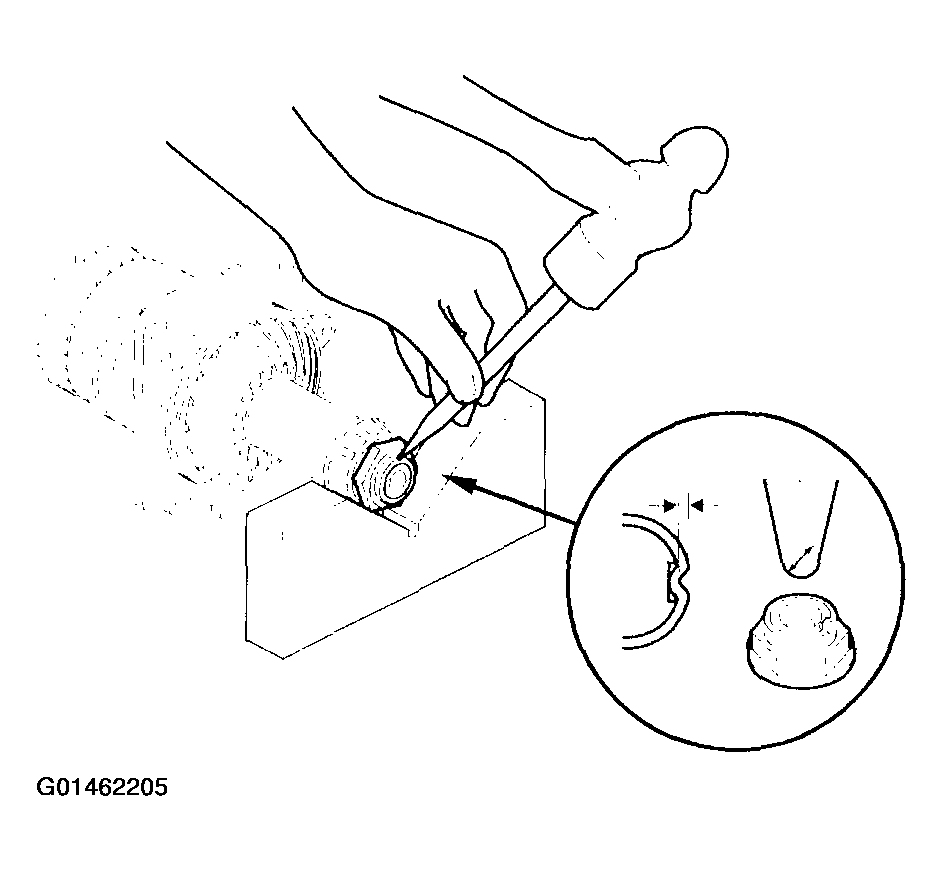

34. Stake the locknut using a 3.5 mm punch.
    Fig 25: Staking Locknut Using A 3.5 mm Punch

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

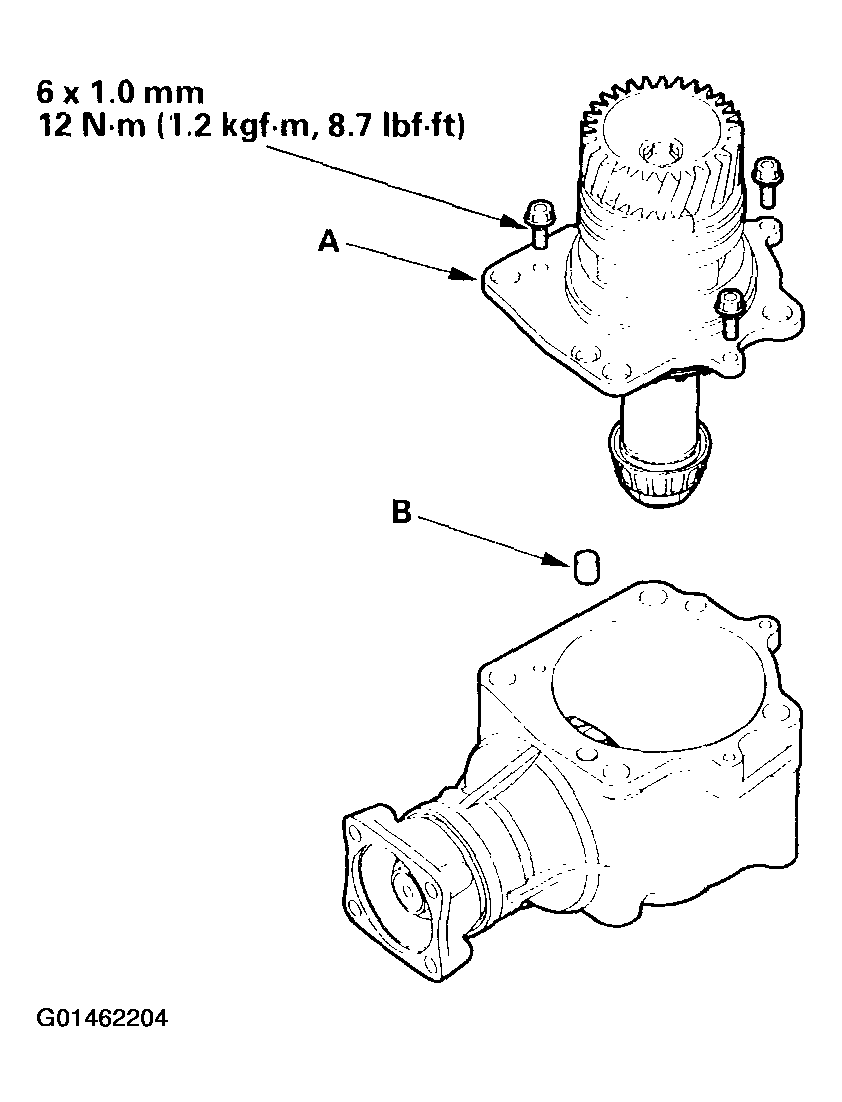

35. Temporarily install the transfer holder (A) and dowel pin (B) without the O-ring, and tighten the bolts.
    Fig 26: Installing Transfer Holder & Dowel Pin Temporarily

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

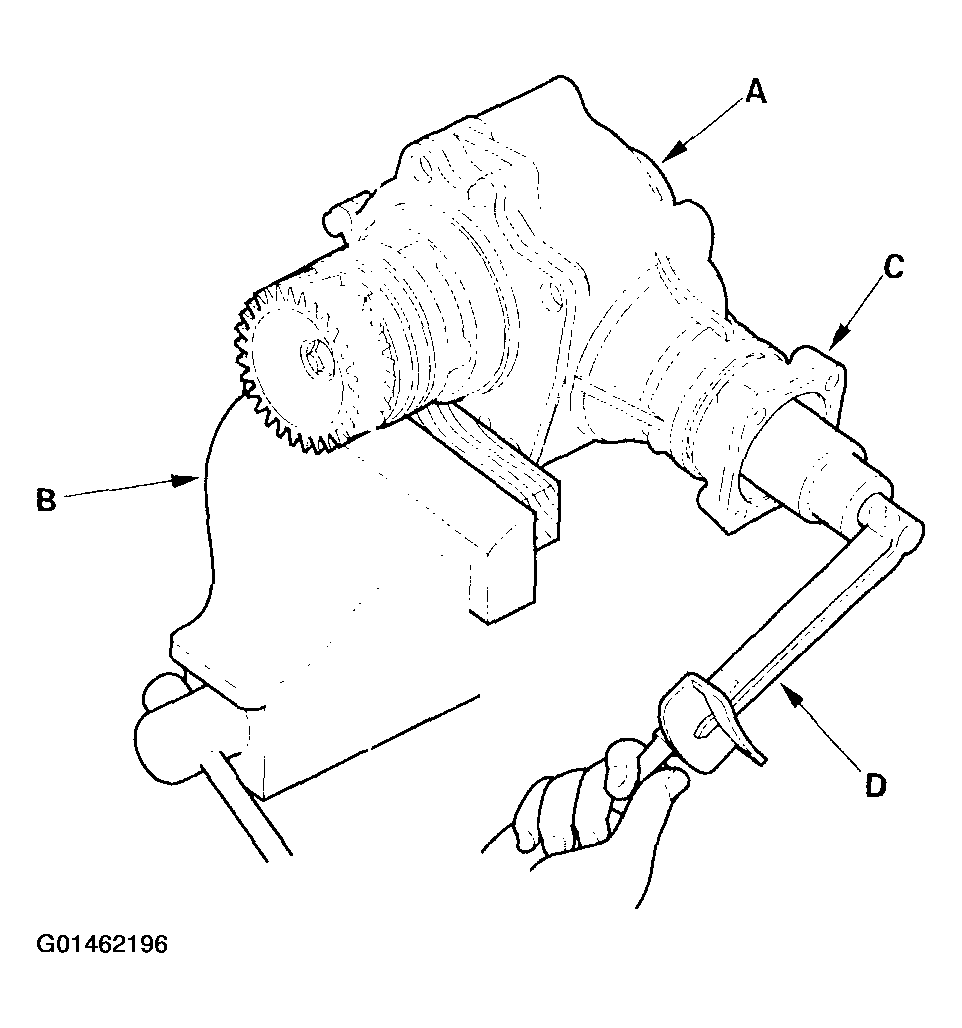

36. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.
    Fig 27: Securing Transfer Housing In A Bench Vise

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
37. Rotate the companion flange several times to seat the tapered roller bearings.
38. Measure the starting torque at the companion flange (C) using a torque wrench (D).

    Standard: 2.16-3.57 N.m (22.0-36.34 kgf.cm, 19.1-31.6 lbf.in.)

39. Remove the transfer holder from the transfer housing.
40. If the measurement is within the standard, go to step  53 .
41. If the measurement is out of standard, put a 14 mm hex wrench (A) in the transfer shaft (B), then secure the hex wrench in a bench vise.
    Fig 28: Putting A 14 mm Hex Wrench In Transfer Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
42. Loosen the locknut.
43. Remove the locknut (A) and conical spring washer (B).
    Fig 29: Removing Locknut & Conical Spring Washer

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
44. Remove the tapered roller bearing (C), 25 mm thrust shim (D), transfer collar (E), transfer drive gear (F), and transfer shaft (G) from the transfer holder (H).

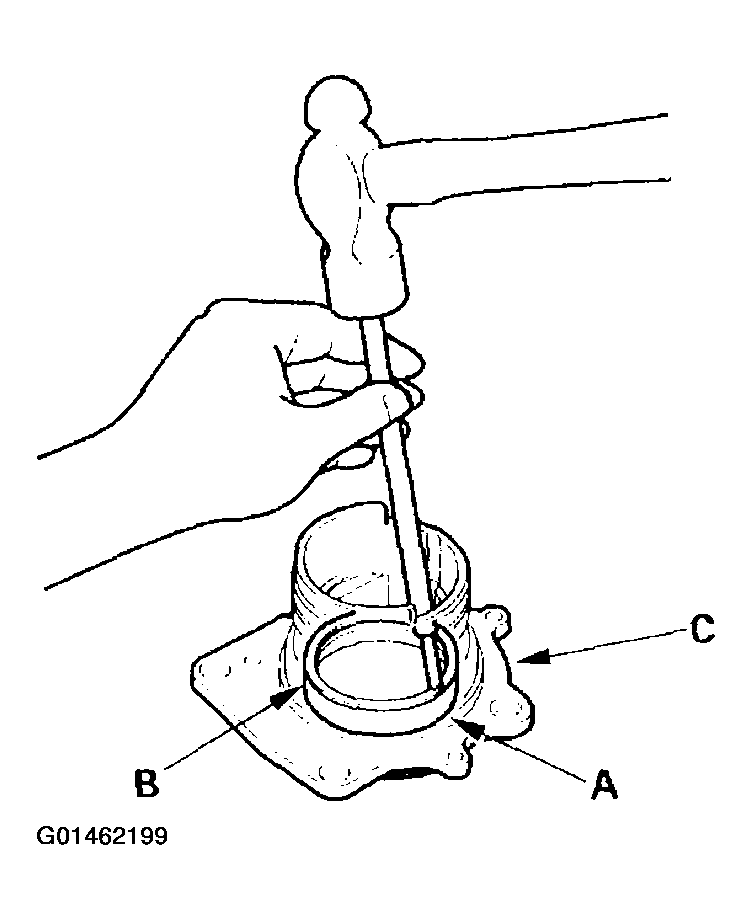

45. Remove the tapered roller bearing outer race (A) and the 68 mm thrust shim (B) from the transfer holder (C).
    Fig 30: Removing Tapered Roller Bearing Outer Race & 68 mm Thrust Shim From Transfer Holder

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
46. Measure the thickness of the 68 mm thrust shim, and select the new 68 mm thrust shim.

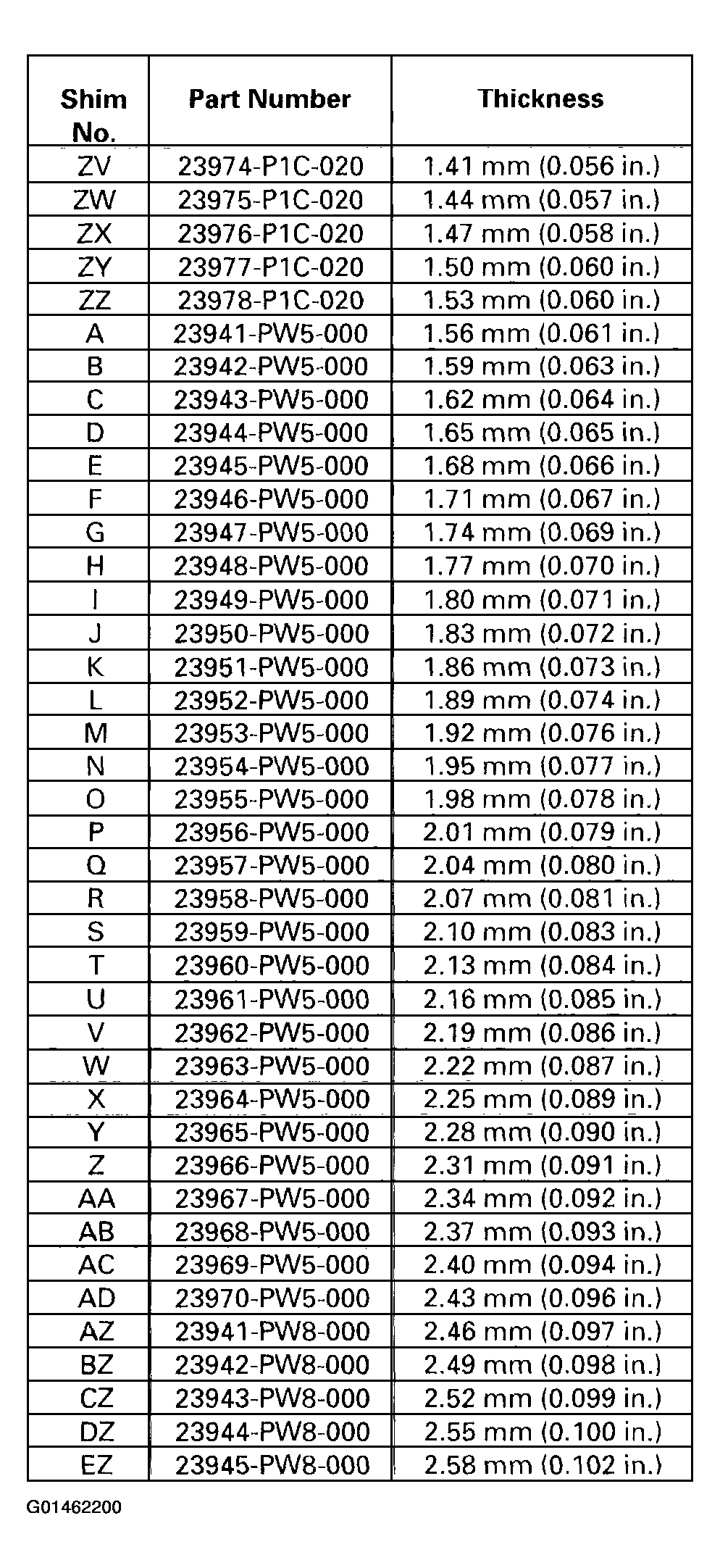

    Fig 31: Thrust Shim (68 mm) Specification Chart

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

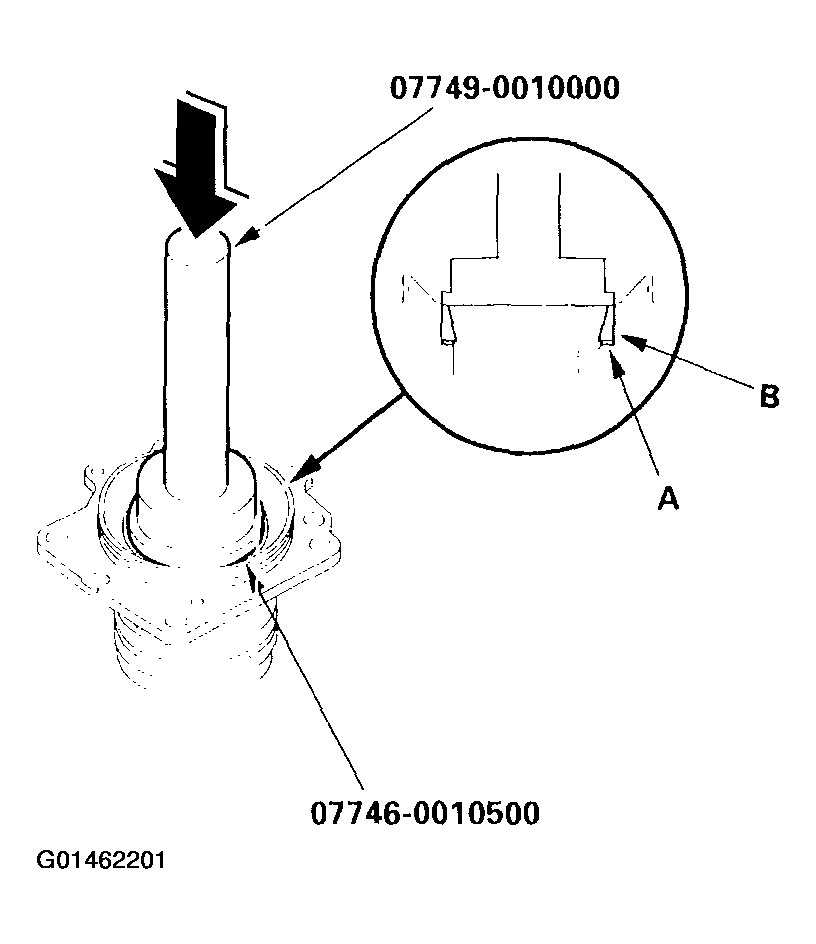

47. Install the new 68 mm thrust shim (A) in the transfer holder, then install the tapered roller bearing outer race (B) with the special tools.
    Fig 32: Installing New 68 mm Thrust Shim & Tapered Roller Bearing Outer Race

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

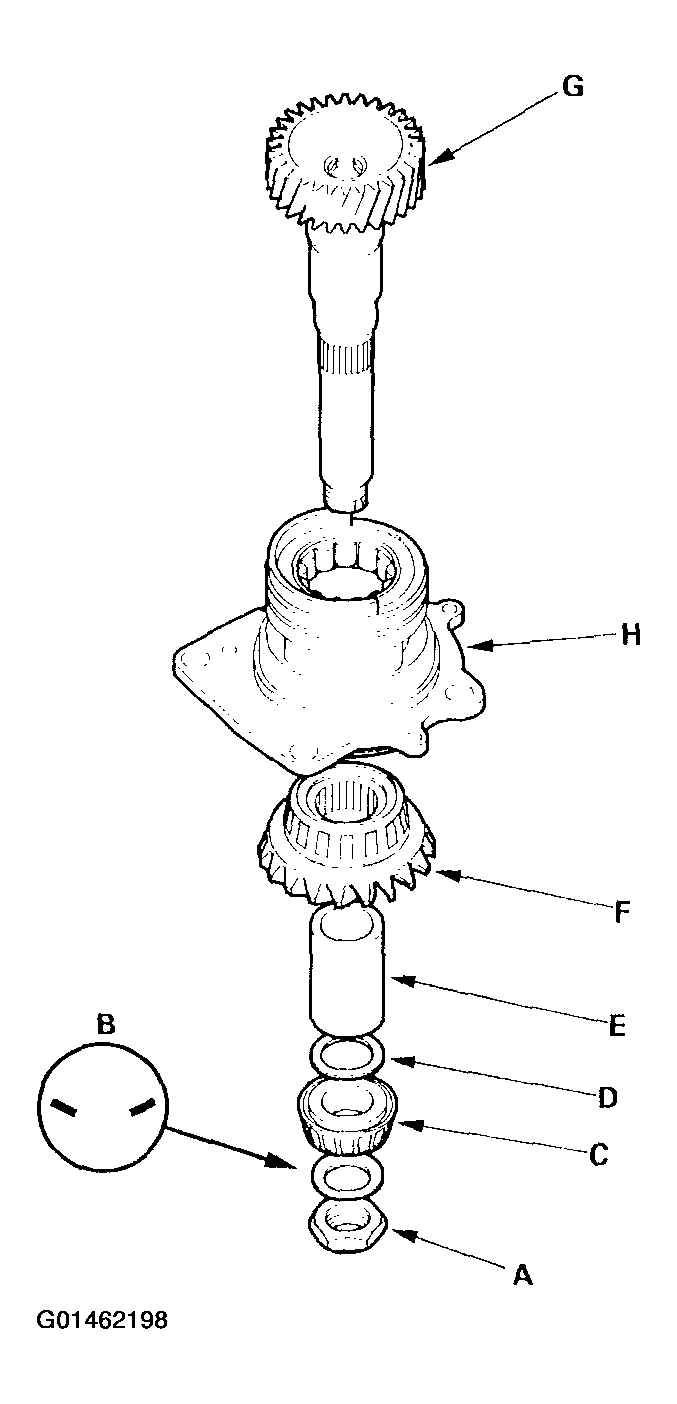

48. Install the transfer shaft (A) in the transfer holder (B), and install the transfer drive gear (C), transfer collar (D), 25 mm thrust shim (E), tapered roller bearing (F), conical spring washer (G), and locknut (H). Install the conical spring washer in the direction shown.
    Fig 33: Installing Transfer Shaft, Transfer Drive Gear, Transfer Collar, 25 mm Thrust Shim, Tapered Roller Bearing, Conical Spring Washer & Locknut

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

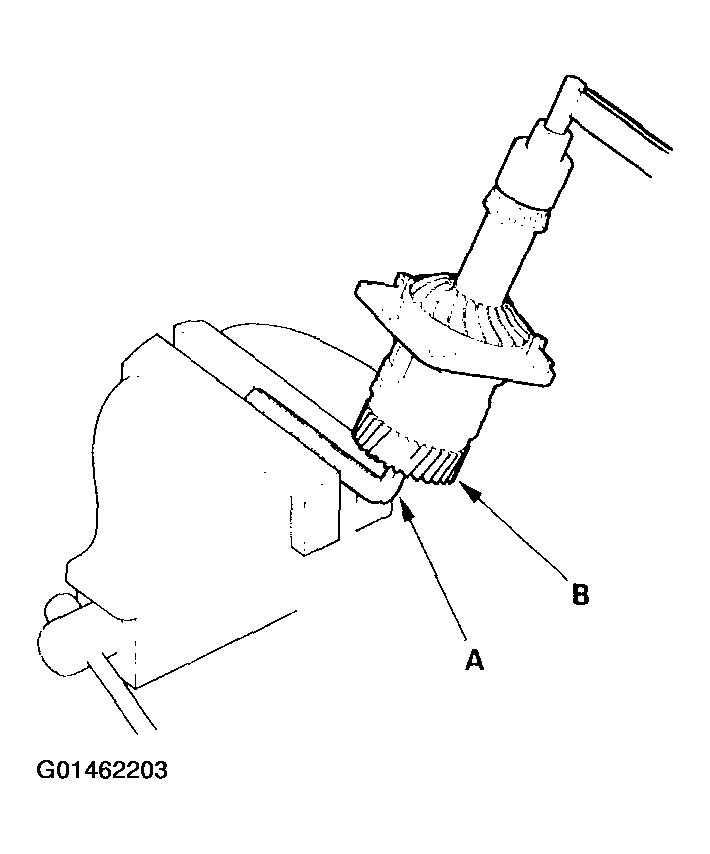

49. Put a 14 mm hex wrench (A) in the transfer shaft (B), then secure the hex wrench in a bench vise.
    Fig 34: Putting A 14 mm Hex Wrench In Transfer Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
50. Tighten the locknut 118 N.m (12.0 kgf.m, 86.8 Ft. Lbs). Do not stake the locknut in this step.
51. Temporarily install the transfer holder (A) and dowel pin (B) without the O-ring, and tighten the bolts.
    Fig 35: Installing Transfer Holder & Dowel Pin Temporarily

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
52. Rotate the companion flange several turns to seat the tapered roller bearings, and recheck the starting torque. Remove the transfer holder after adjusting the starting torque.
53. Stake the locknut of the transfer shaft using a 3.5 mm punch.
    Fig 36: Staking Locknut Of The Transfer Shaft Using A 3.5 mm Punch

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

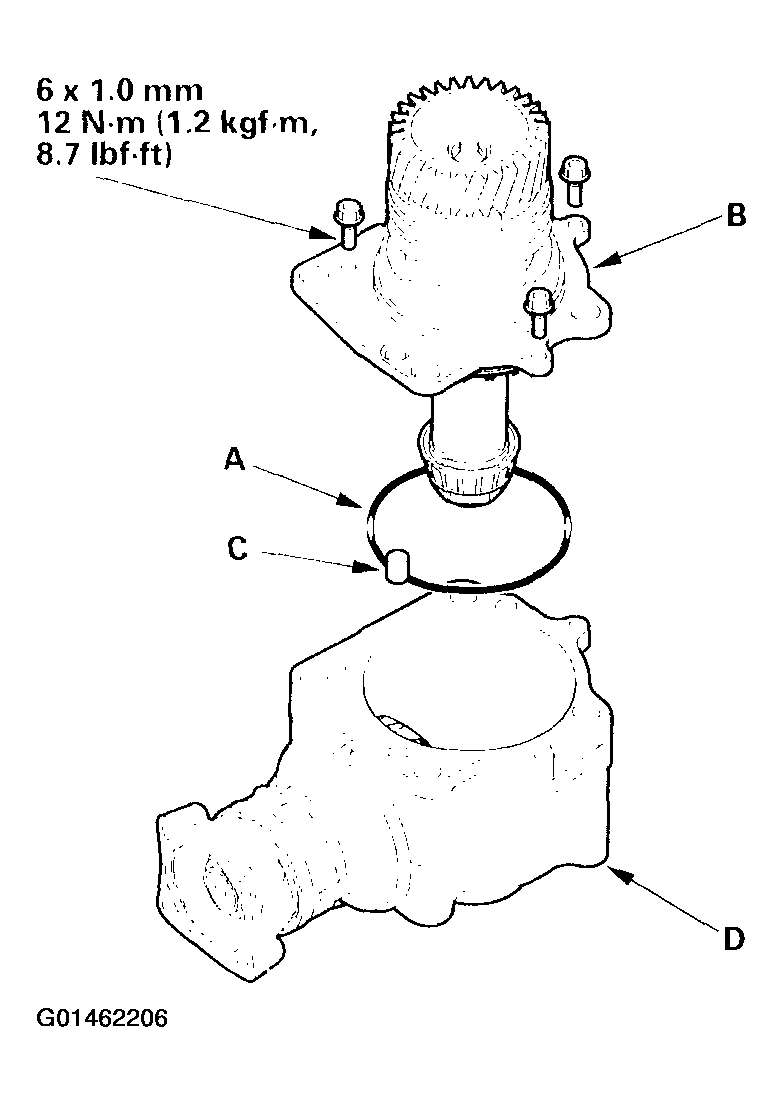

54. Install the new O-ring (A) on the transfer holder (B), then install the transfer holder with the dowel pin (C) on the transfer housing (D).
    Fig 37: Installing New O-Ring & Transfer Holder With Dowel Pin

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
