Knock Sensor Replacement
- Remove the splash shield (see ENGINE REMOVAL
).
- Disconnect the knock sensor 1P connector.

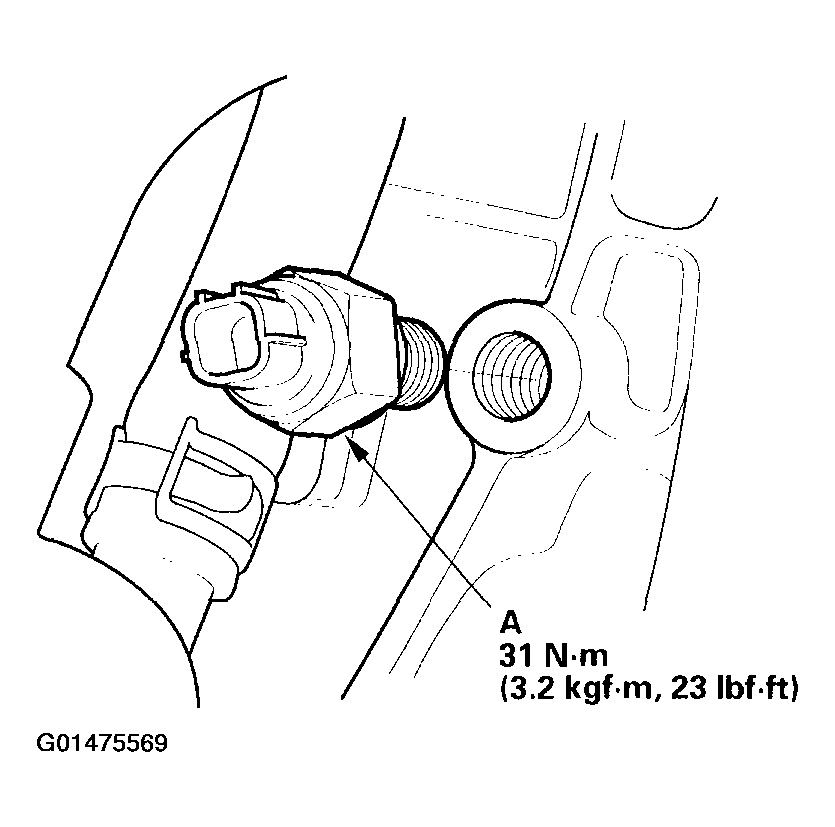

- Remove the knock sensor (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the sensor in the reverse order of removal.
