Cruise Control Actuator/Cable Replacement

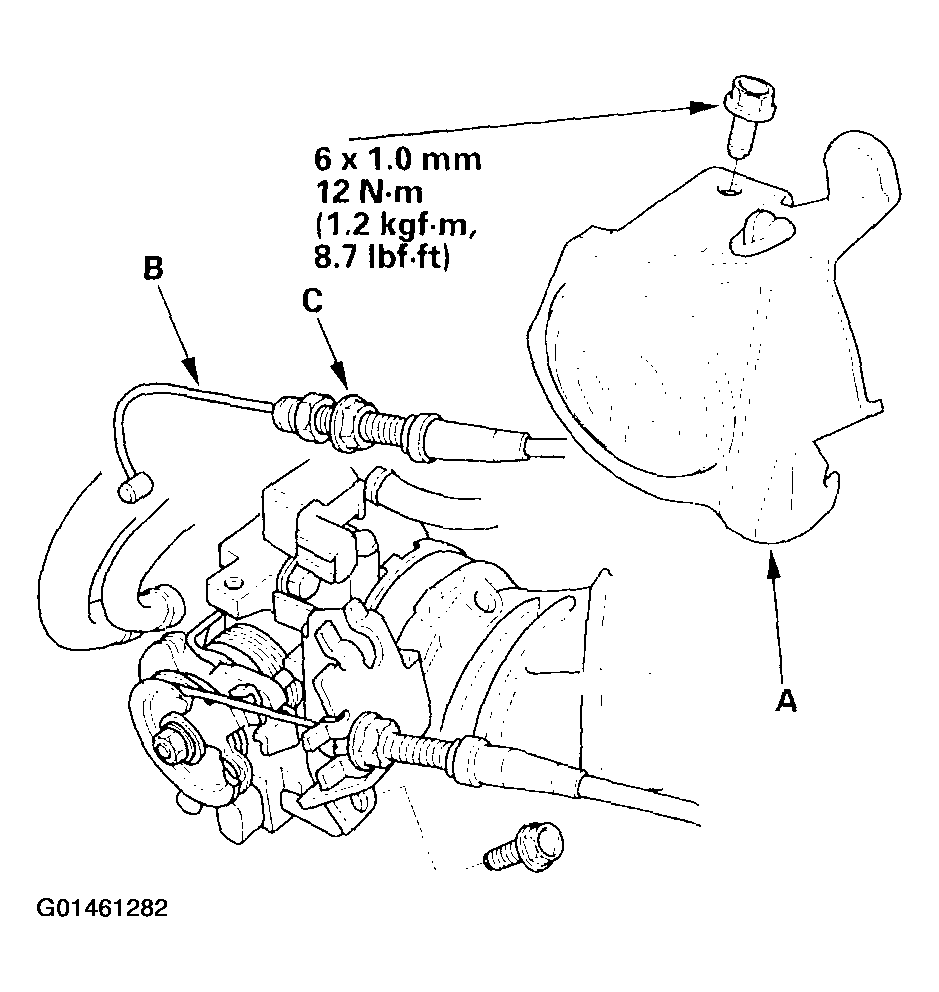

Remove the throttle cable cover (A), fully open the cruise control link by hand, then remove the cruise control cable (B) from link. Loosen the locknut (C), and remove the cable from the bracket.

Fig 1: Removing Throttle Cable Cover, Cruise Control Cable From Link & Cable From Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

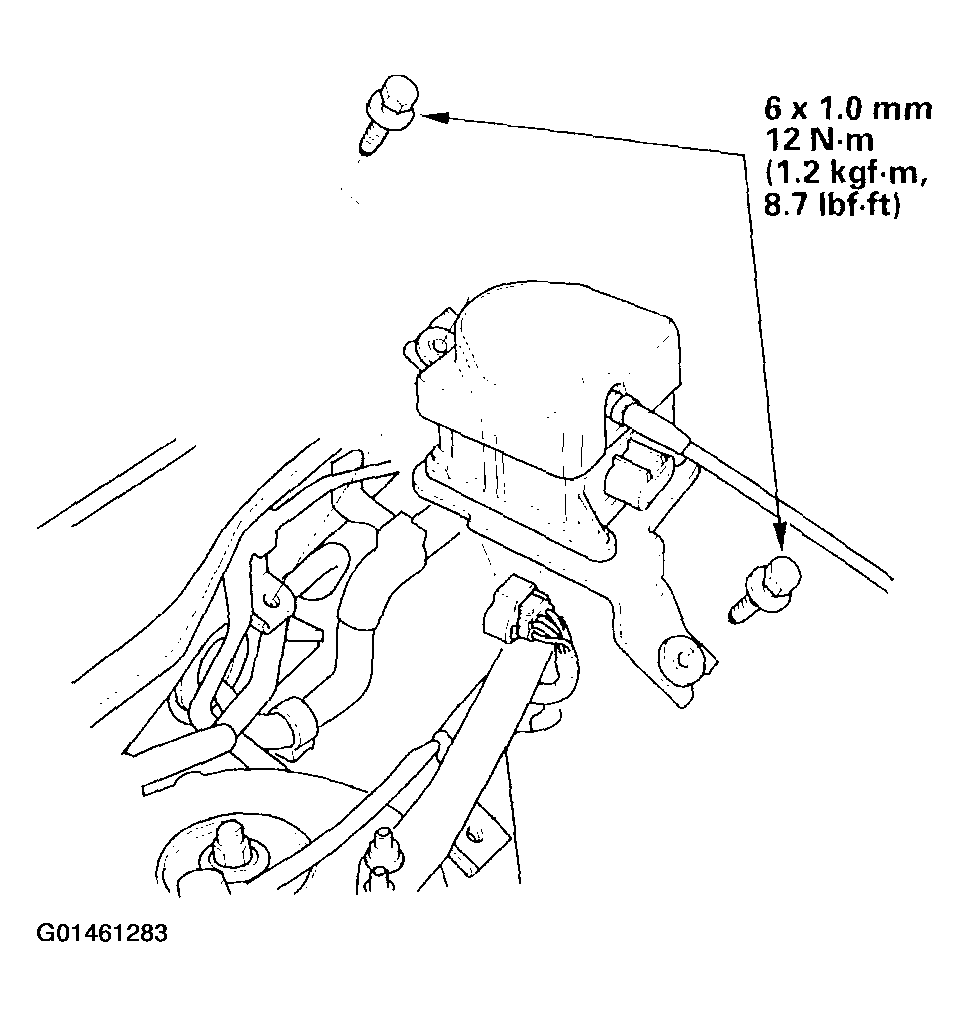

Disconnect the 4P connector, and remove the two bolts securing the cruise control actuator.

Fig 2: Removing Two Bolts Securing Cruise Control Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

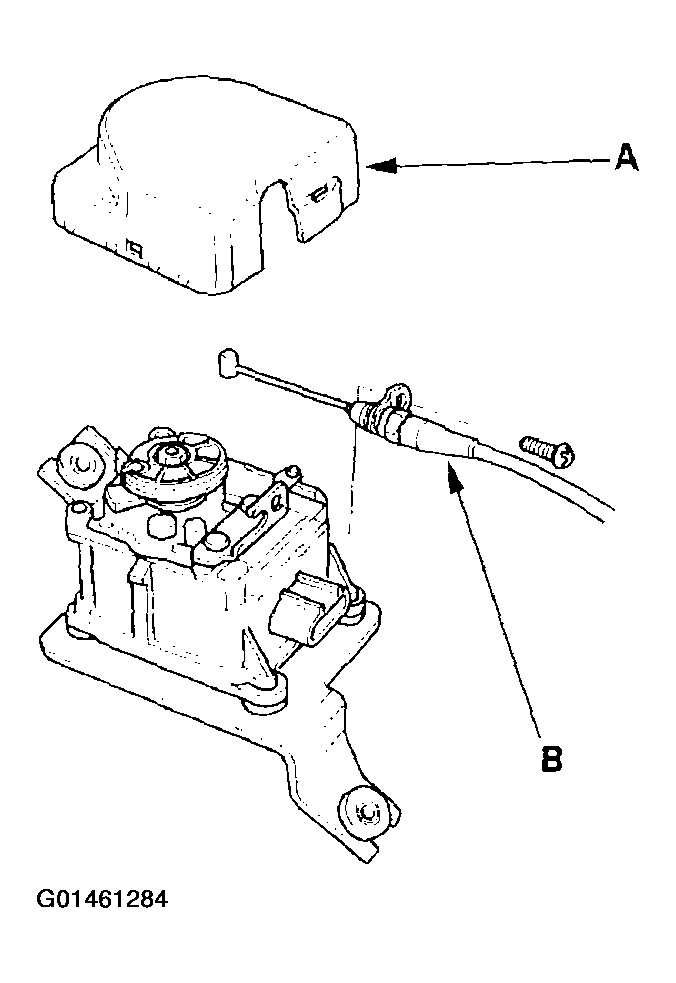

Remove the actuator cover (A), then remove the actuator cable (B) from the cruise control actuator.

Fig 3: Removing Actuator Cover & Actuator Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and adjust the free play at the throttle linkage after connecting the actuator cable (see Cruise Control Actuator Cable Adjustment ).
