Alternator And Regulator Circuit Test

For alternator and regulator circuit test see, Fig 1.

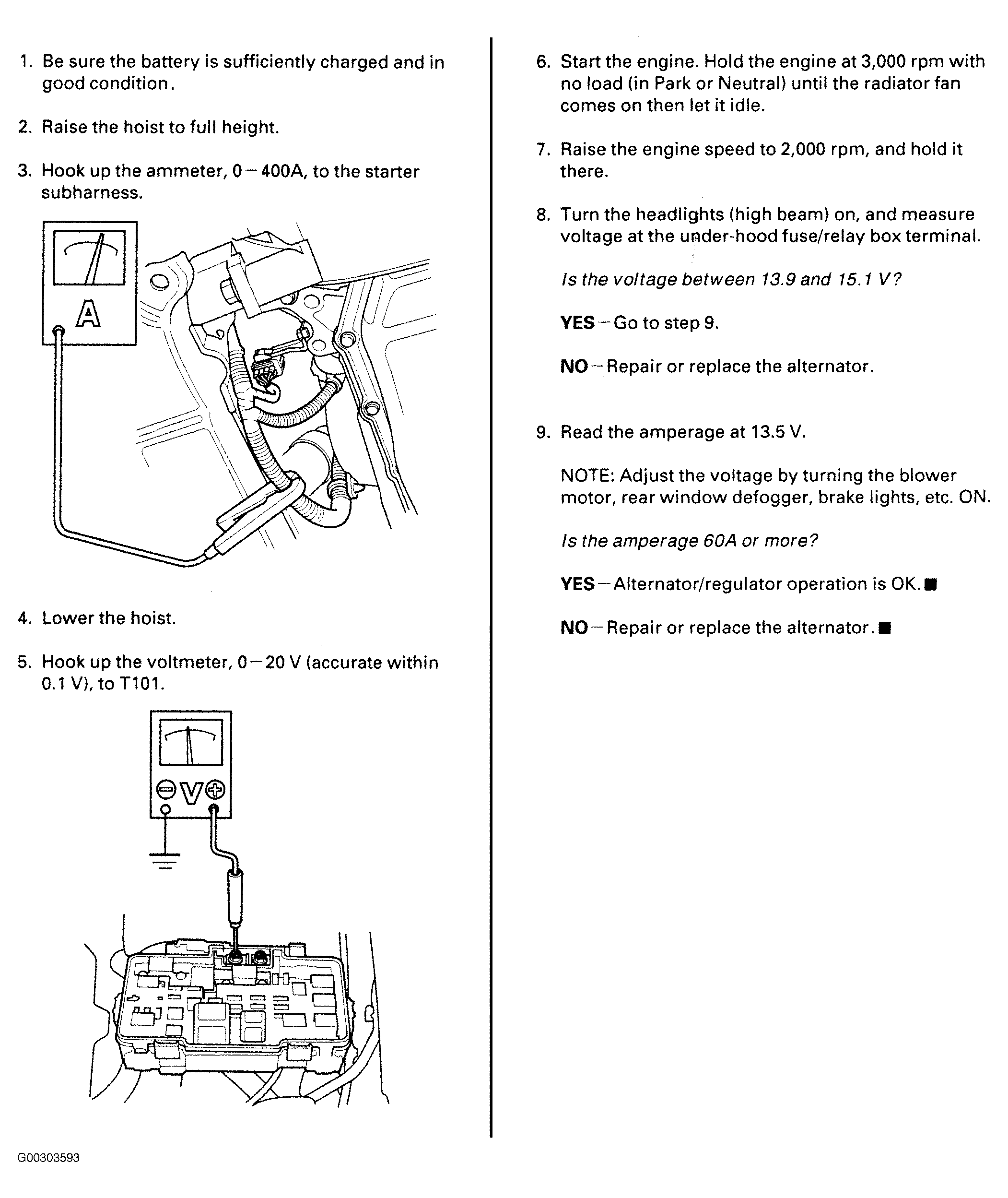

Fig 1: Alternator & Regulator Circuit Test
G00303593Courtesy of AMERICAN HONDA MOTOR CO., INC.
