Drive Motor Control Module: Testing and Inspection
System Descriptions

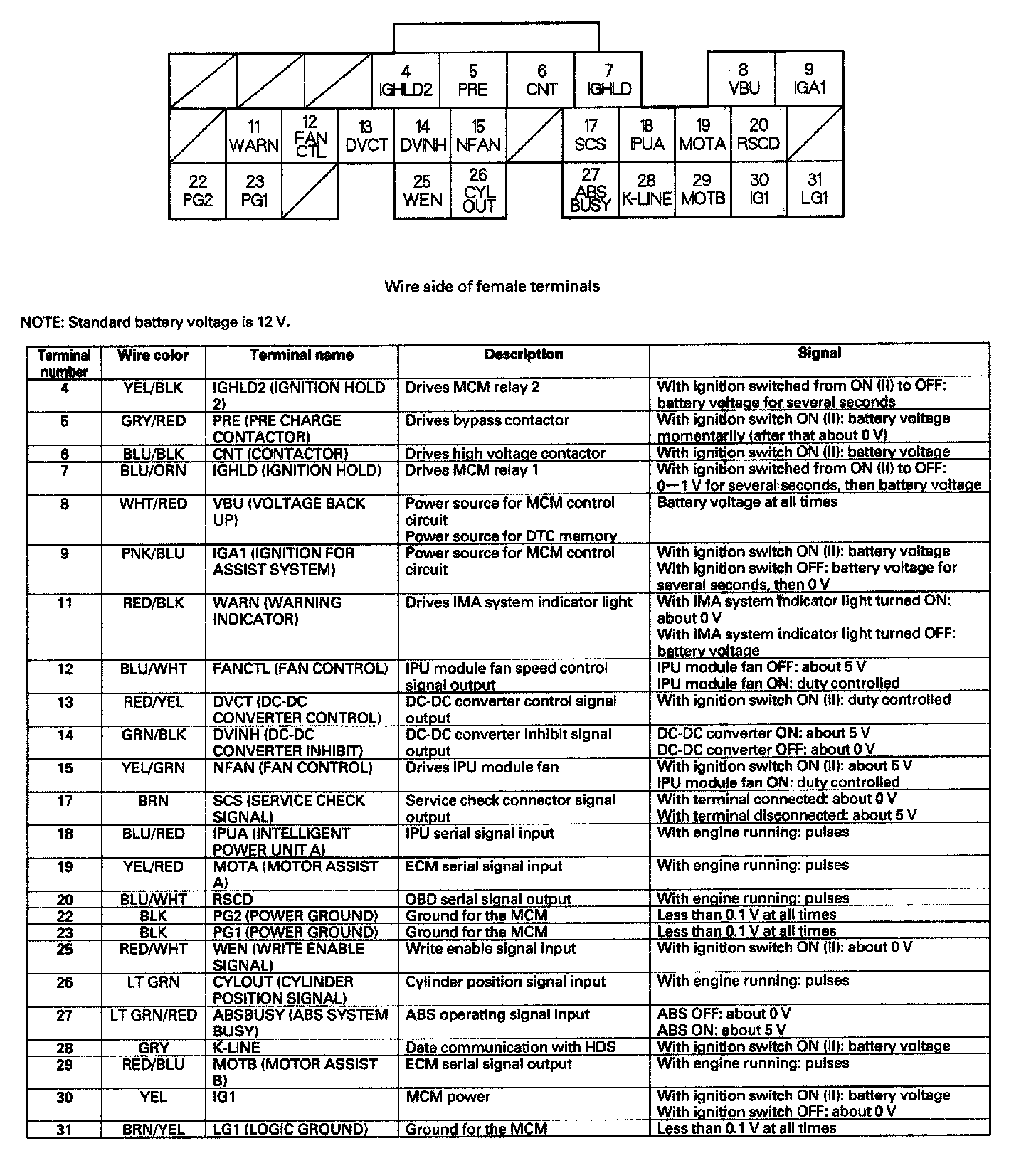

MCM Inputs and Outputs at Connector A (31P)
MCM Inputs and Outputs at Connector B (24P)
MCM Inputs and Outputs at Connector C (17P)
MCM Inputs and Outputs at Connector E (22P)

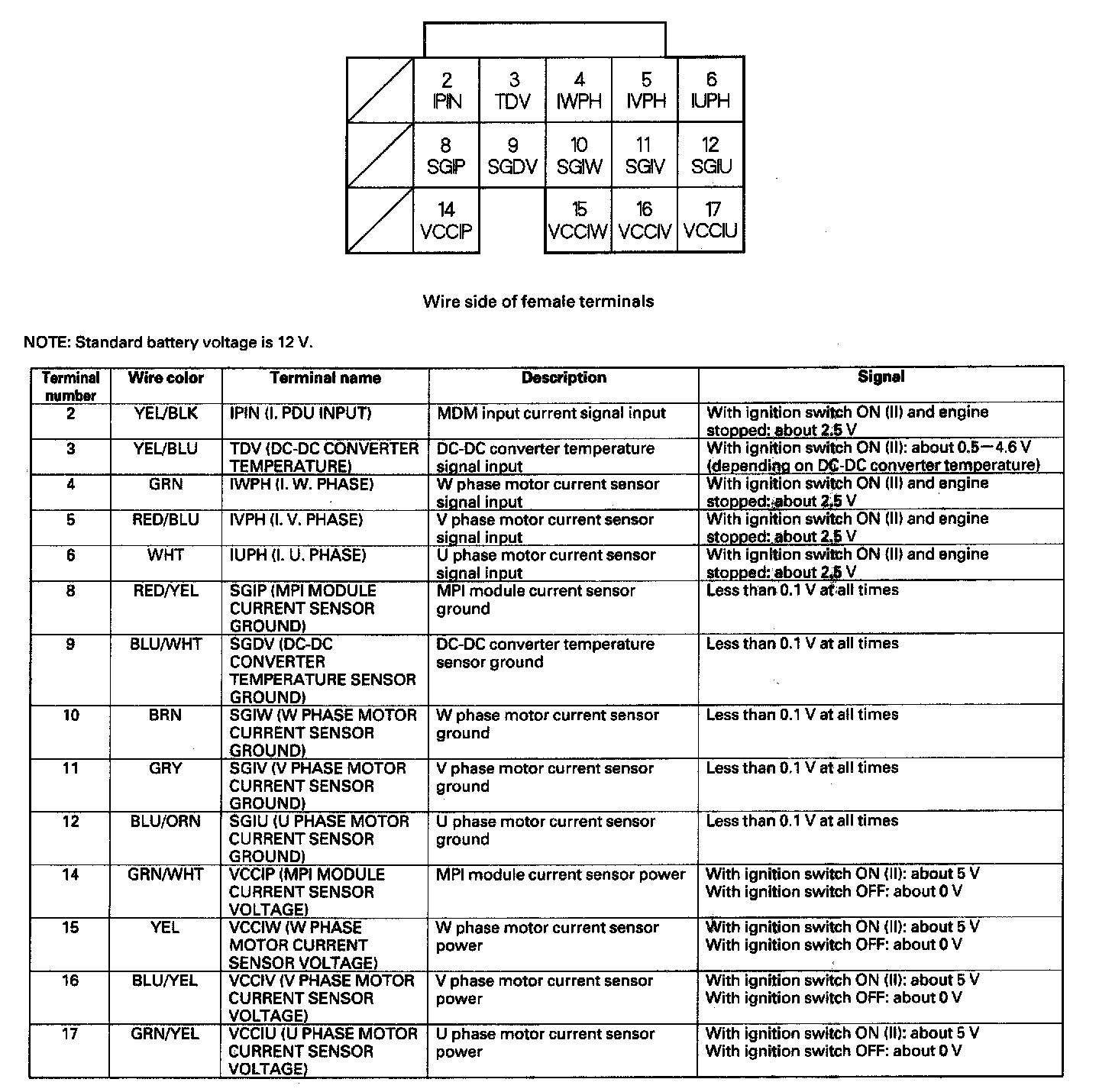

MCM Inputs and Outputs at Connector F (14P)
