Views 176-200: 185

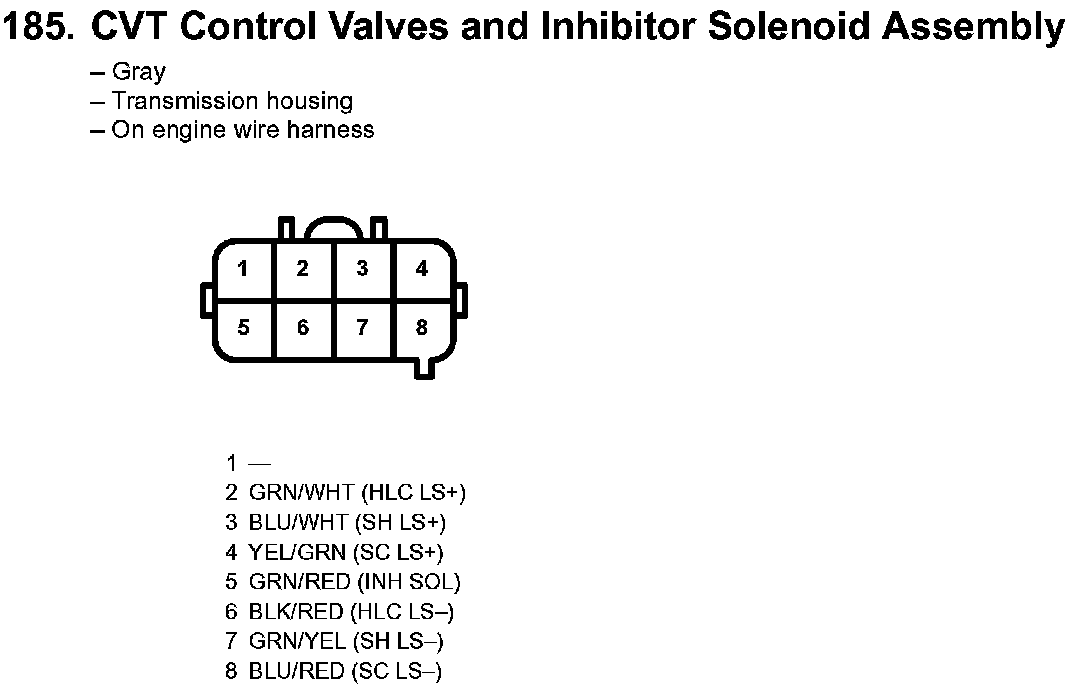

185. CVT Control Valves And Inhibitor Solenoid Assembly:

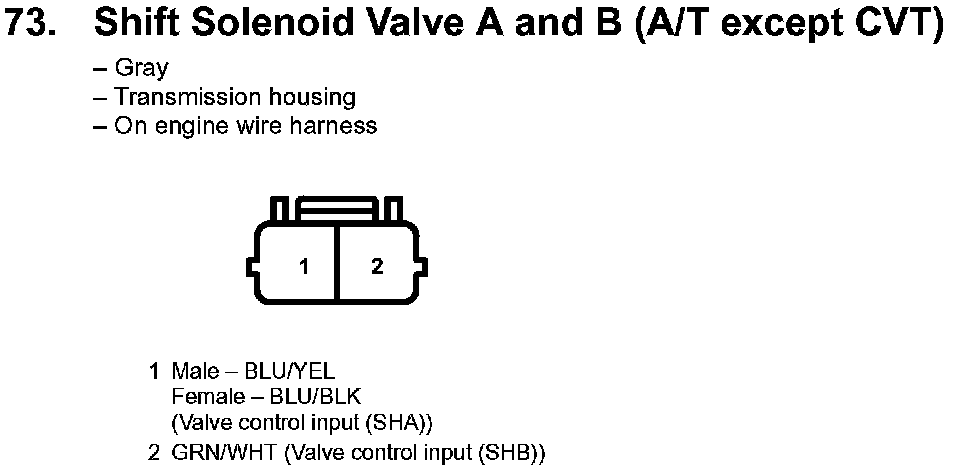

73. Shift Solenoid Valve A And B (A/T Except CVT):
