ECM/PCM Circuit Diagrams

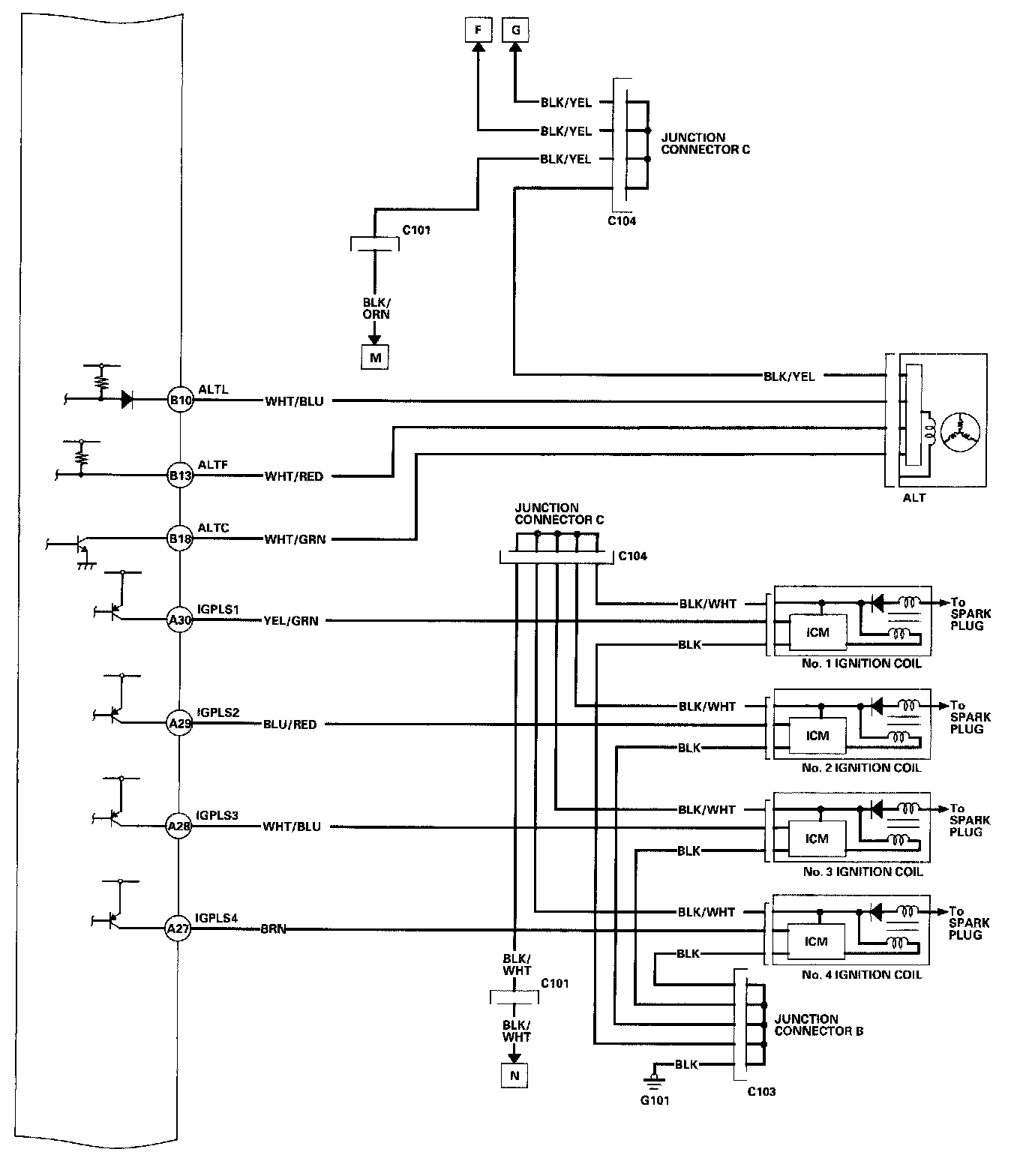

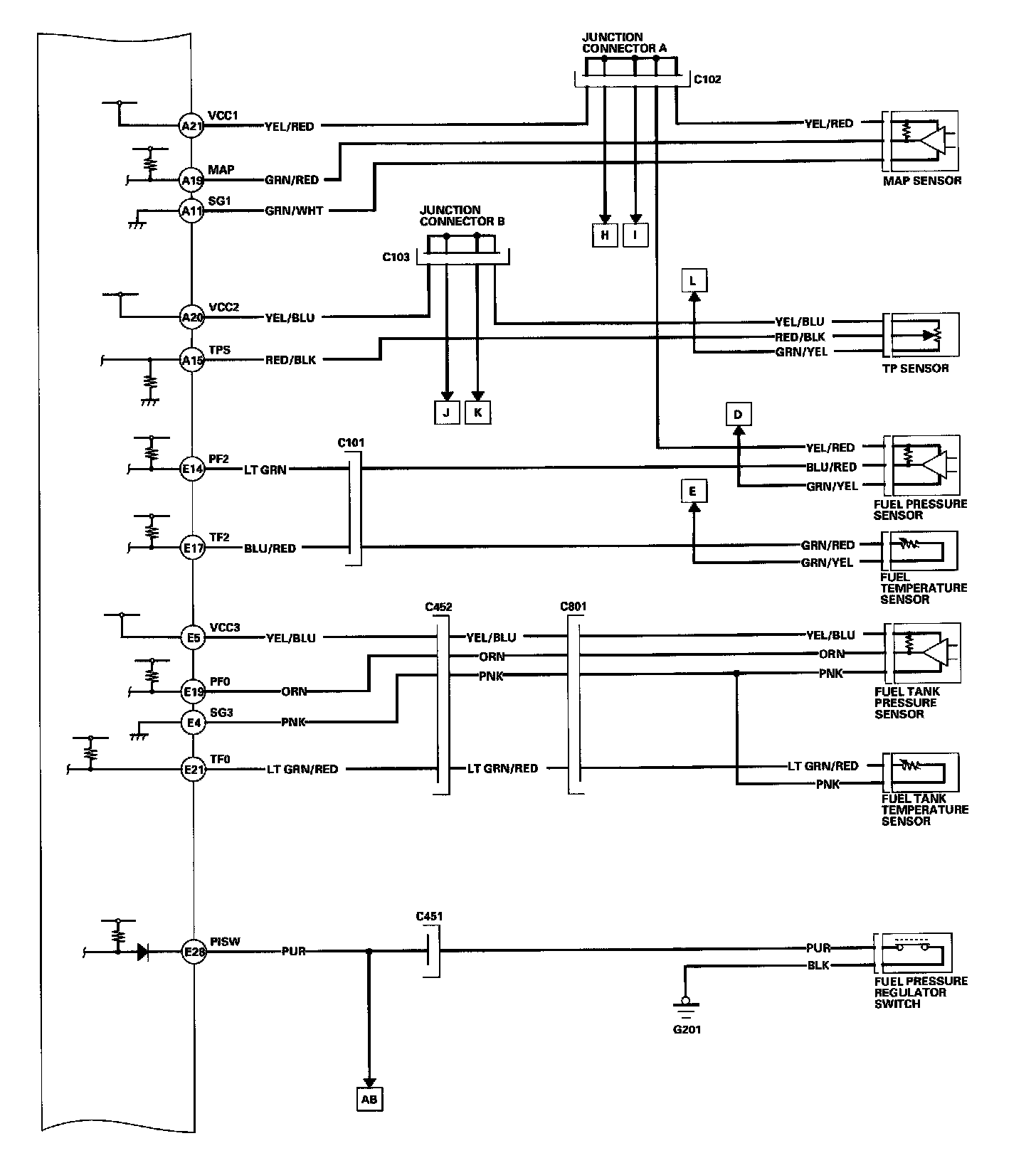

ECM/PCM Circuit Diagram 11-39:

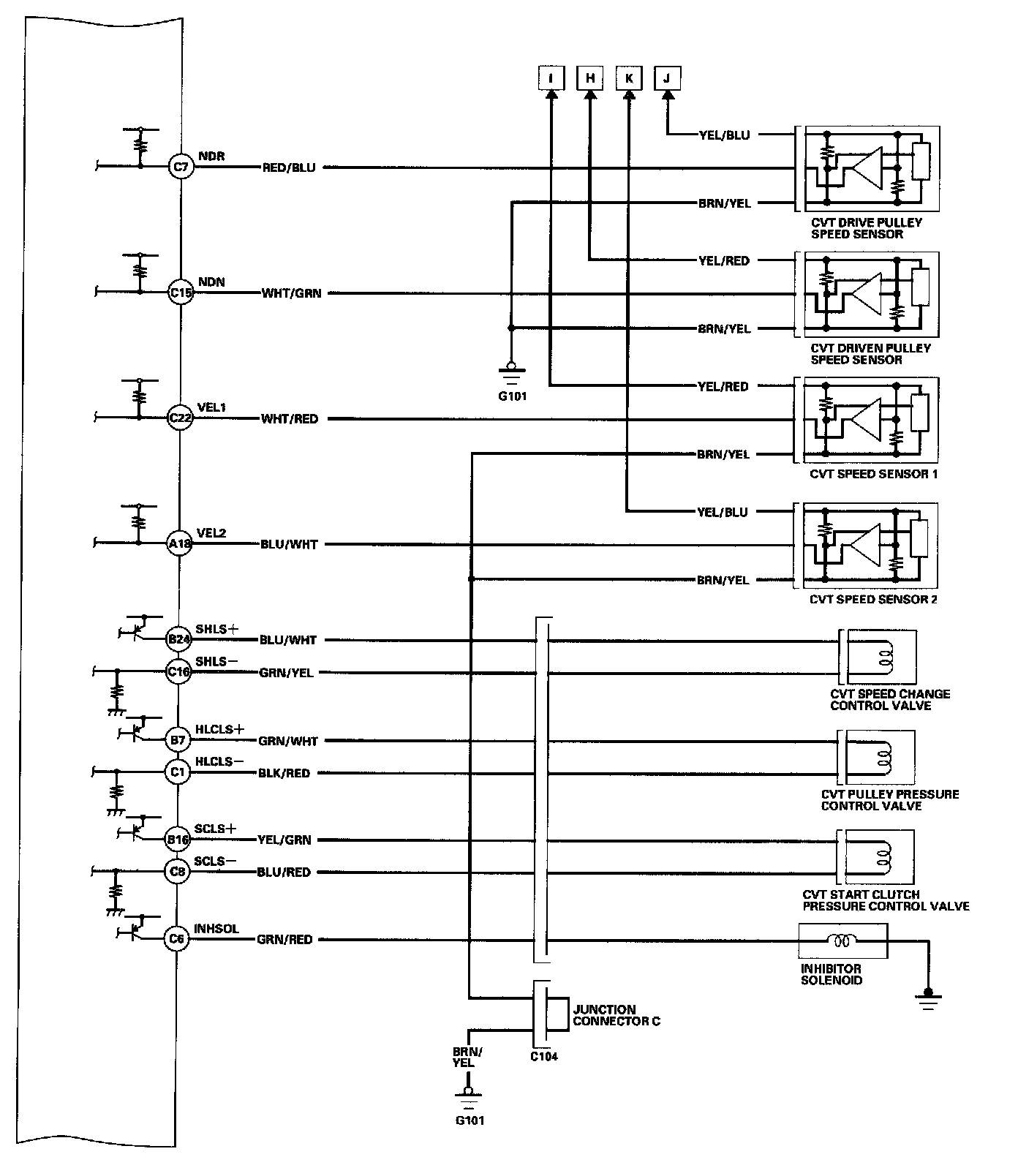

ECM/PCM Circuit Diagram 11-40:

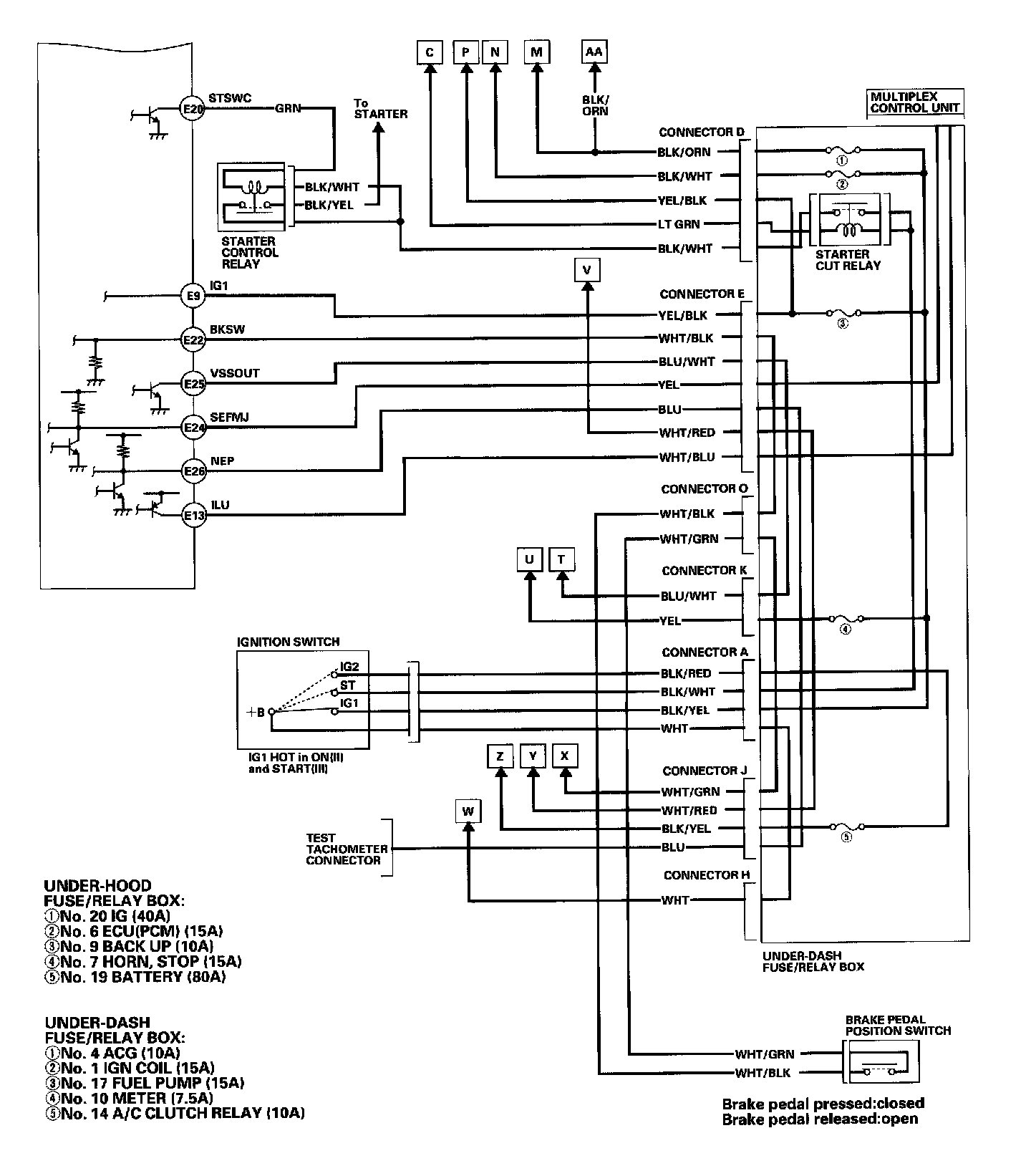

ECM/PCM Circuit Diagram 11-41:

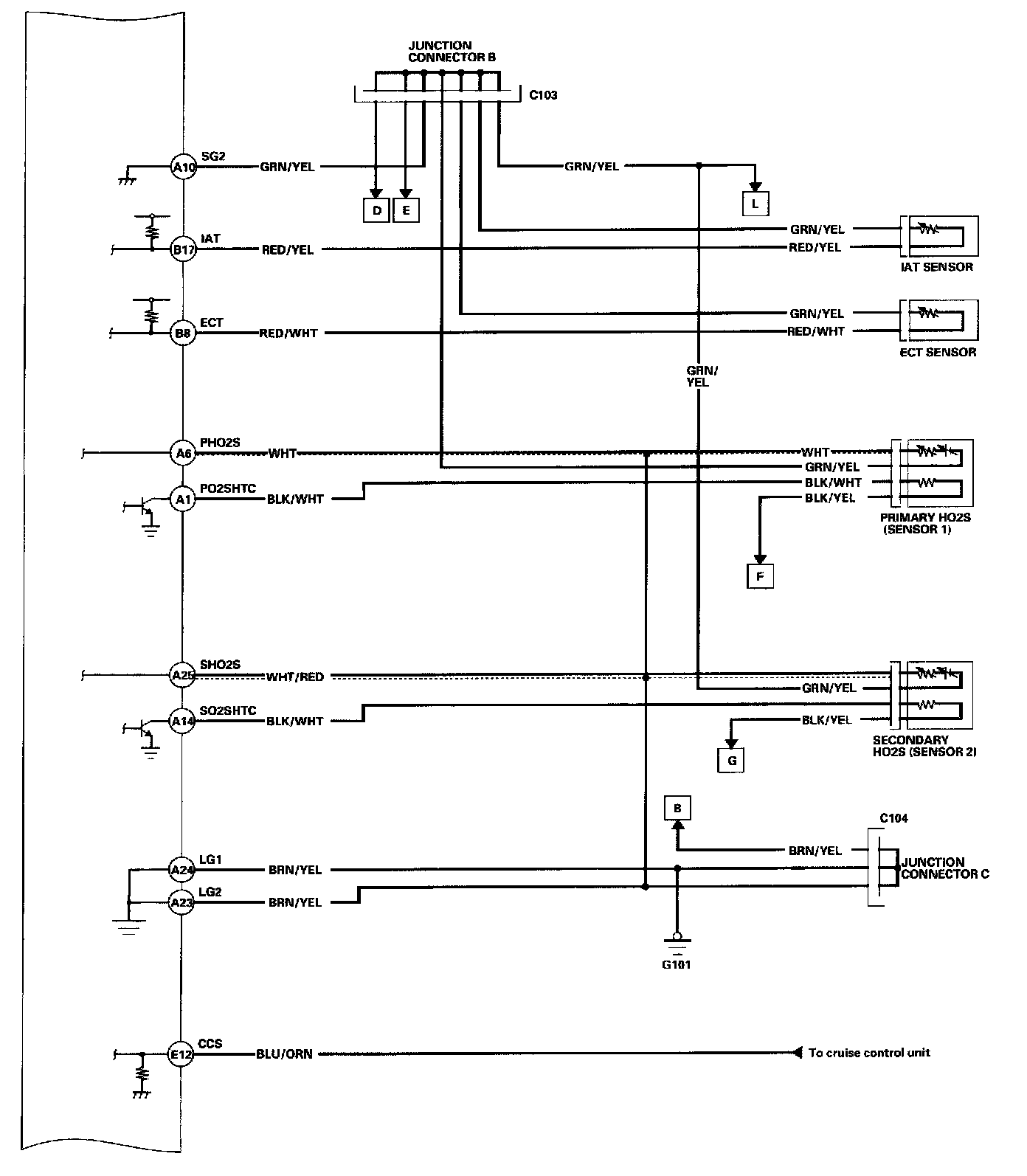

ECM/PCM Circuit Diagram 11-42:

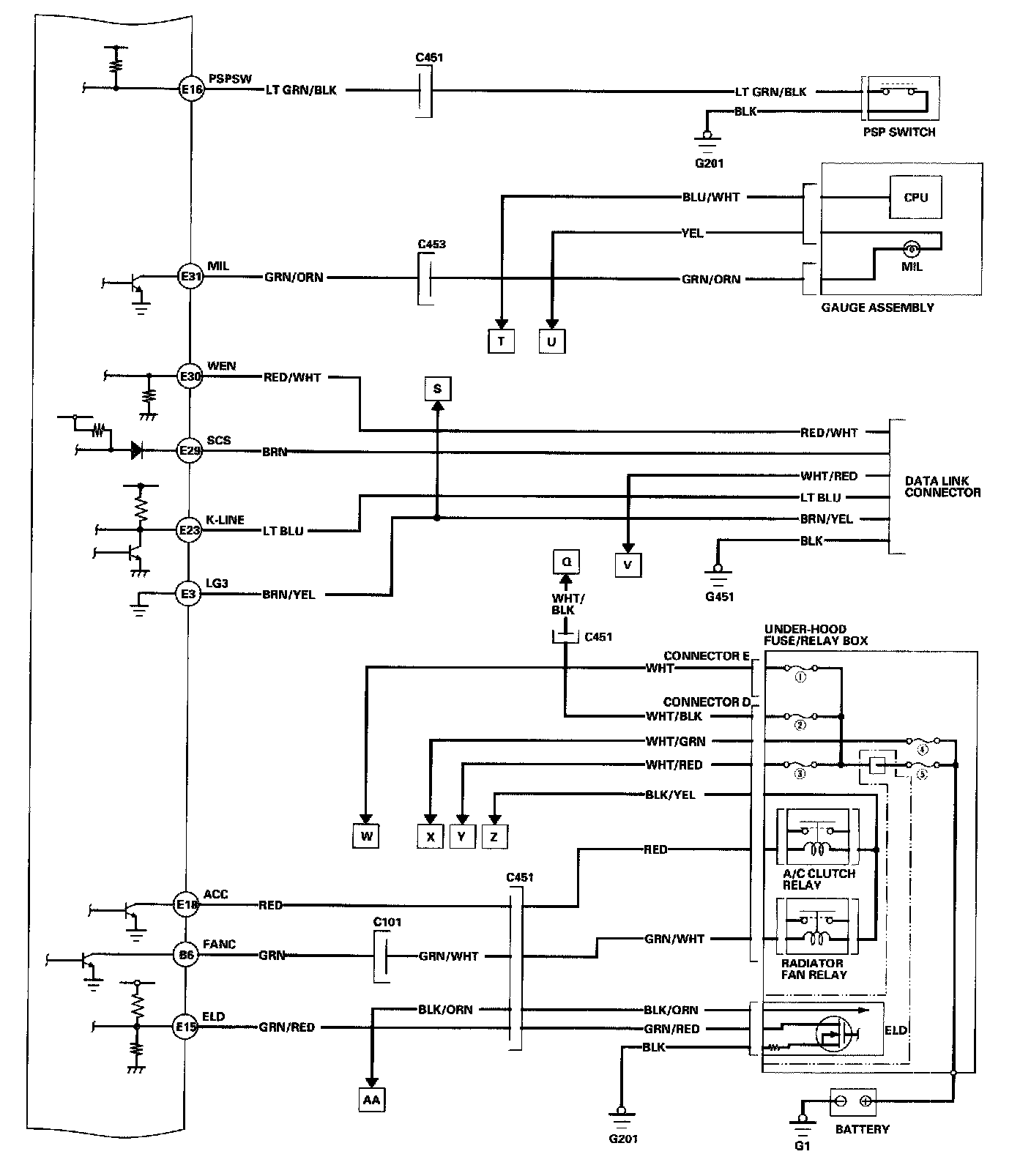

ECM/PCM Circuit Diagram 11-43:

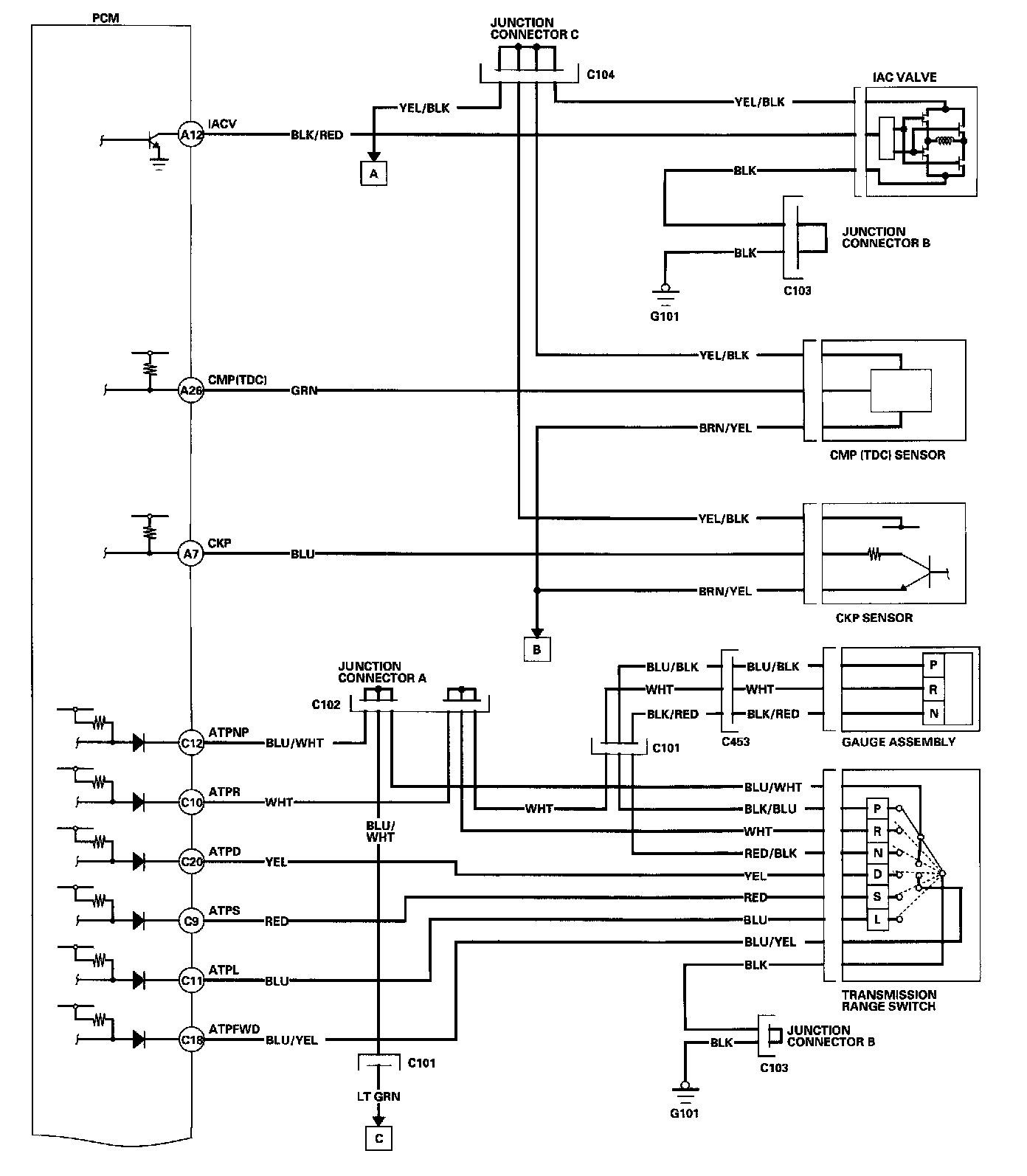

ECM/PCM Circuit Diagram 11-44:

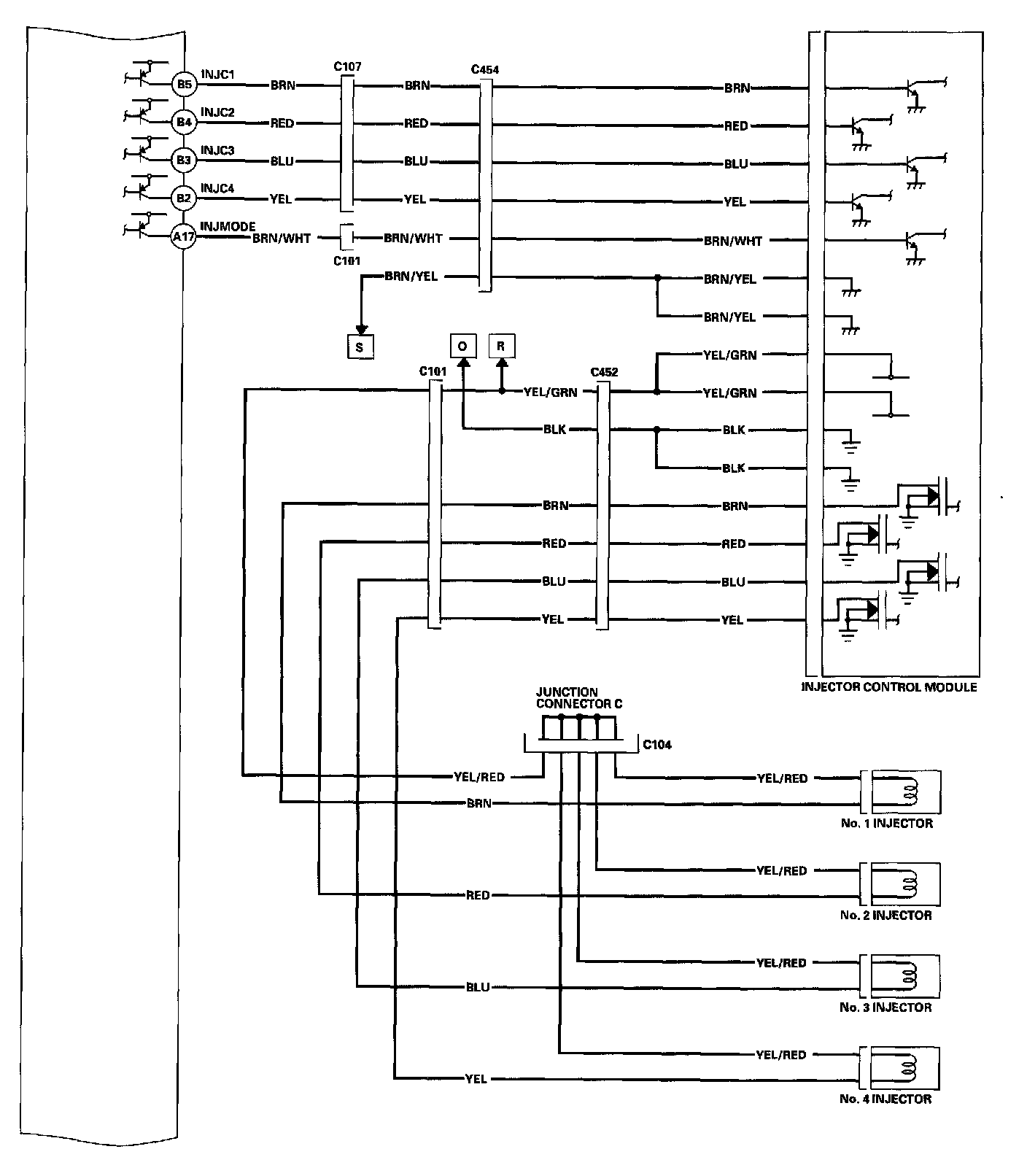

ECM/PCM Circuit Diagram 11-45:

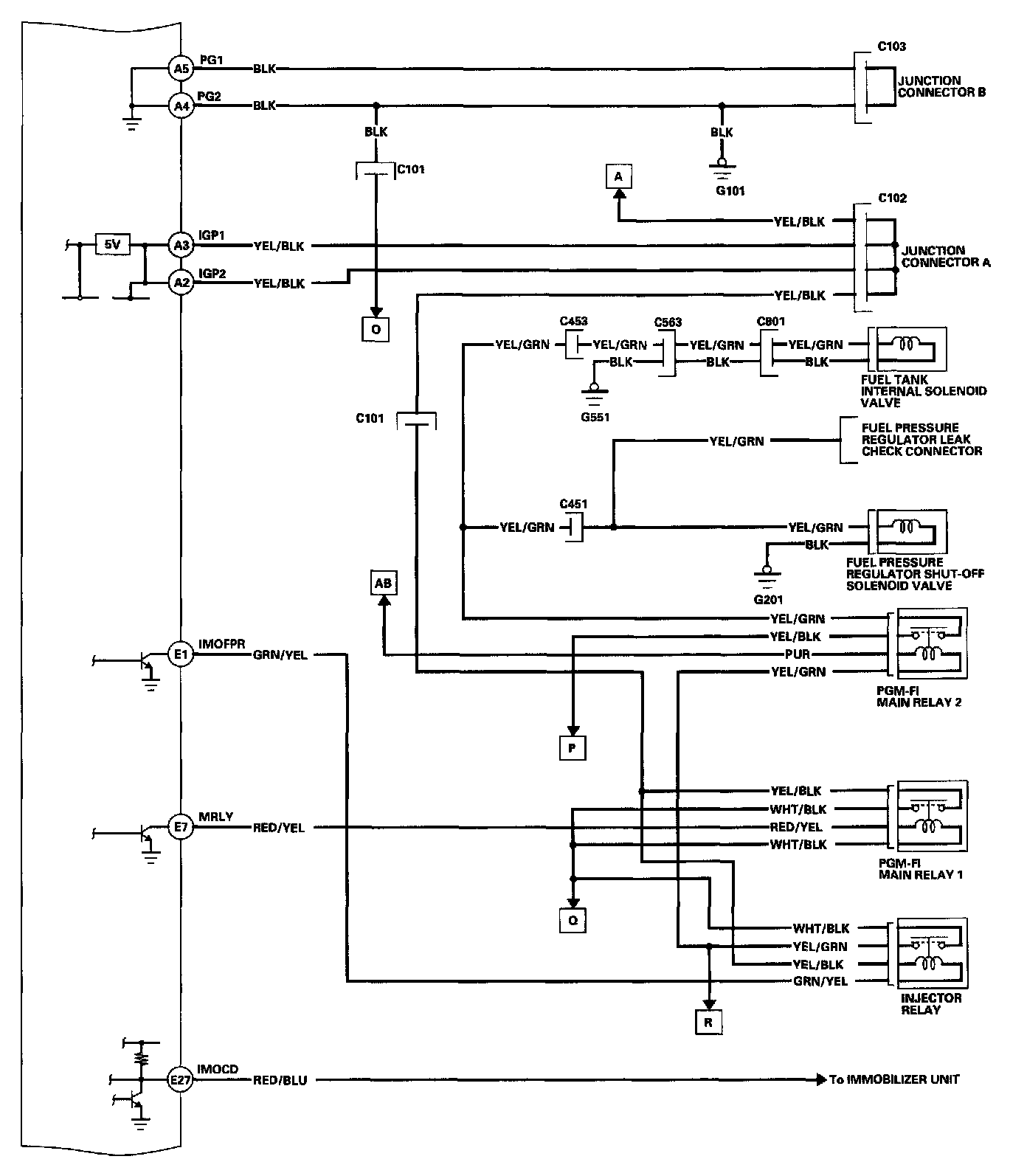

ECM/PCM Circuit Diagram 11-46:




ECM/PC< Circuit Diagram 11-47:
