Intake Manifold

Intake Manifold and Exhaust System

Intake Manifold And Exhaust System - Component Location Index:

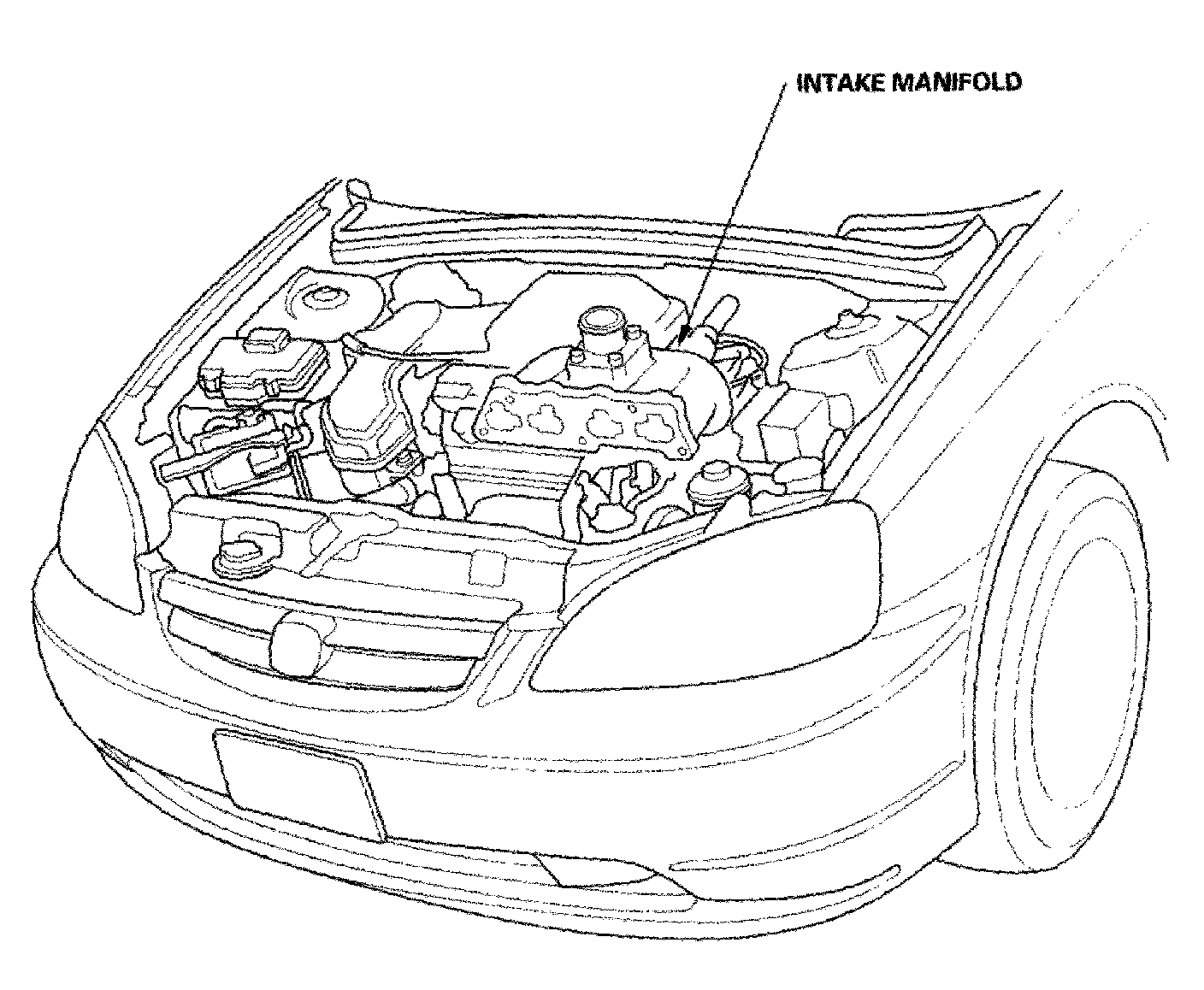

Component Location Index

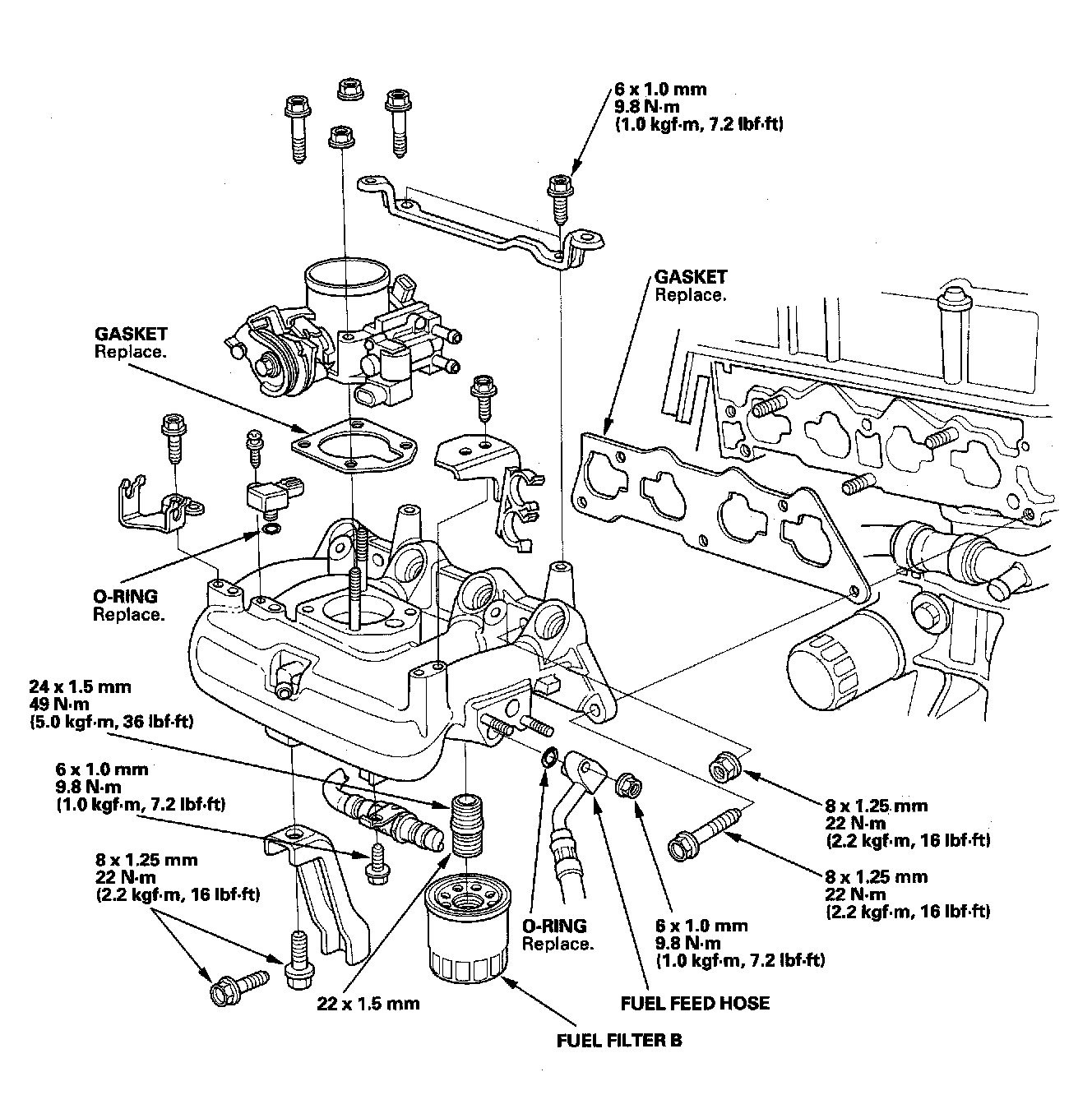

Exploded View

NOTE: Use new O-rings and gasket when reassembling.
