Connector Locations

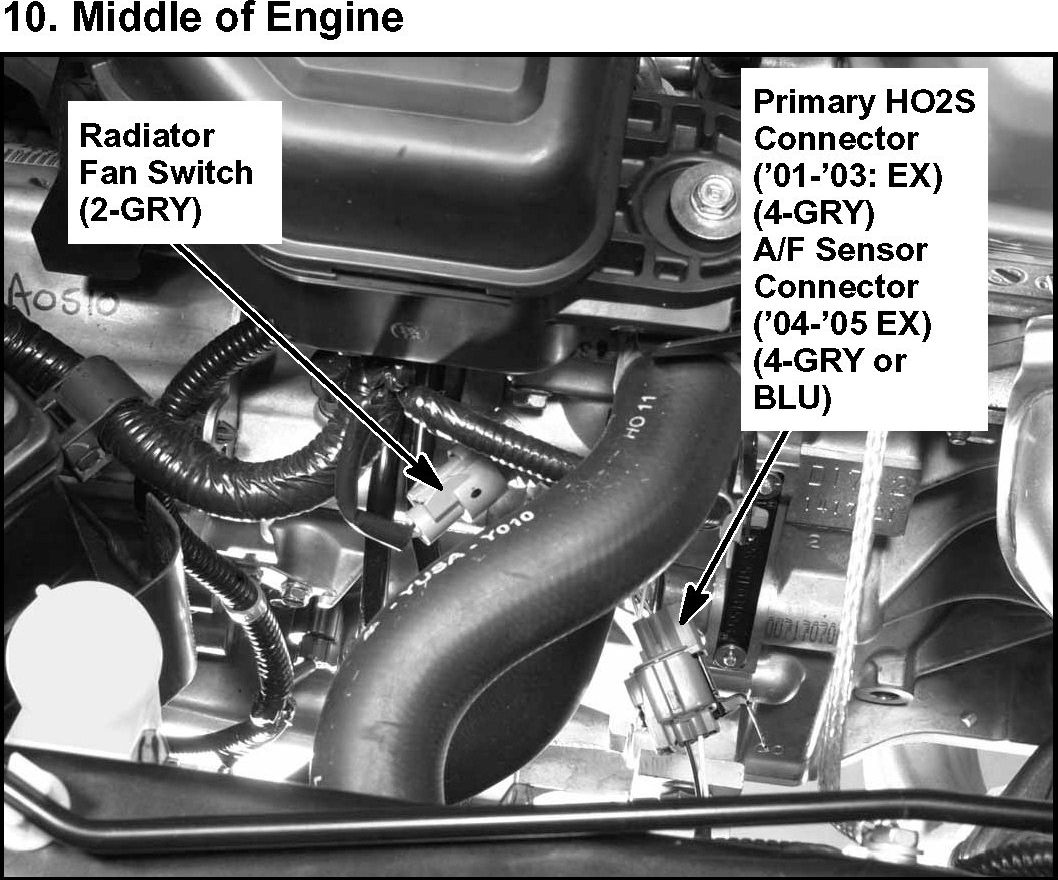

10. Middle Of Engine:

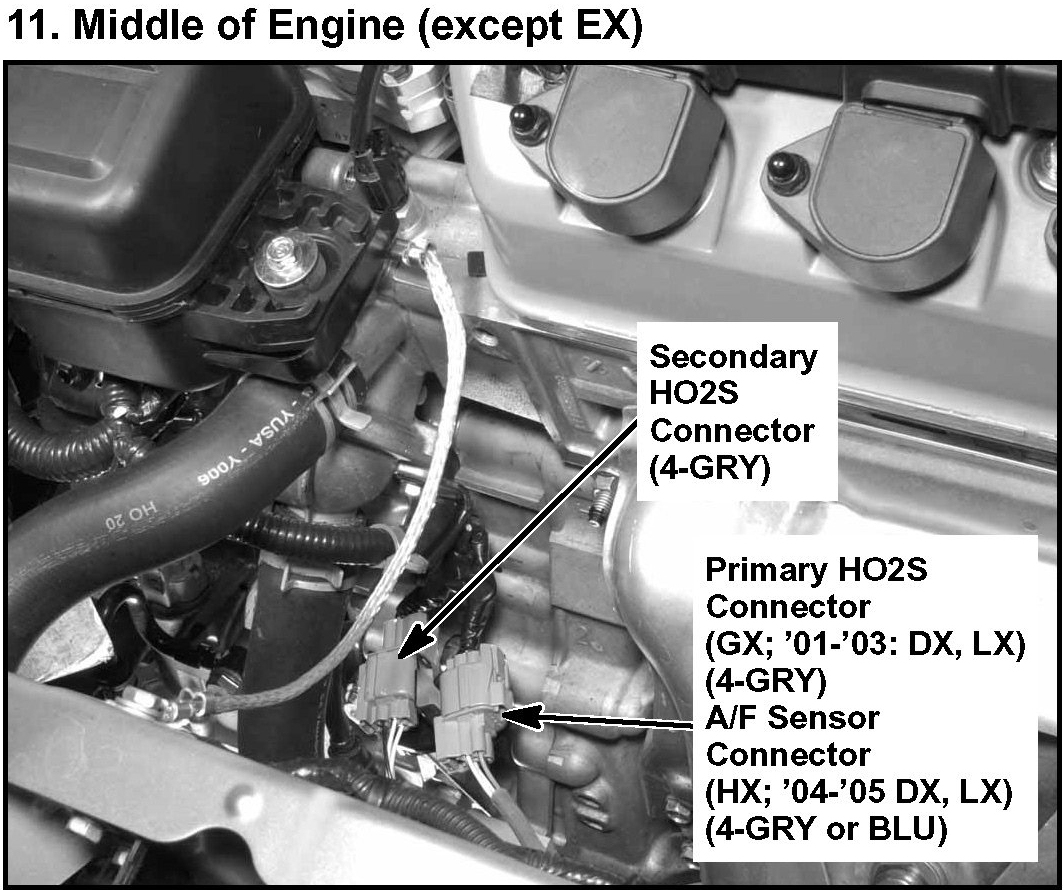

11. Middle Of Engine (except EX):

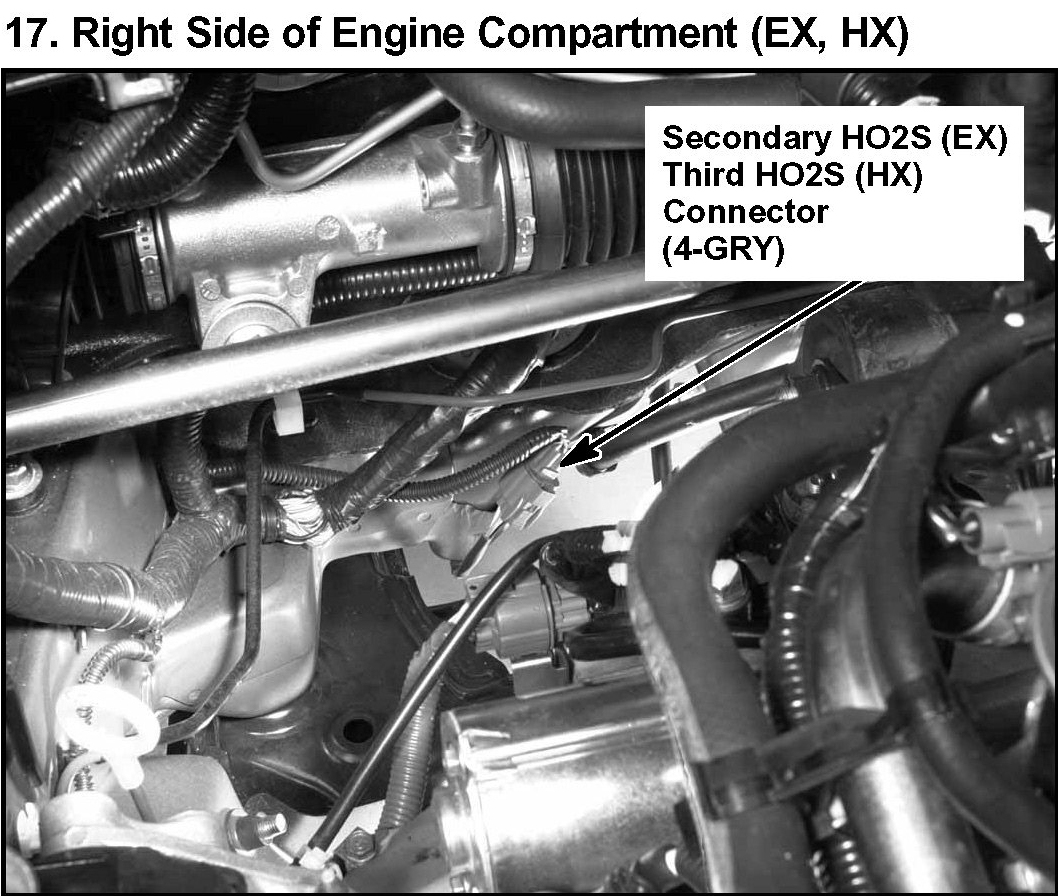

17. Right Side Of Engine Compartment (EX, HX):
