Standards and Service Limits

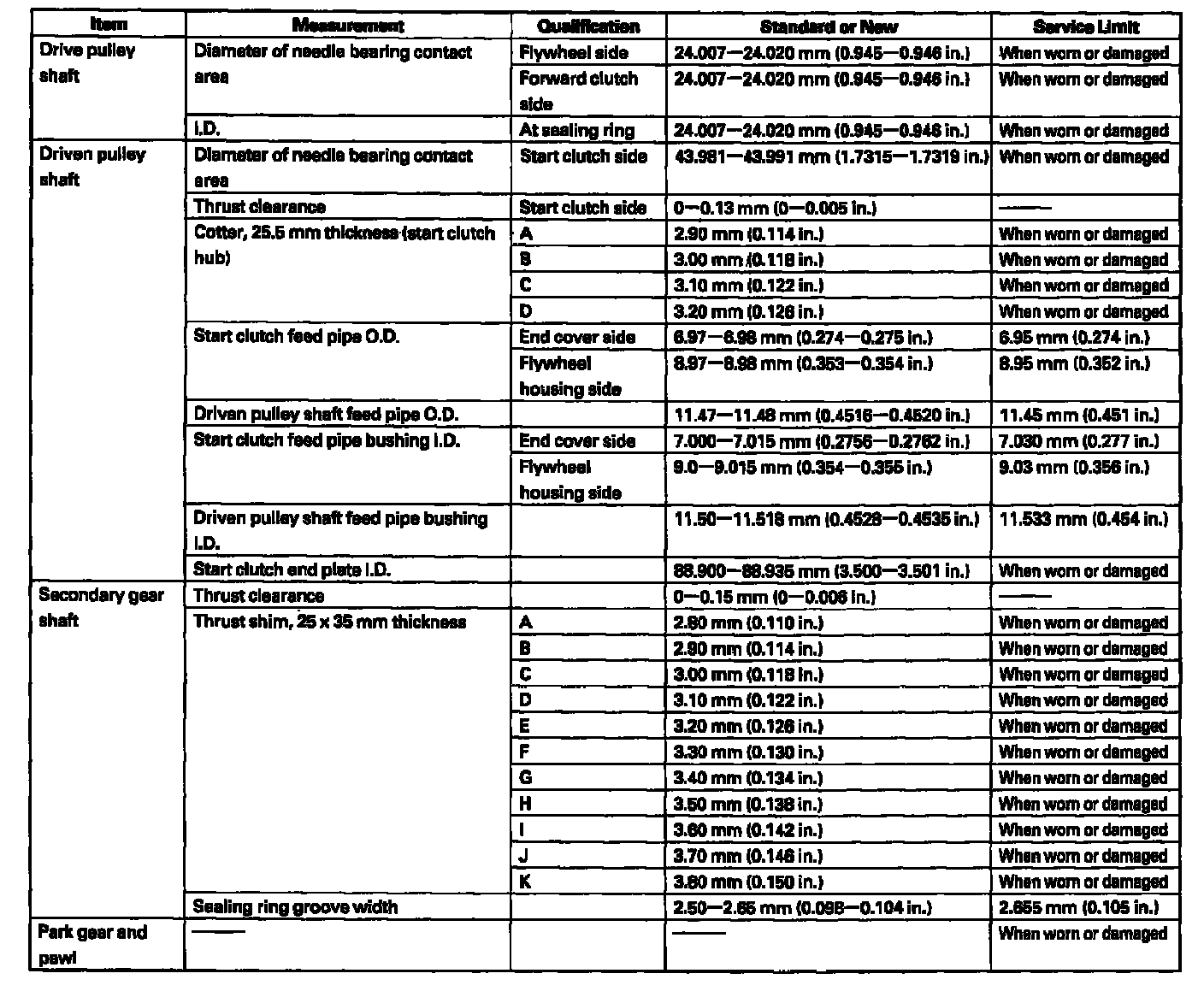

CVT and Differential - Part 1:

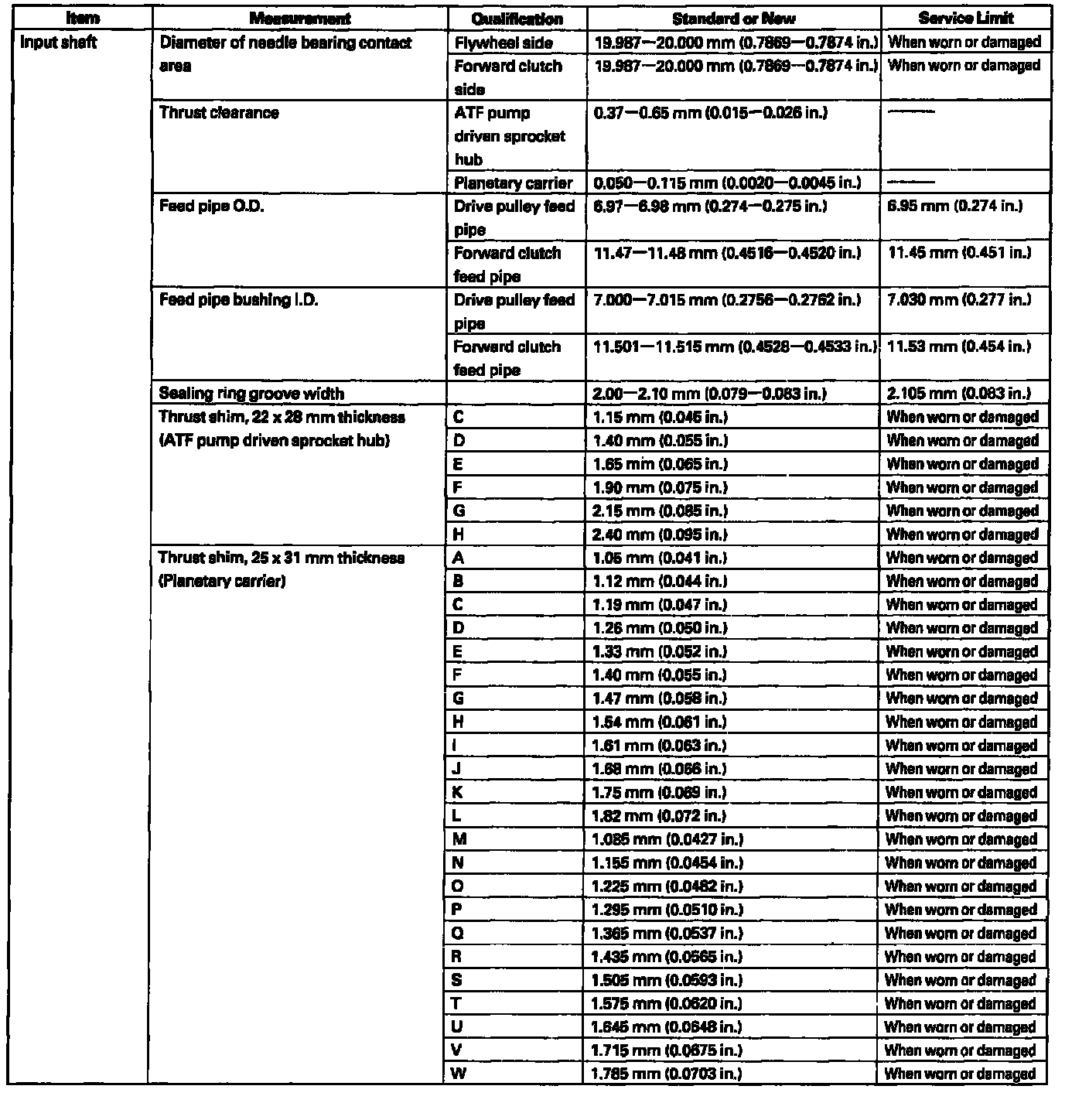

CVT and Differential - Part 2:

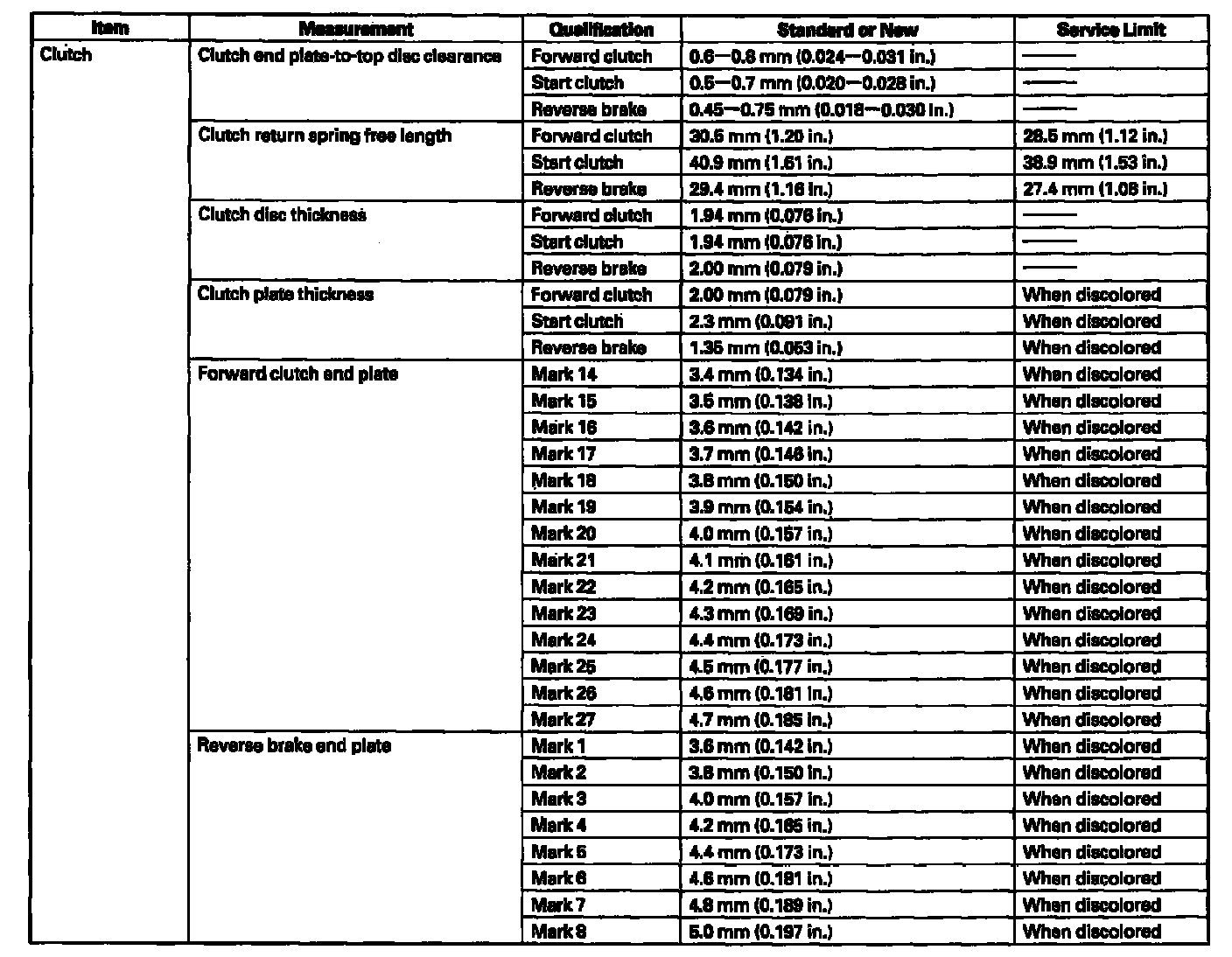

CVT and Differential - Part 3:

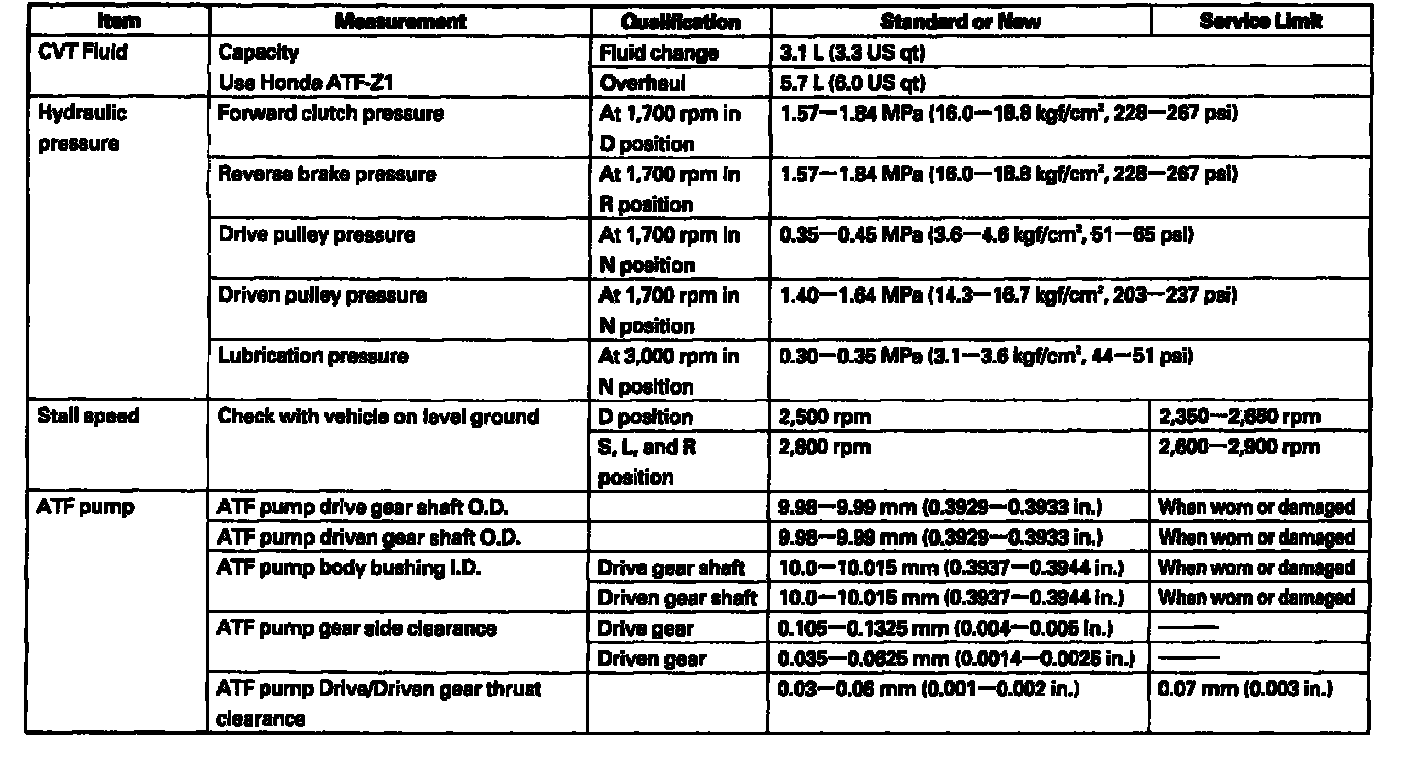

CVT and Differential - Part 4:



CVT and Differential - Part 5:
