Cruise Control Unit Input Test

SRS components are located in this area. Review the SRS component locations and precautions and procedures in the SRS before performing repairs or service. See appropriate AIR BAG RESTRAINT SYSTEMS article.

1. Disconnect the 14P connector from the control unit.
2. Inspect the connector and socket terminals to be sure they are all making good contact.
   • If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
   • If the terminals look OK, go to step 3.

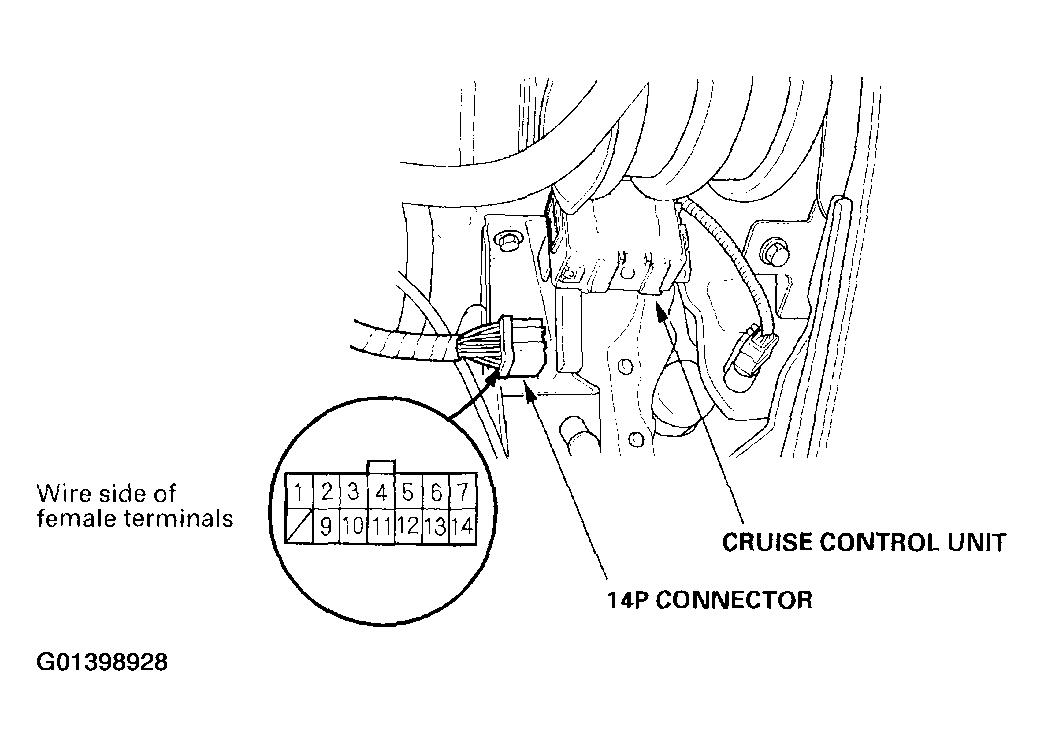

   Fig 1: Identifying Cruise Control Unit Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. With the 14P connector disconnected, make these input tests.

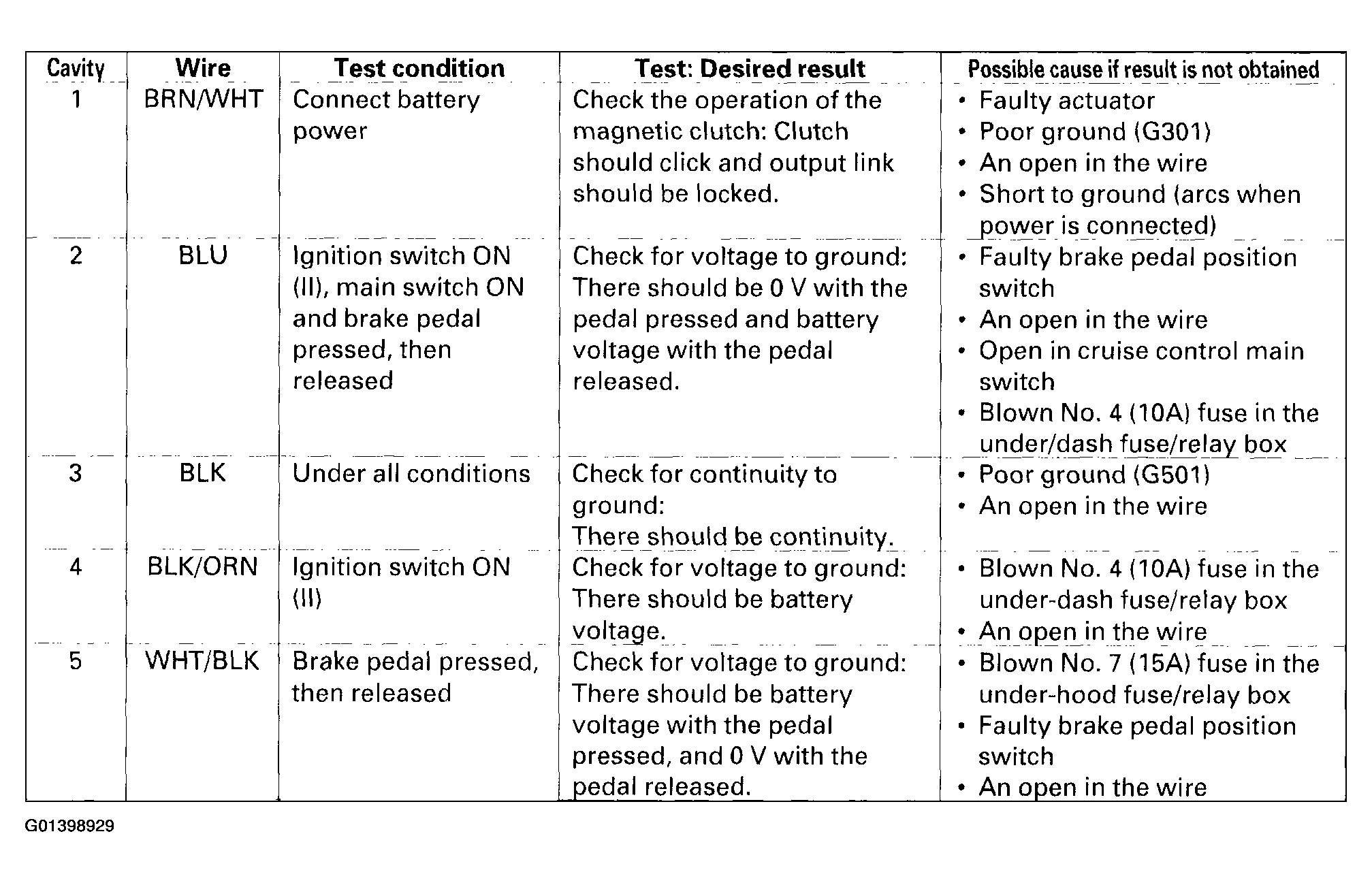

   Fig 2: Cruise Control Unit Input Test (Disconnected - 1 Of 2)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

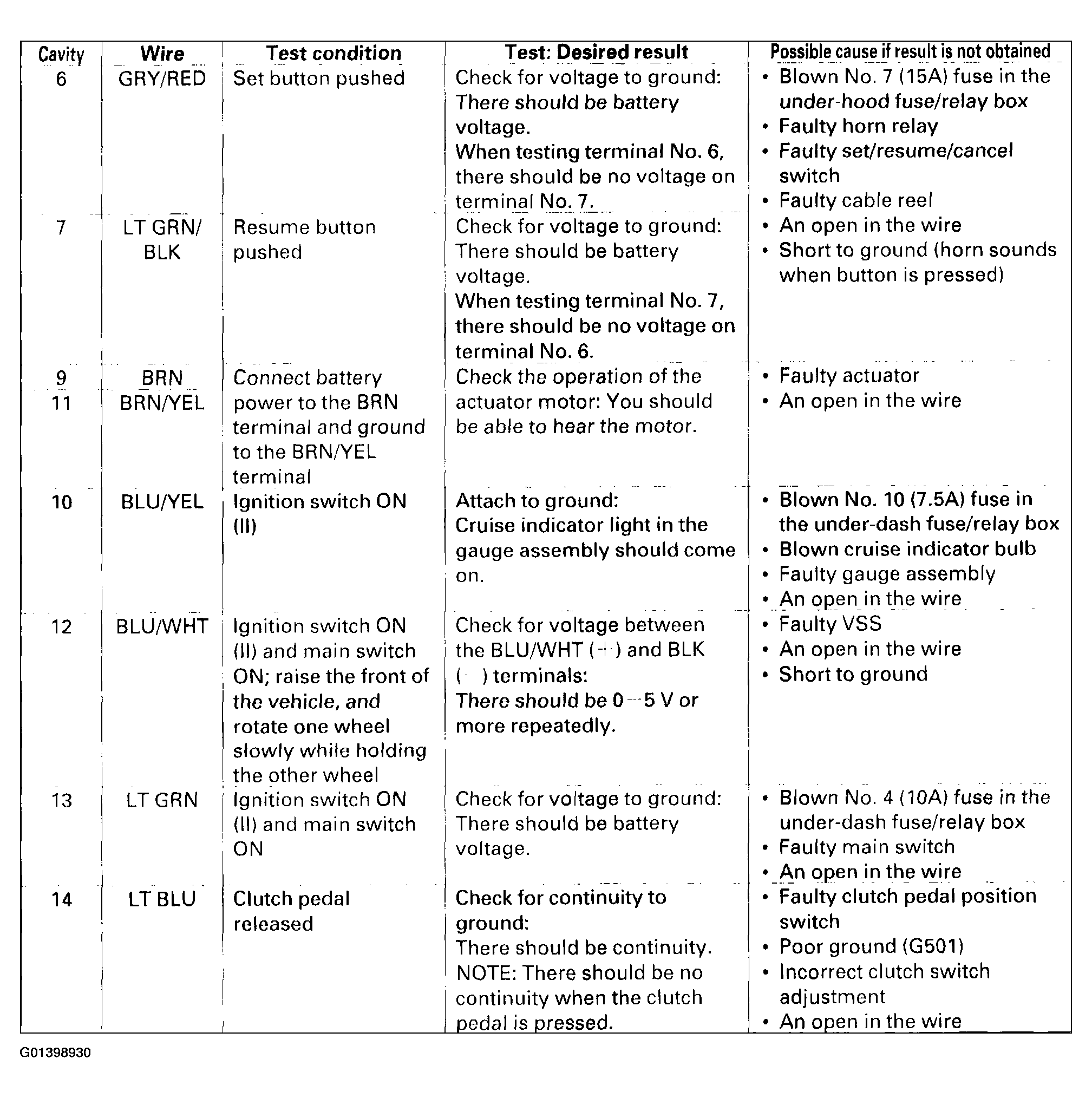

   Fig 3: Cruise Control Unit Input Test (Disconnected - 2 Of 2)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. If any test indicates a problem, find and correct the cause, then recheck the system. If all the input tests prove OK, the cruise control unit may be faulty. Substitute a known-good cruise control unit and retest. If the system works properly, replace the cruise control unit.
