EVAP Canister Replacement

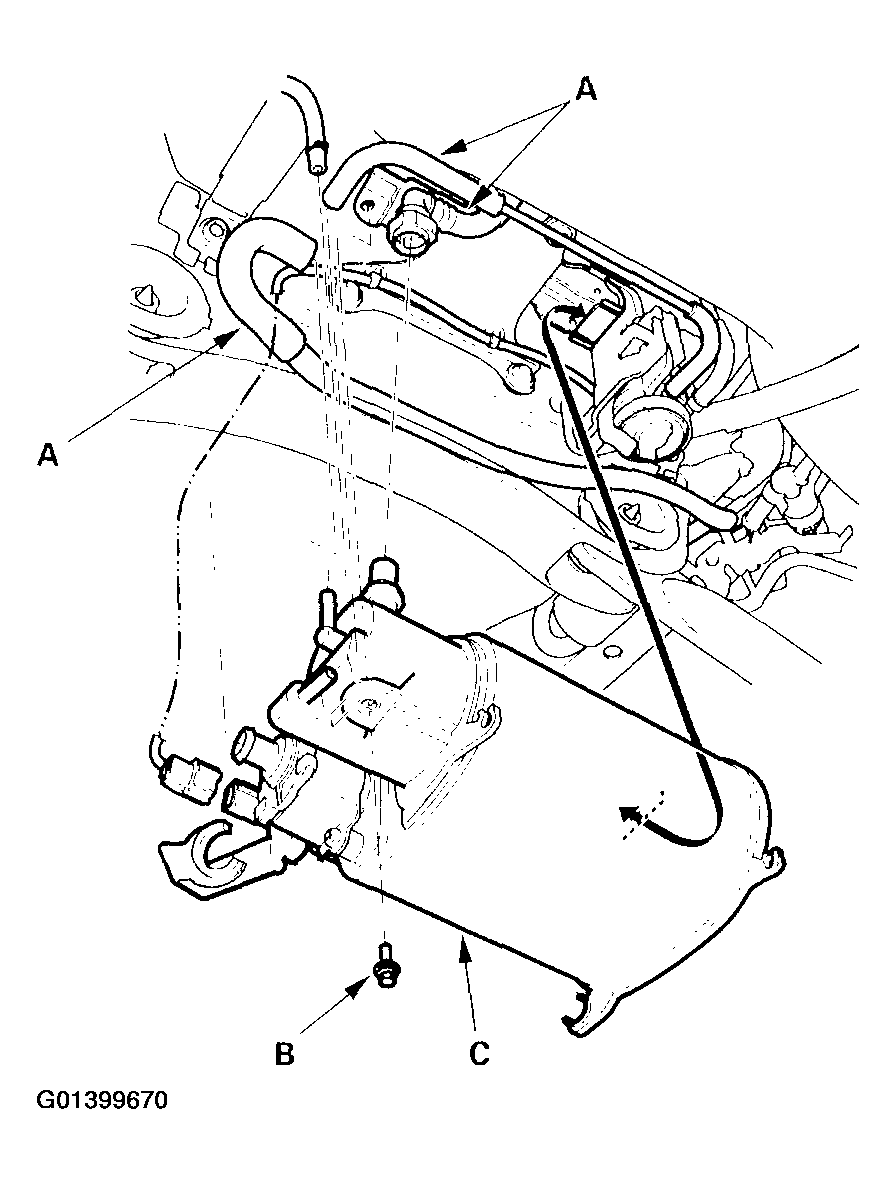

- Remove the vacuum hoses (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the bolt (B).
- Remove the EVAP canister (C).
- Install in the reverse order of removal.
