Knock Sensor Replacement

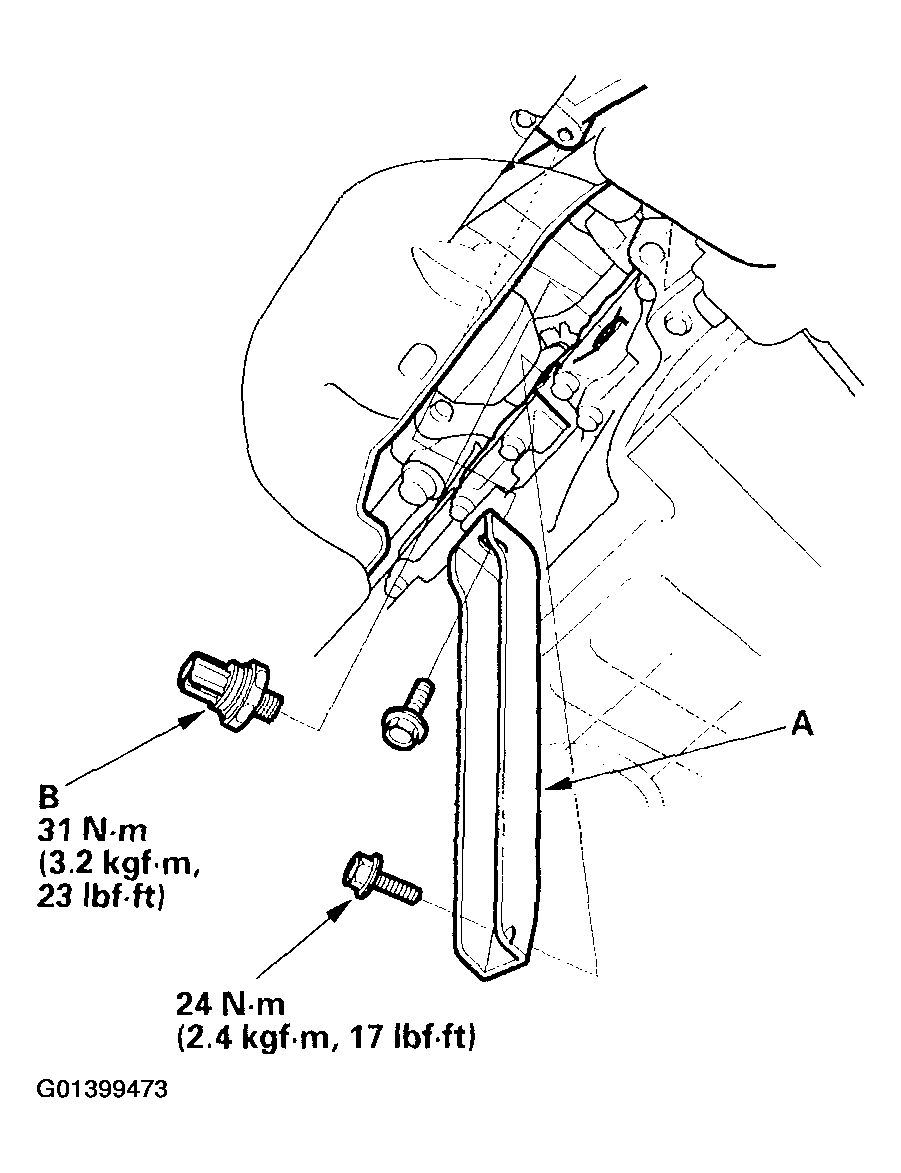

- Remove the intake manifold bracket (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the knock sensor 1P connector.
- Remove the knock sensor (B).
- Install the sensor in the reverse order of removal.
