Maintenance: Diagrams

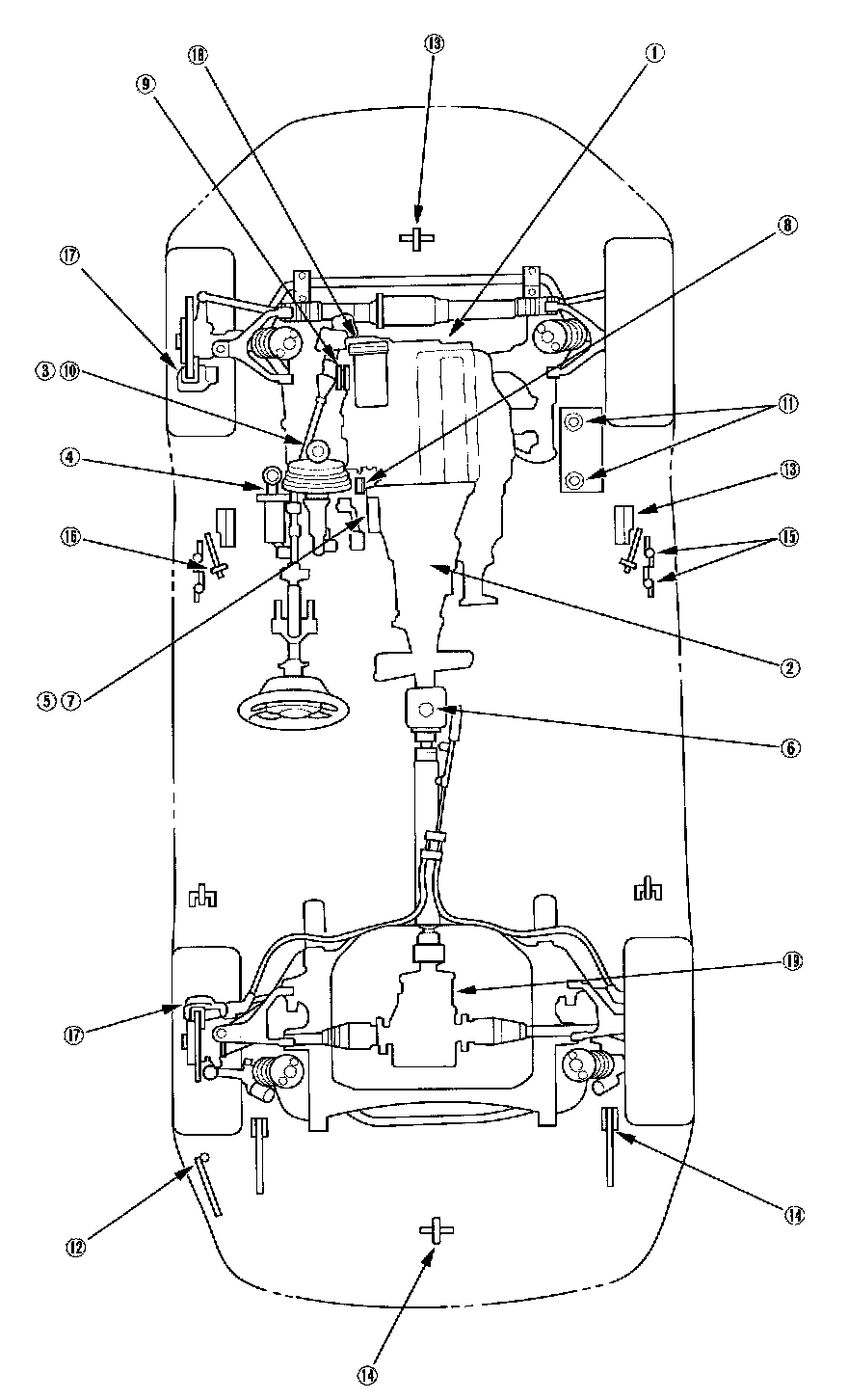

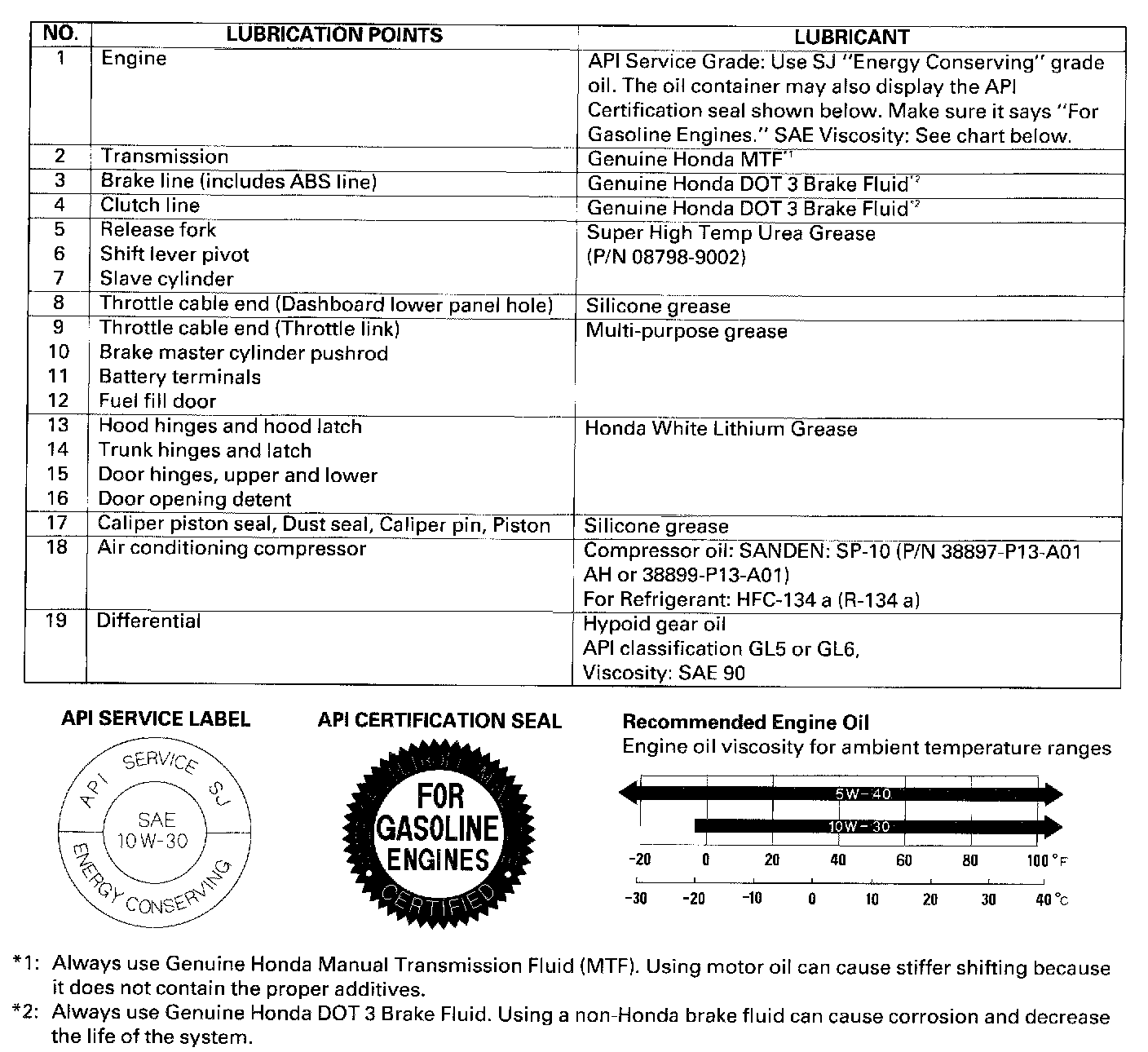

For the details of Lubrication points and type of lubricants to be applied, refer to the illustrated index and various work procedures (such as Assembly/Reassembly, Replacements, Overhaul, Installation, etc.,).





NOTE: Lubricate all hinges, latches and locks once a year. In corrosive areas, more frequent lubrication is necessary. We recommend Honda White Lithium Grease.
