Air Cleaner Housing: Service and Repair

Air Cleaner Removal/Installation

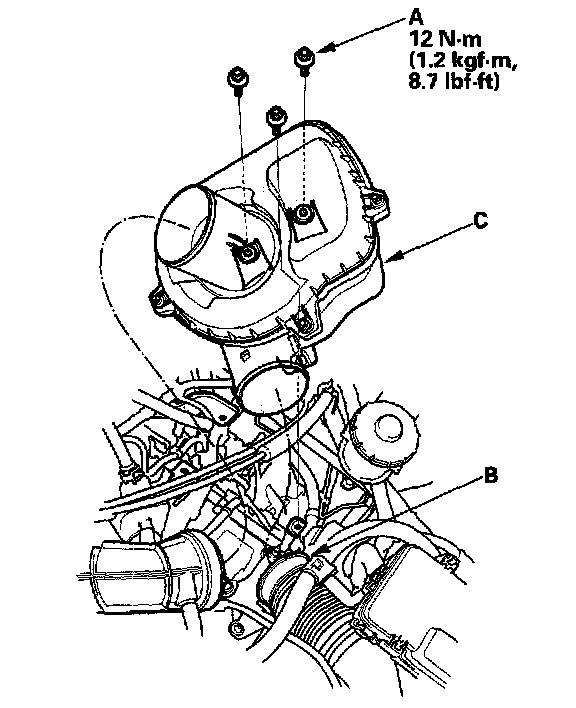

1. Remove the bolts (A) and the clamp (B).
2. Remove the air cleaner (C).
3. Install the parts in the reverse order of removal.
