Windshield Washer Hose: Service and Repair

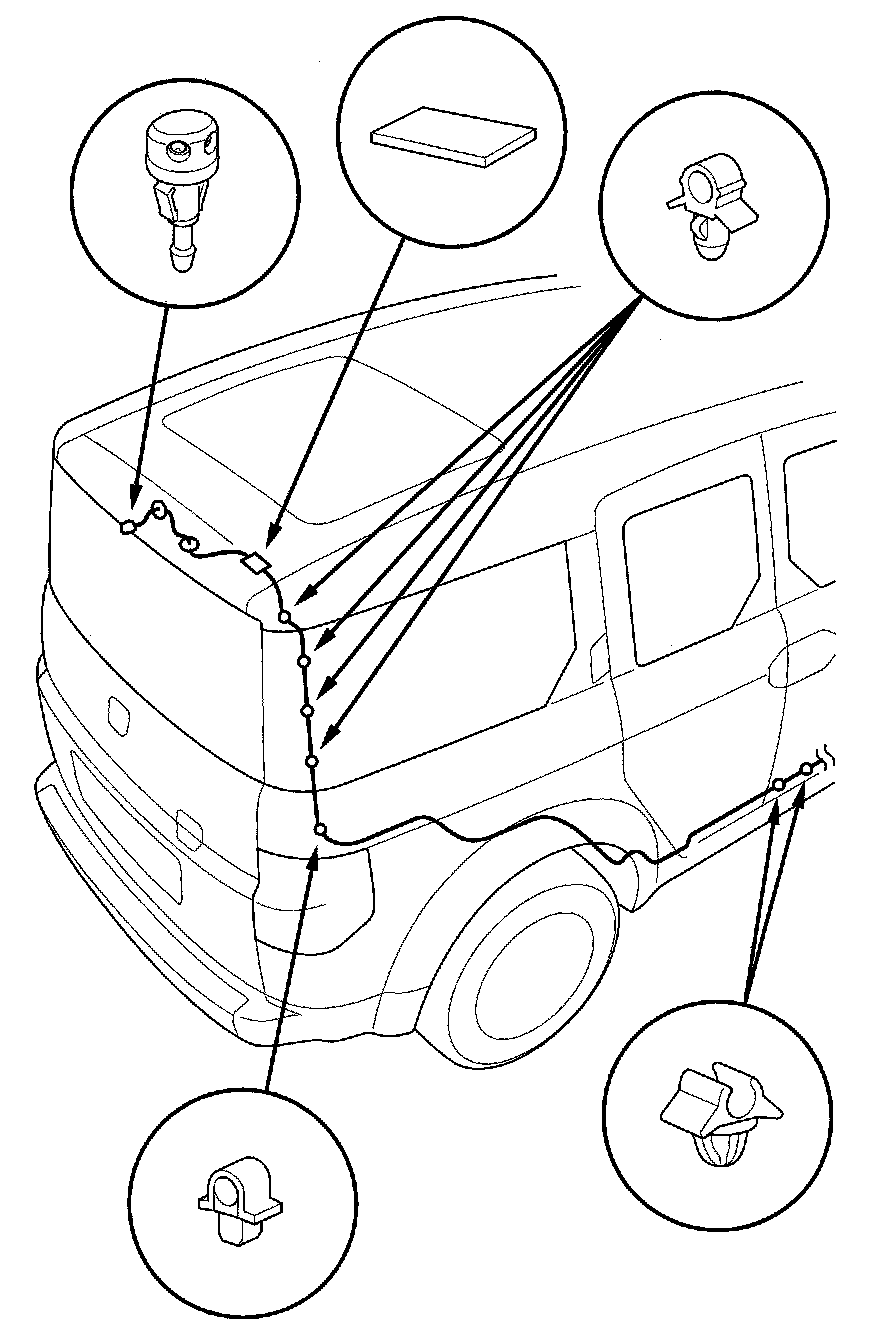

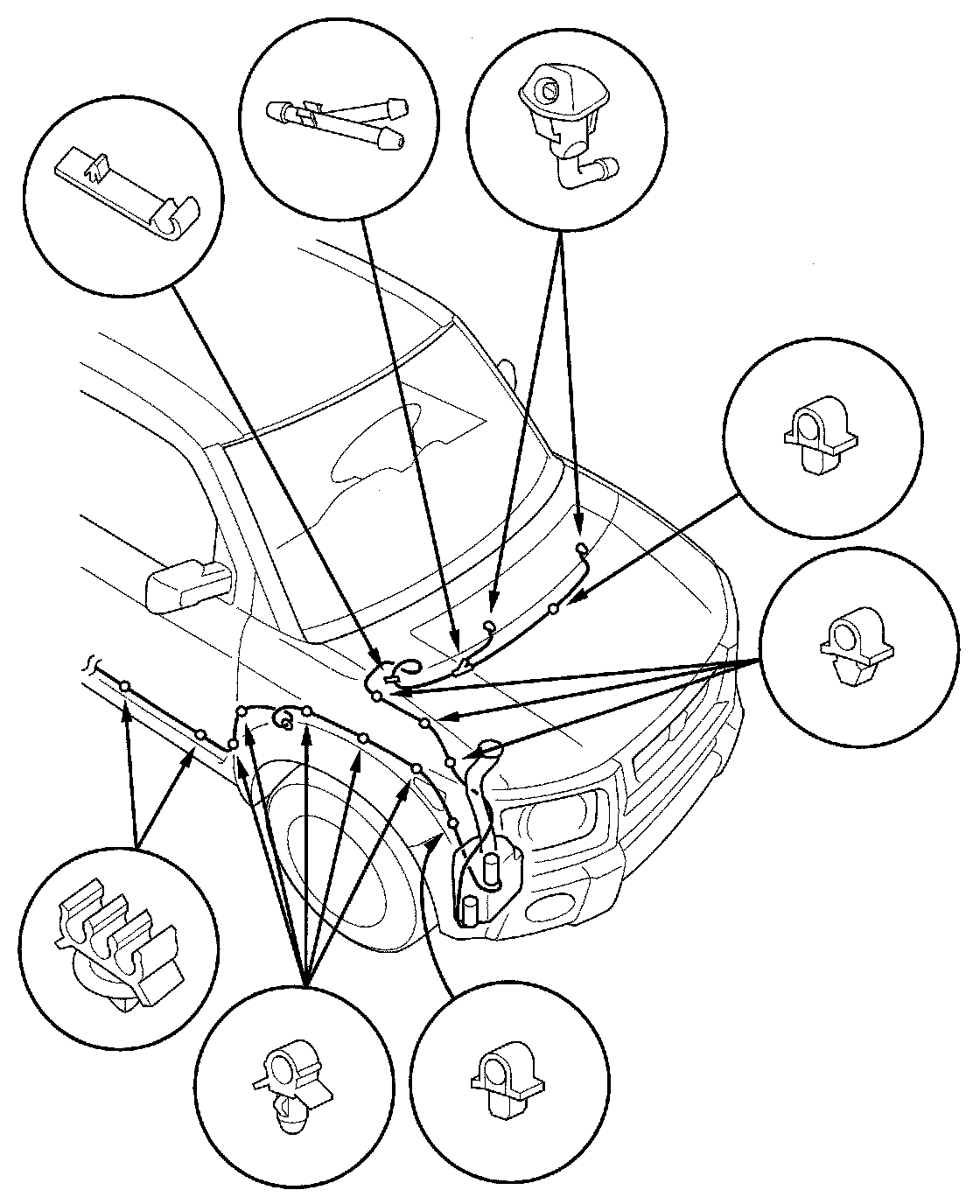

Washer Tubes Replacement

1. Remove the right inner fender.







2. Remove the washer nozzles and clips, then remove the tubes.
3. Install in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
