Component Location Index

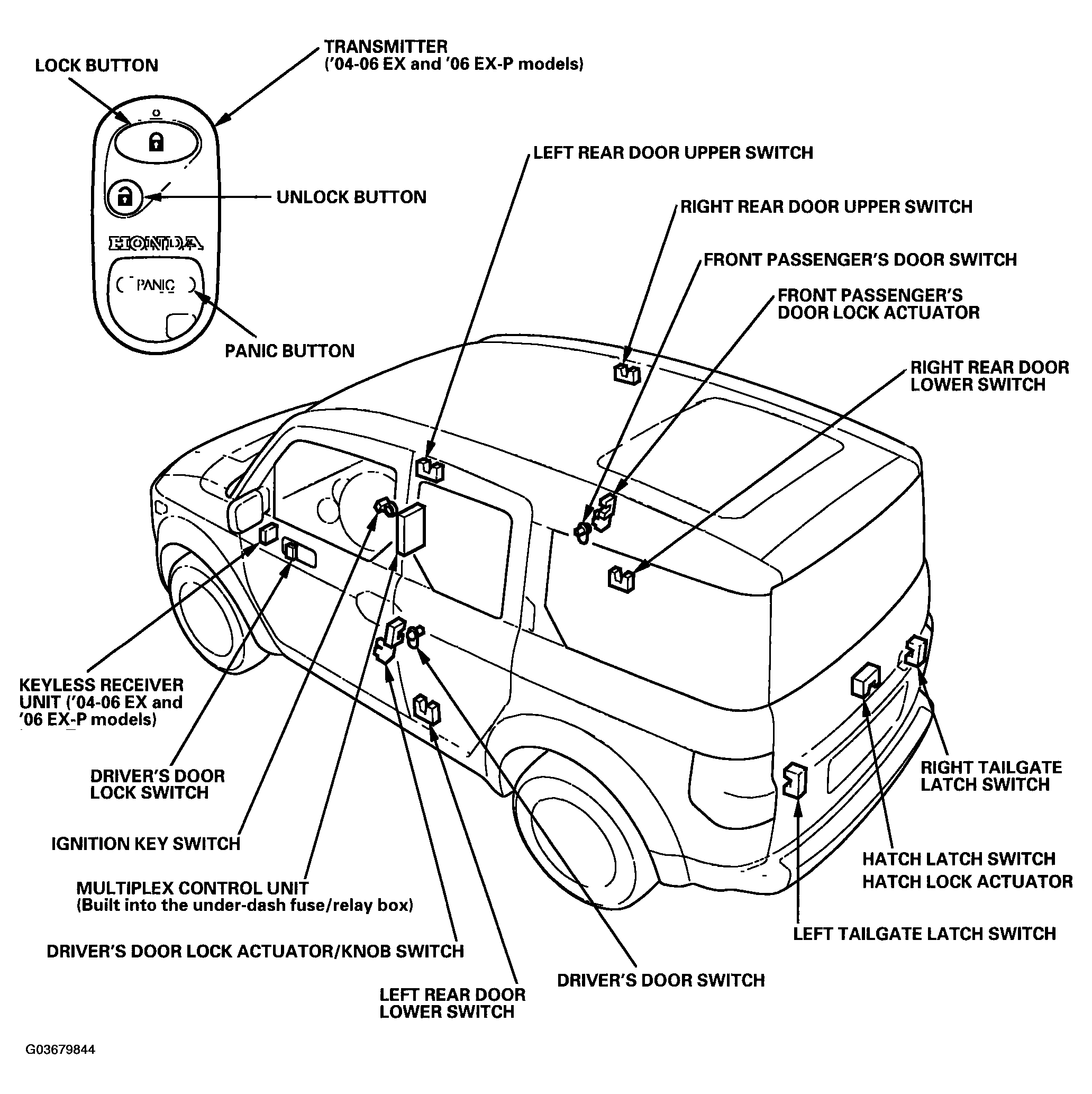

Fig 1: Identifying Keyless/Power Door Lock System Component Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
