ECT Sensor Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Remove the EVAP canister purge valve (see EVAP CANISTER PURGE VALVE REPLACEMENT ).
  3. Unbolt the under-hood fuse/relay box bolt, and move the assembly aside.
  4. Disconnect the ECT sensor connector (A).

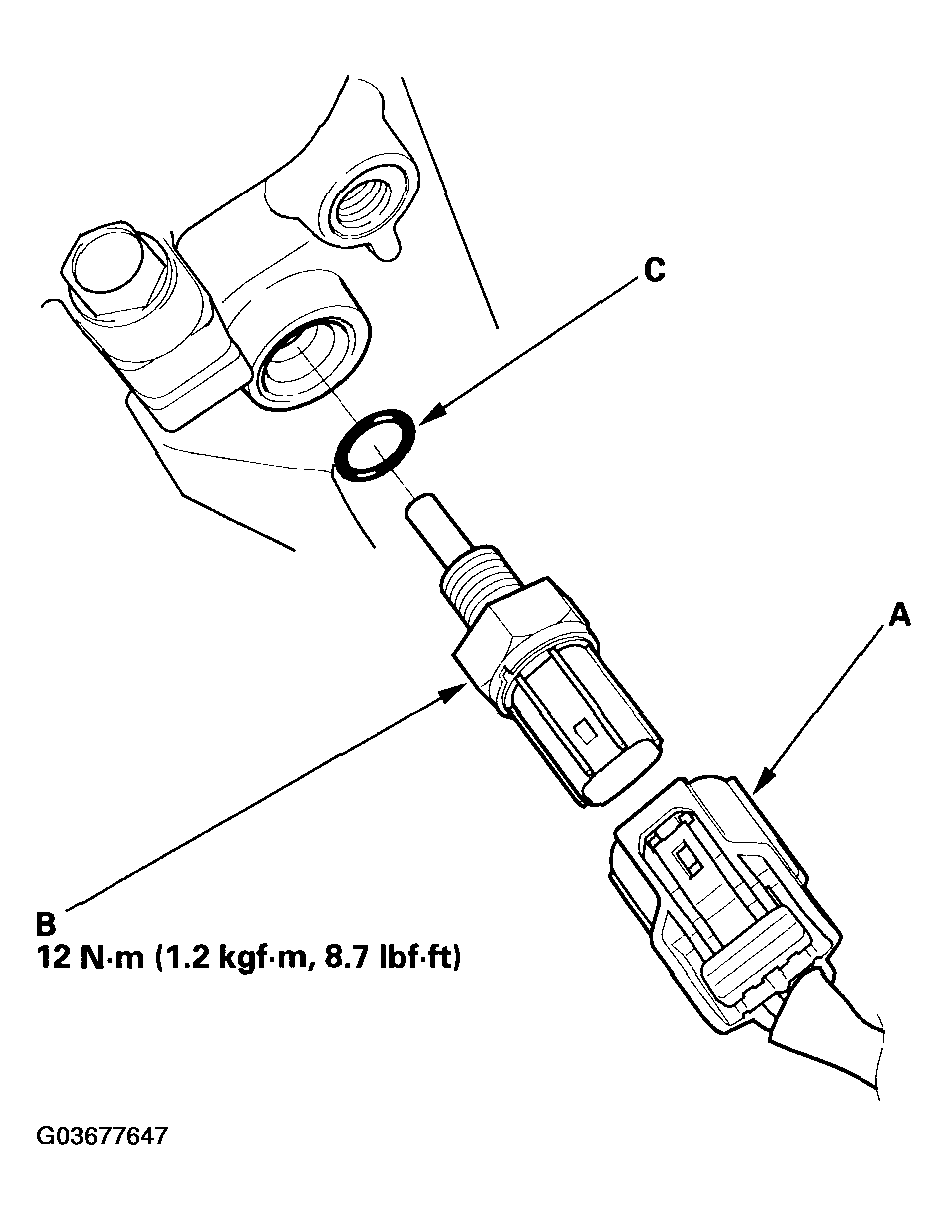

    Fig 1: Disconnecting ECT Sensor Connector And Torque Specifications
    G03677647Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the ECT sensor (B).
  6. Install the sensor in the reverse order of removal with a new O-ring (C).
