Frame Repair Chart

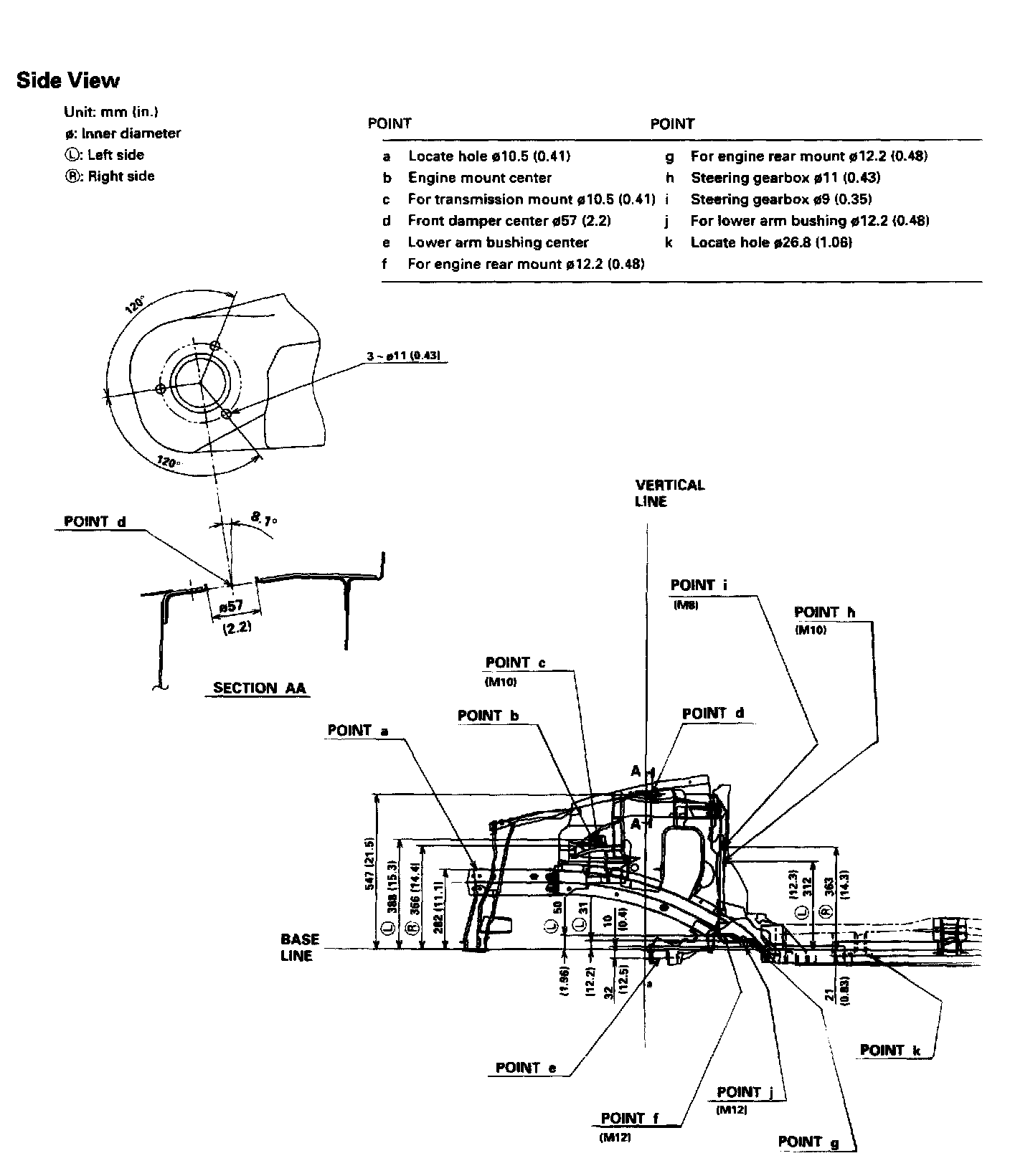

Frame Repair Chart Part 1:

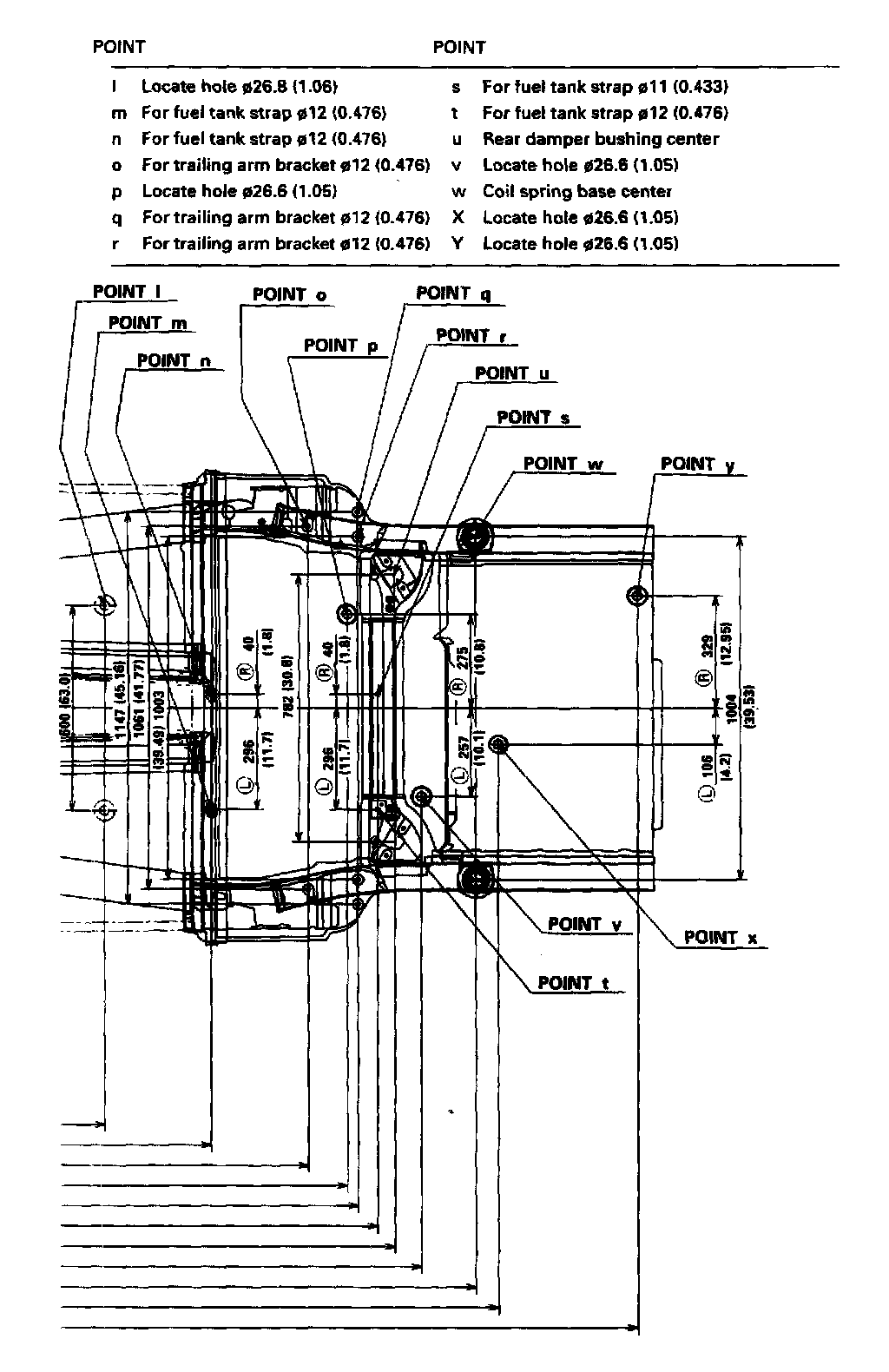

Frame Repair Chart Part 2:

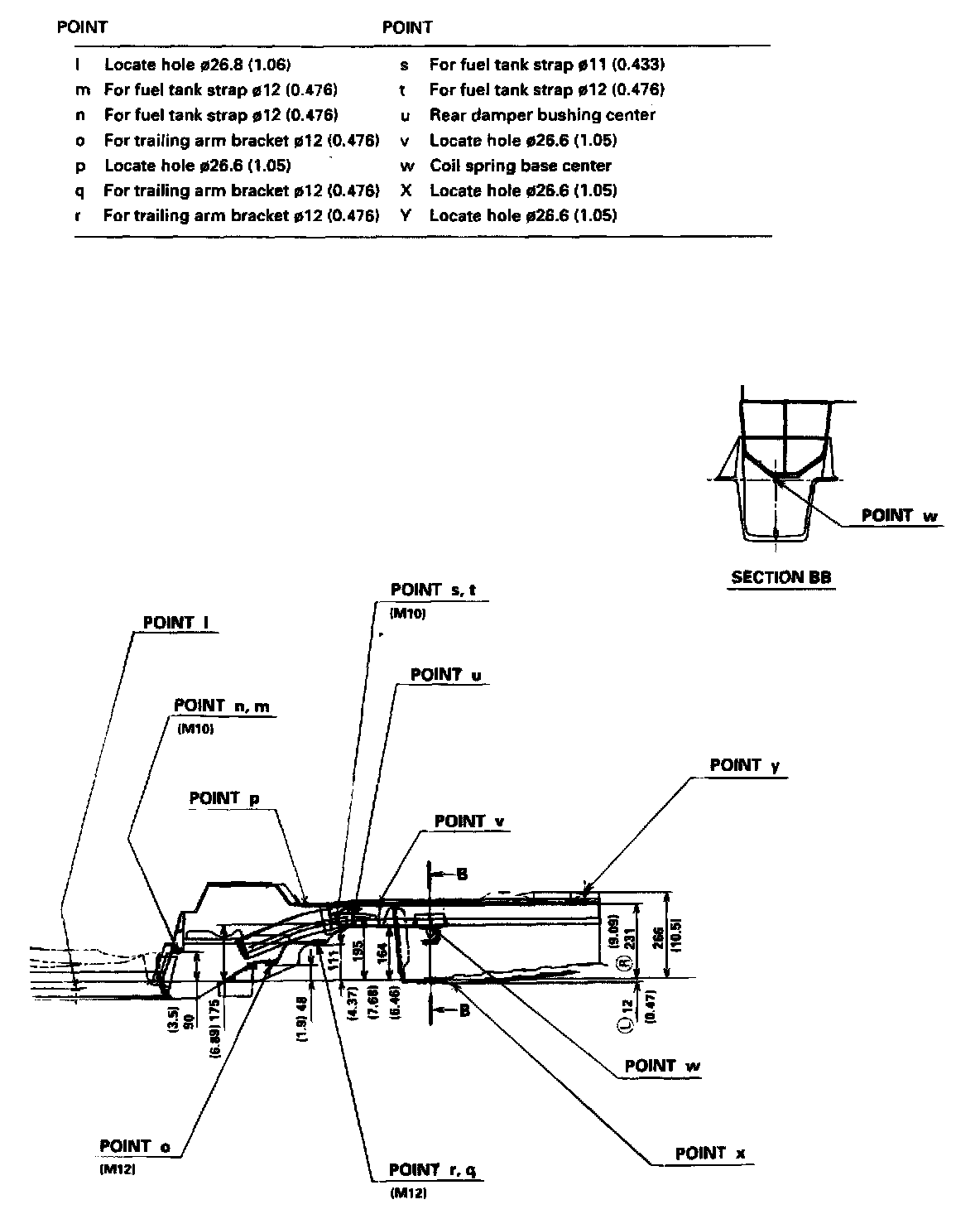

Frame Repair Chart Part 3:

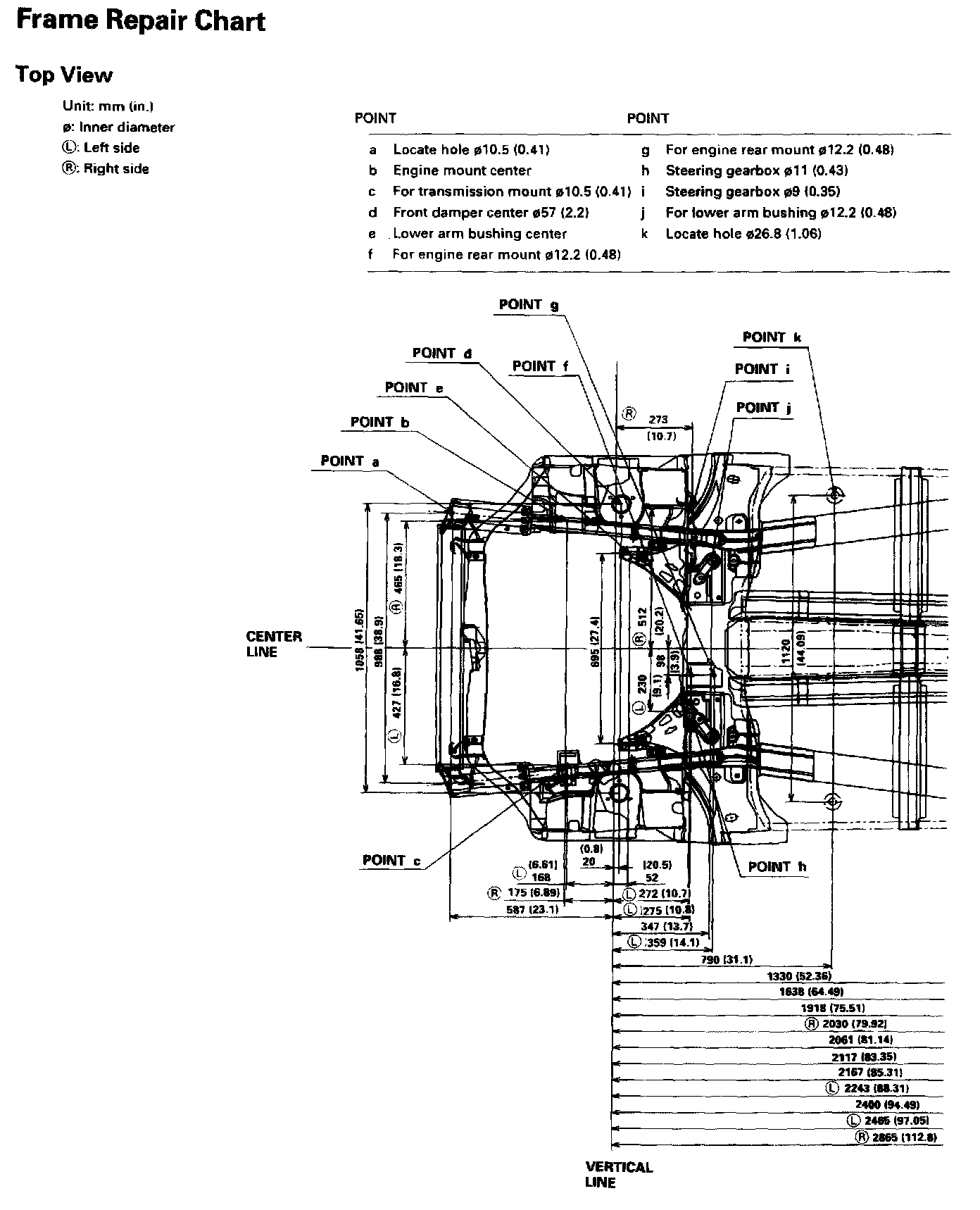

Frame Repair Chart Part 4:
