Heater Control Panel
Heater Control Panel Removal and Installation1. Remove the instrument panel with the heater control panel.

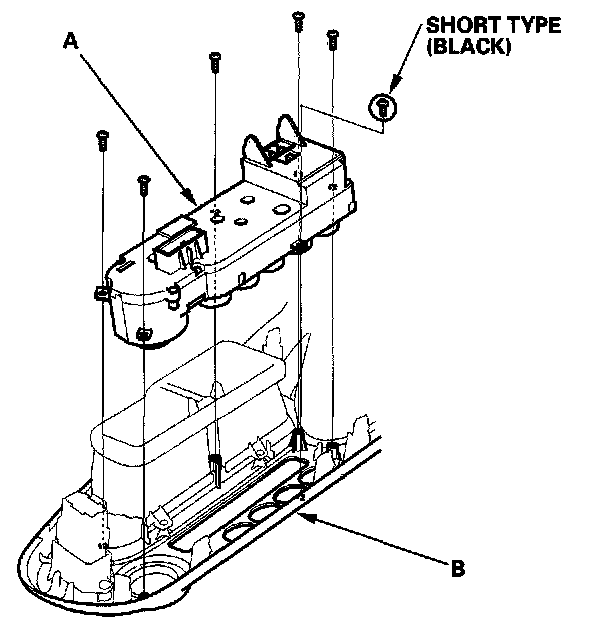

2. Remove the self-tapping screws and the heater control panel (A) from the instrument panel (B).
3. Install the control panel in the reverse order of removal, and note these items.
- Be sure to install the short black self-tapping screw in the position shown. If a longer screw is used, it will damage the instrument panel.
- After installation, operate the control panel controls to see whether it works properly.
4. Run the self-diagnosis function to confirm that there are no problems in the system.
