WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

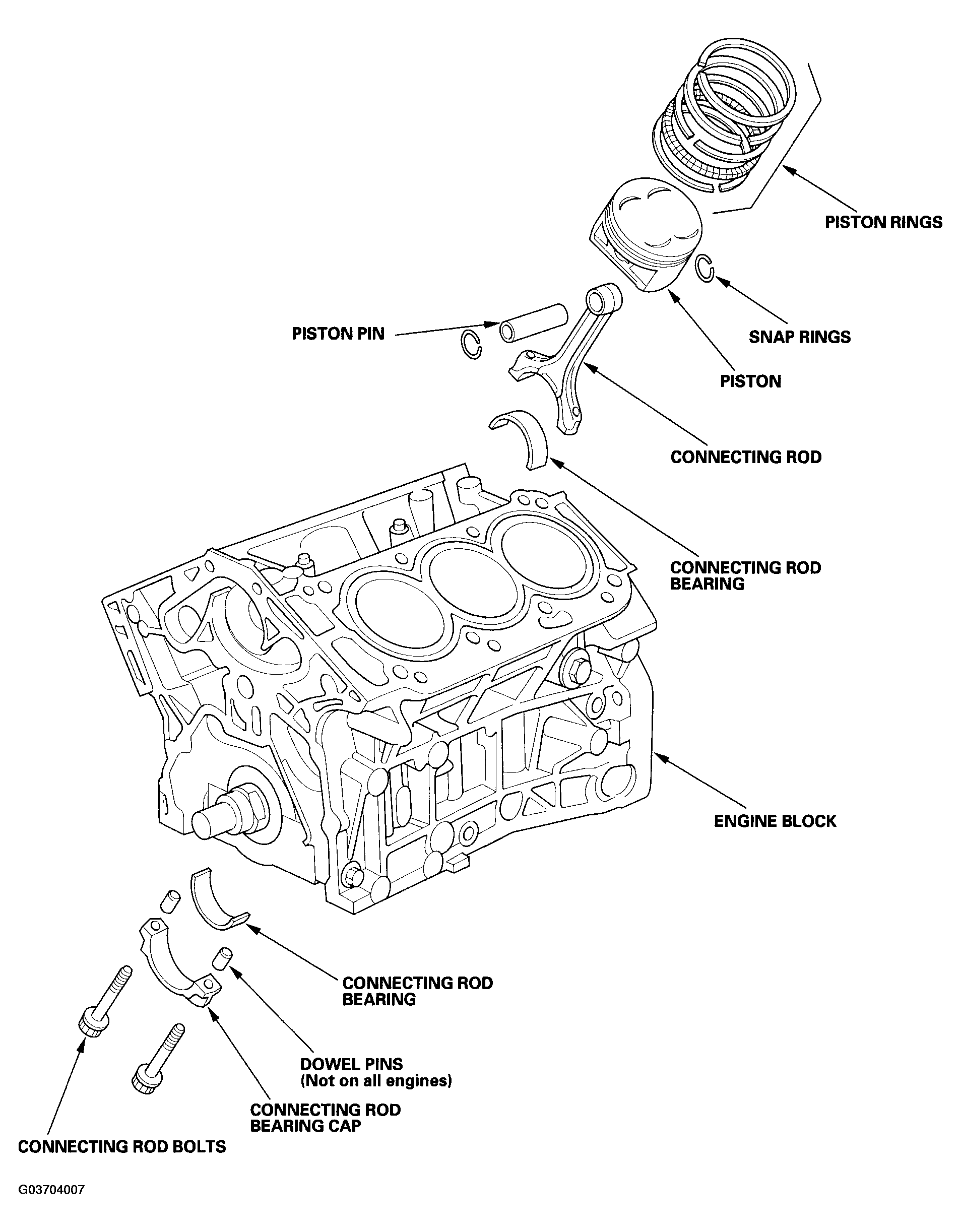

Fig 1: Identifying Component Location Of Engine Block (1 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

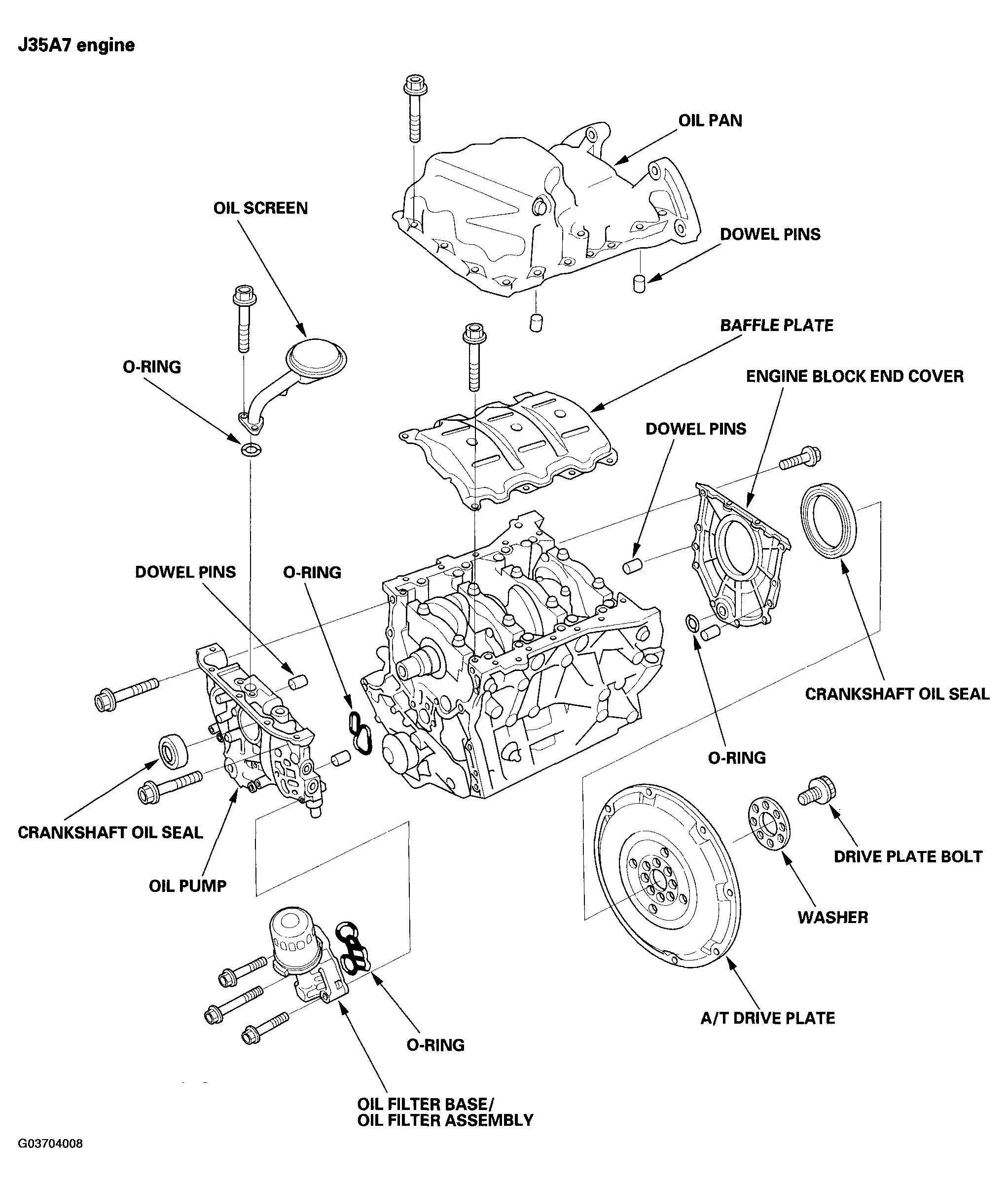

Fig 2: Identifying Component Location Of Engine Block (2 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

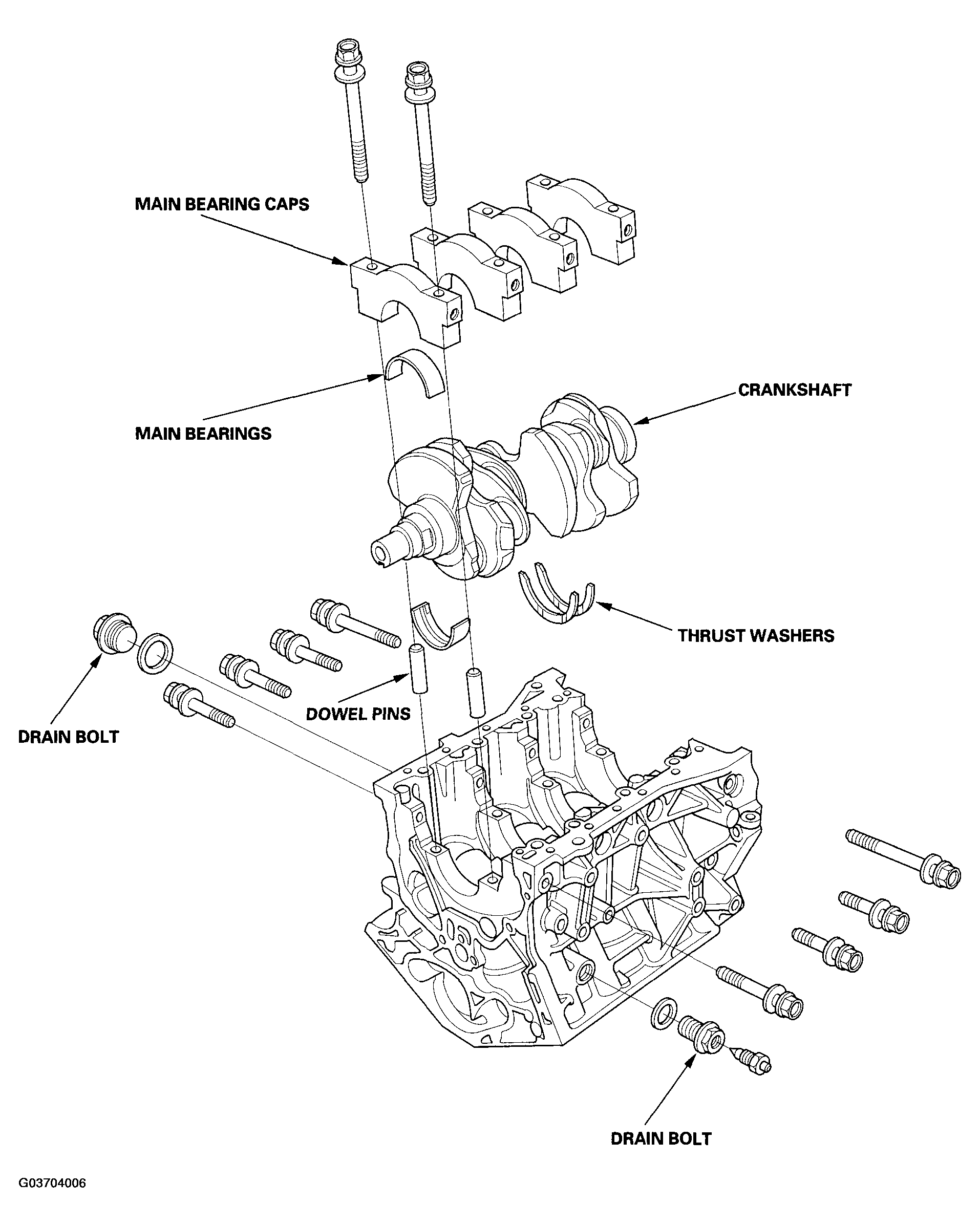

Fig 3: Identifying Component Location Of Engine Block (3 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

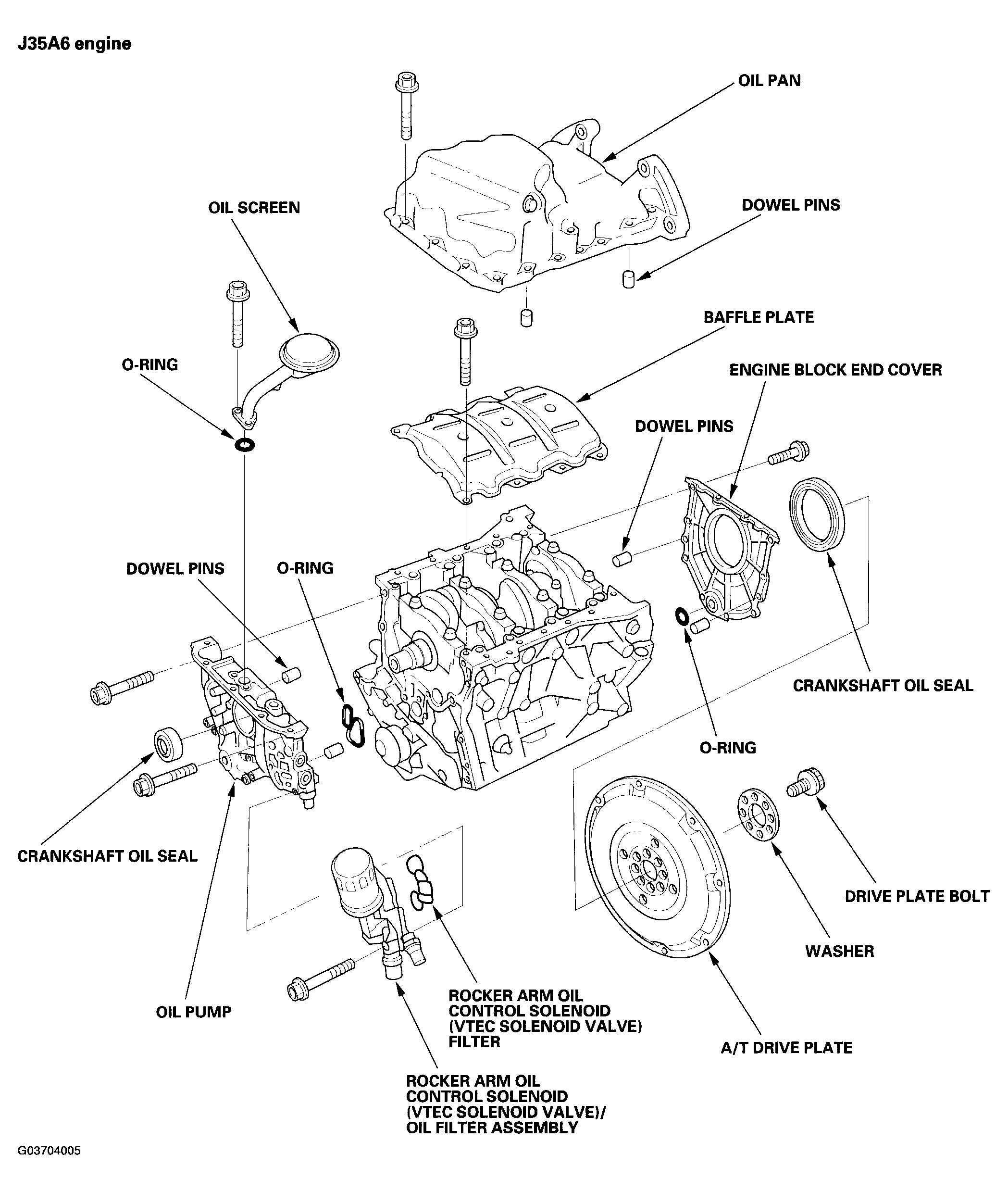

Fig 4: Identifying Component Location Of Engine Block (4 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

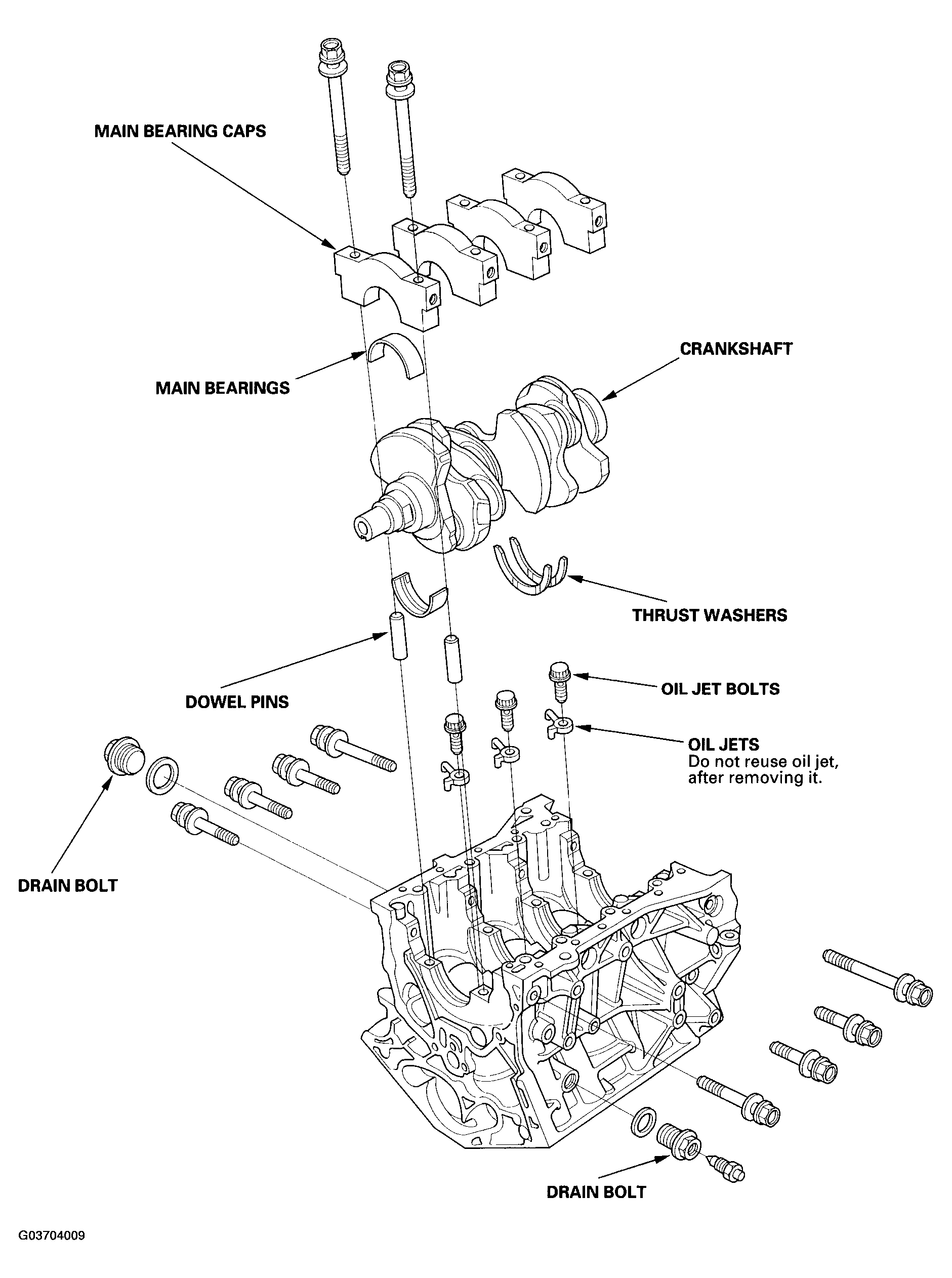

Fig 5: Identifying Component Location Of Engine Block (5 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

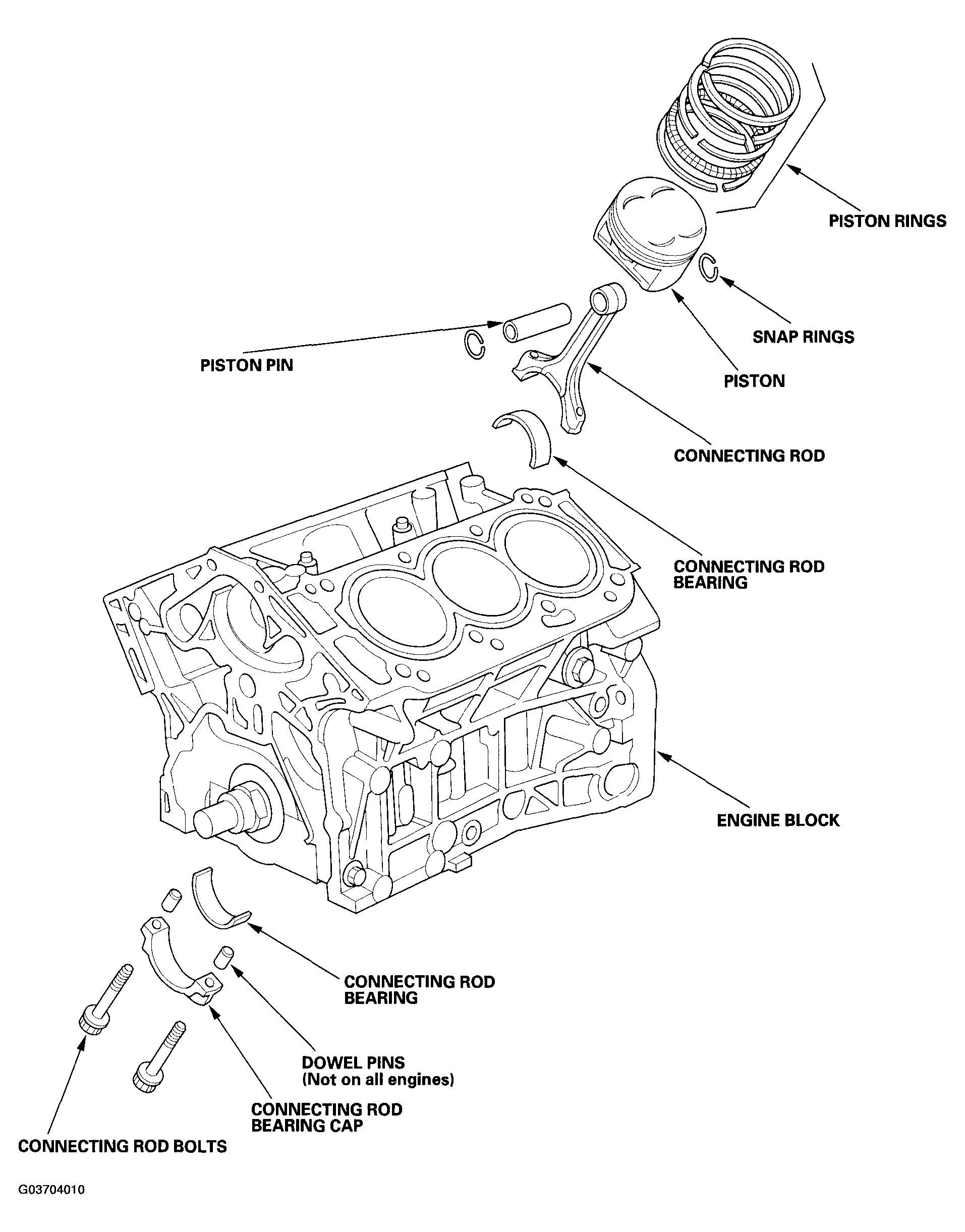

Fig 6: Identifying Component Location Of Engine Block (6 Of 6)
