Set/Resume/Cancel Switch

Set/Resume/Cancel Switch Test/Replacement

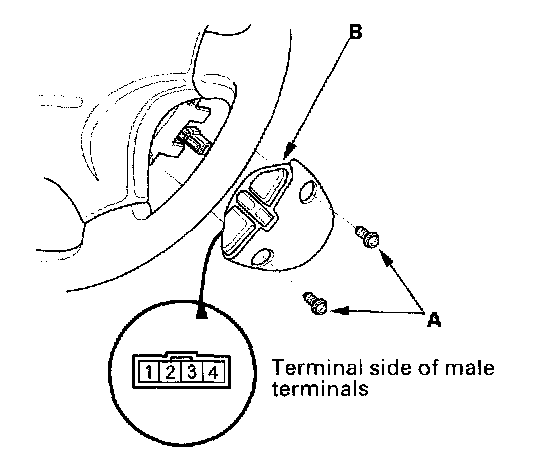

1. Remove the two screws (A), then remove the switch (B).

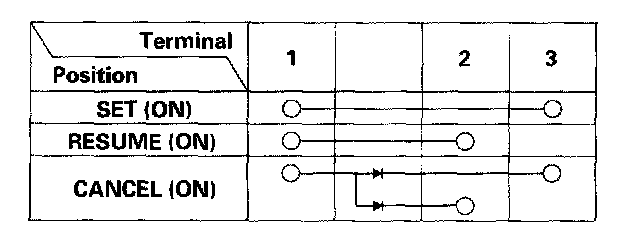

2. Check for continuity between the terminals in switch position according to the table.
- If there is continuity, and it matches the table, but switch failure was indicated by the cruise control unit input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the switch.
