Component Locations

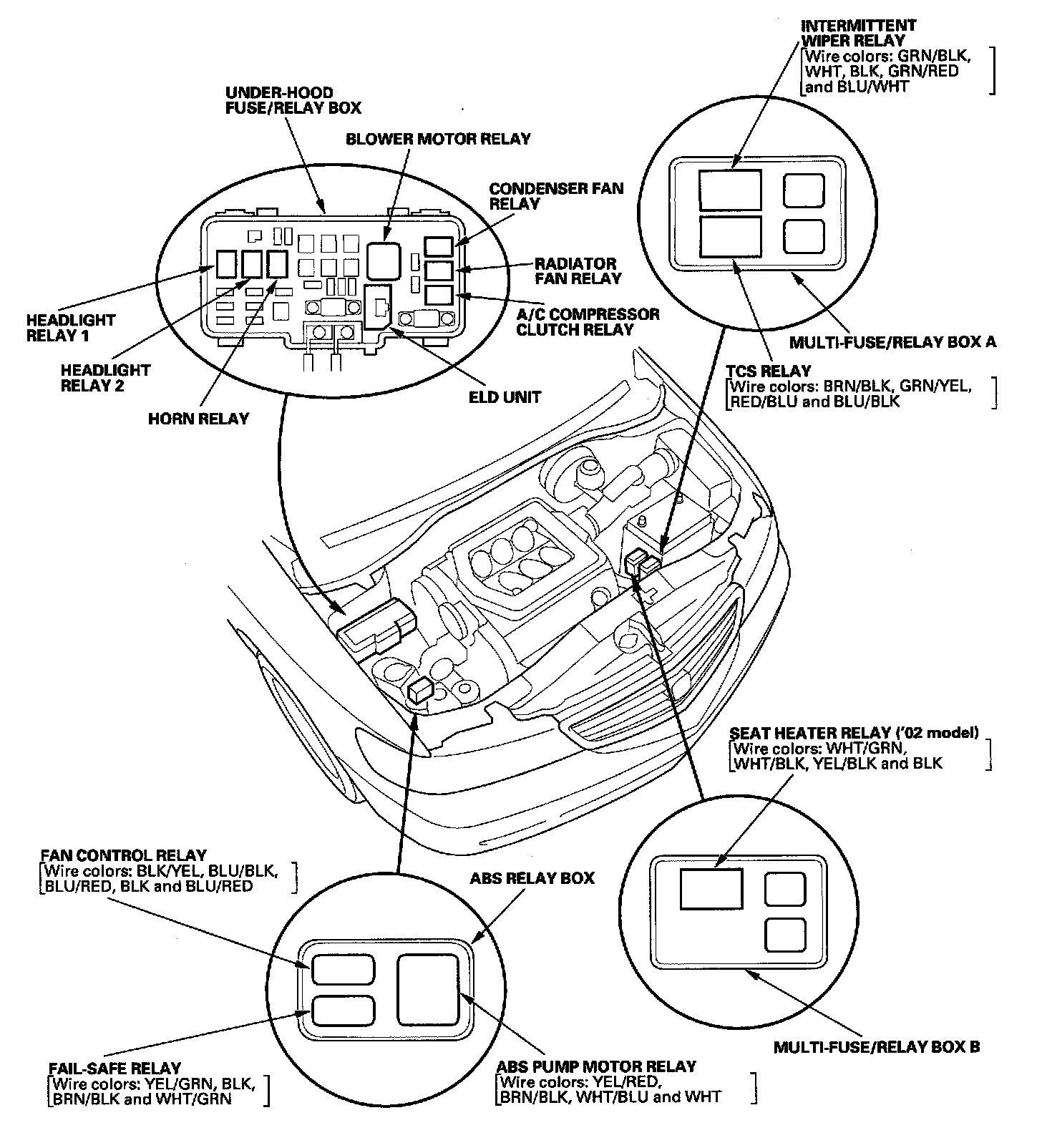

Relay And Control Unit Locations Engine Compartment:

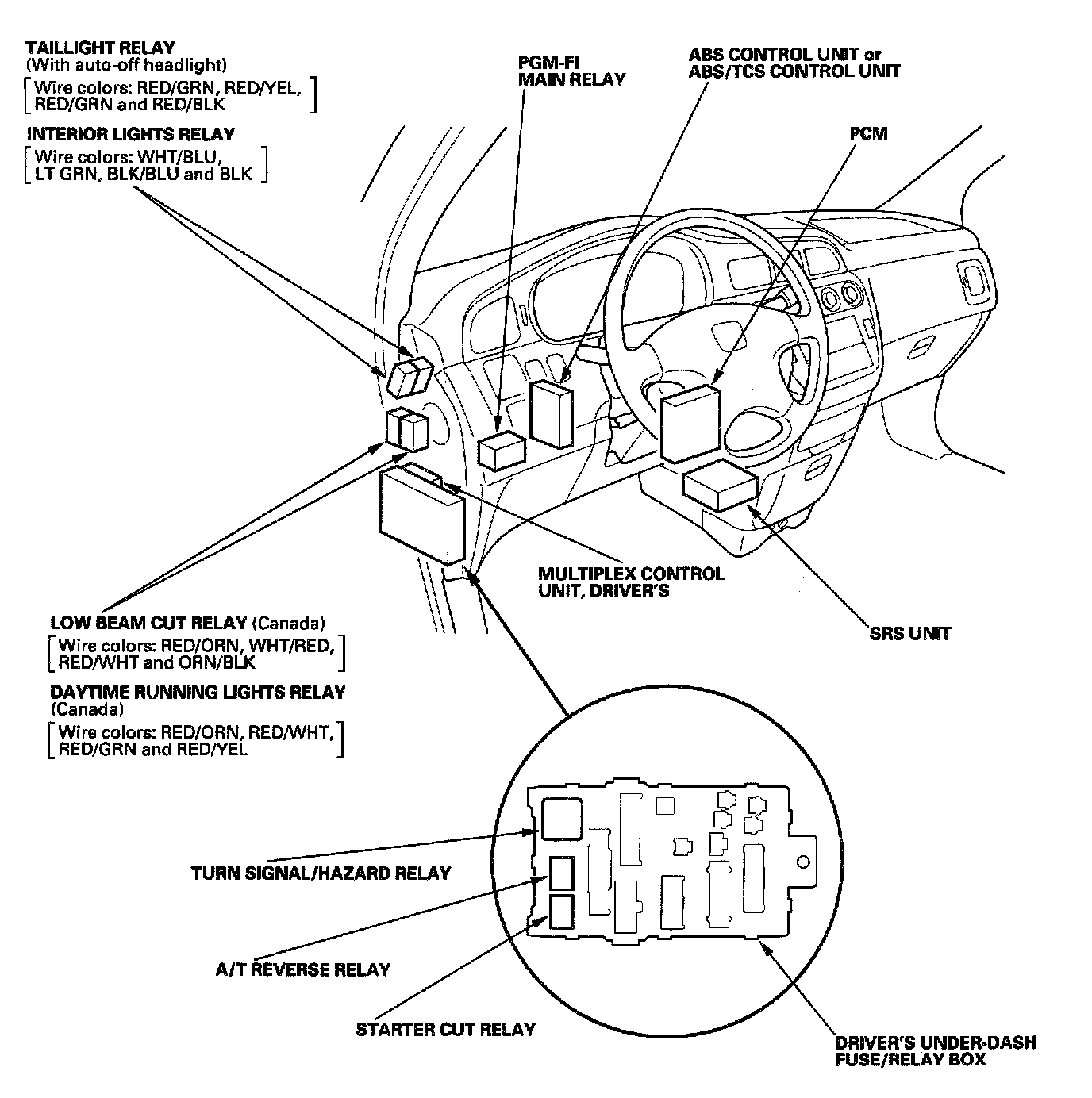

Relay And Control Unit Locations Dashboard Part 1:

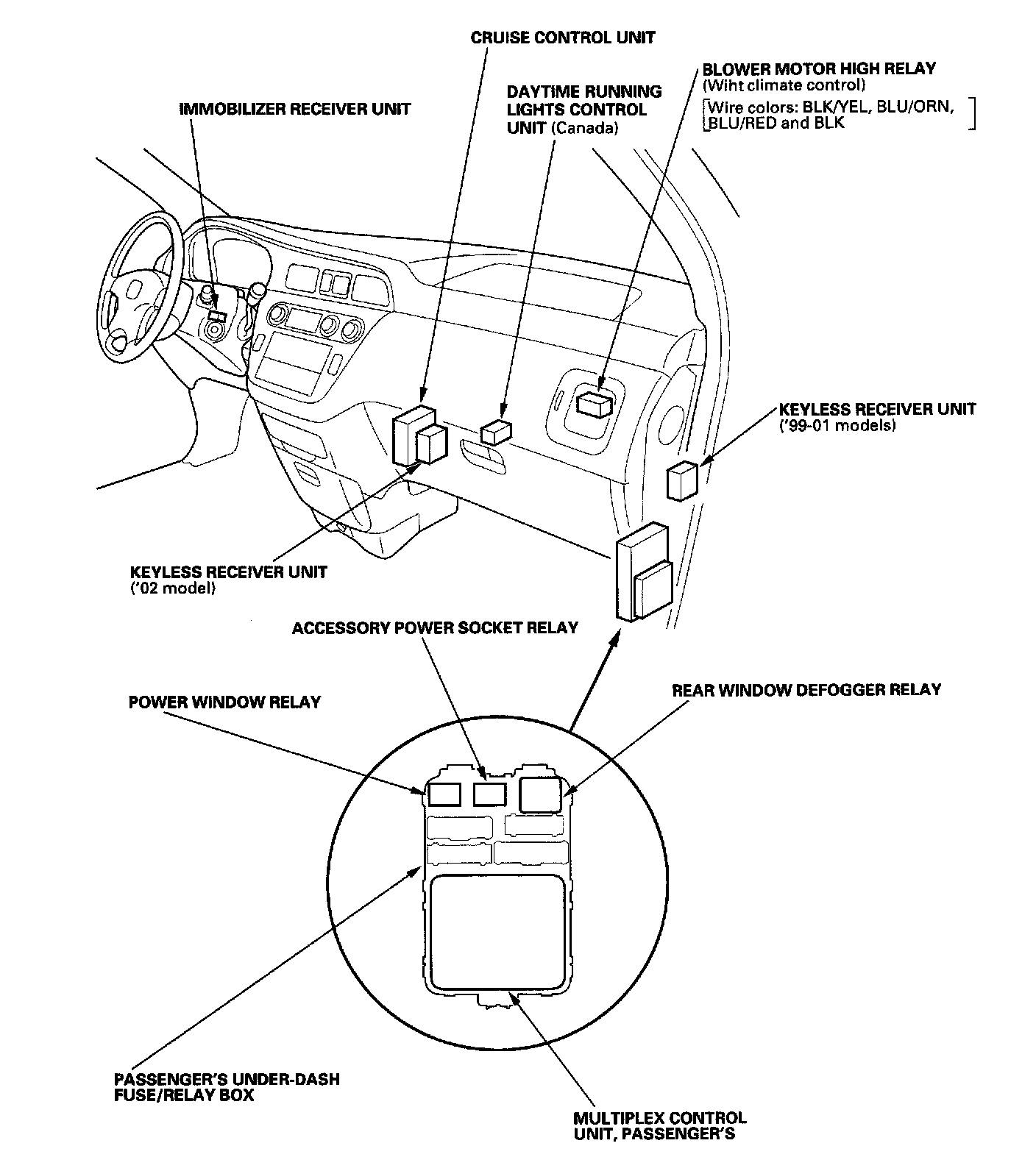

Relay And Control Unit Locations Dashboard Part 2:
