Ignition Switch: Service and Repair
ReplacementSRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS section before performing repairs of service.
1. Make sure you have the anti-theft codes for the radio and the navigation system, then write down the frequencies for the radio's preset buttons.
2. Disconnect the battery negative cable.
3. Remove the steering column covers.
4. Insert the ignition key, and turn it to "0"

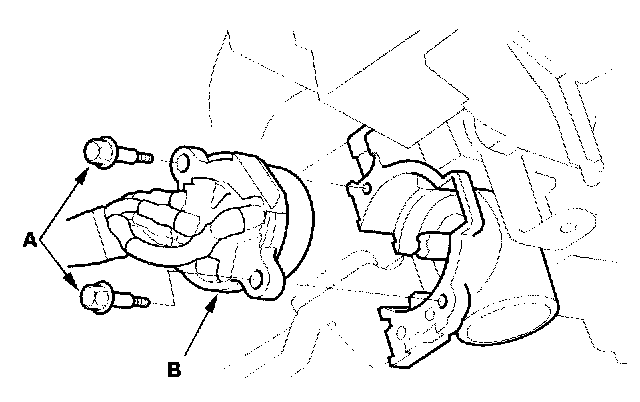

5. Remove the two screws (A), and replace the electrical switch (B).
6. Install in the reverse order of removal.
7. After reconnecting the battery, enter the anti-theft codes for the radio and the navigation system, then enter the customer's radio station presets.
8. Do the PCM idle learn procedure.
9. Do the power window control unit reset procedure.
10. Confirm that all systems work properly.
