Cruise Control Actuator Input Test

Disconnect the 12P connector from the actuator.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 3.

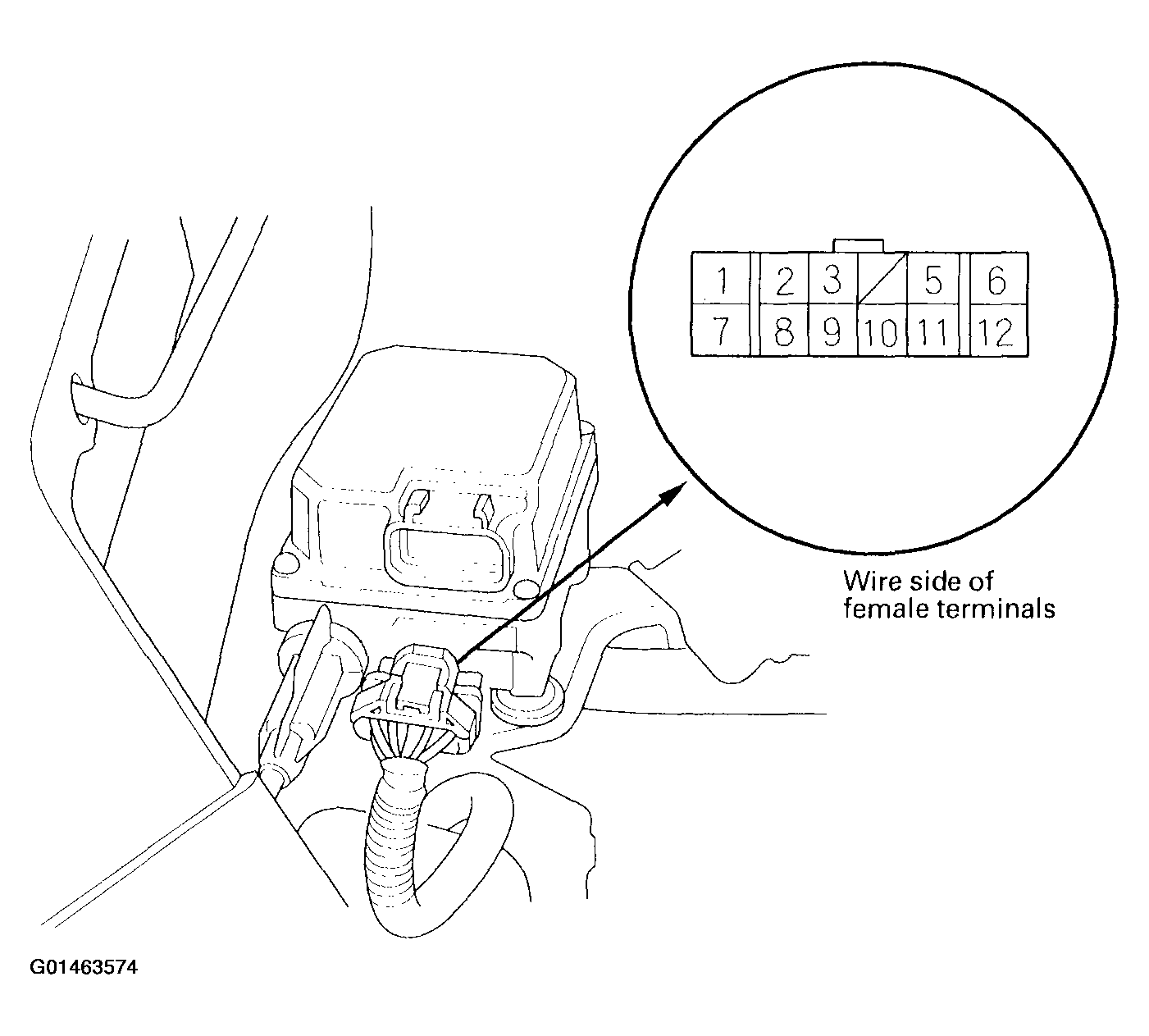

Fig 1: Inspecting Connector & Socket Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With the 12P connector disconnected, make these input tests.

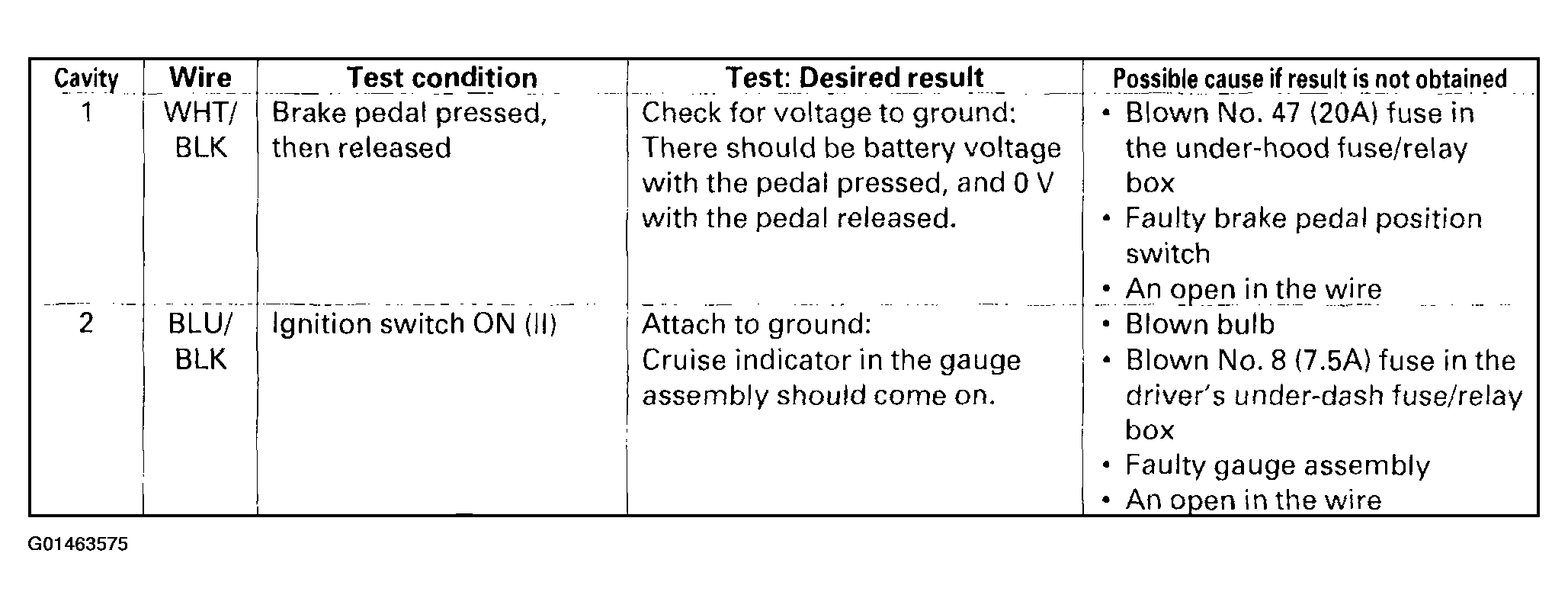

Fig 2: Cruise Control Actuator Input Test (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

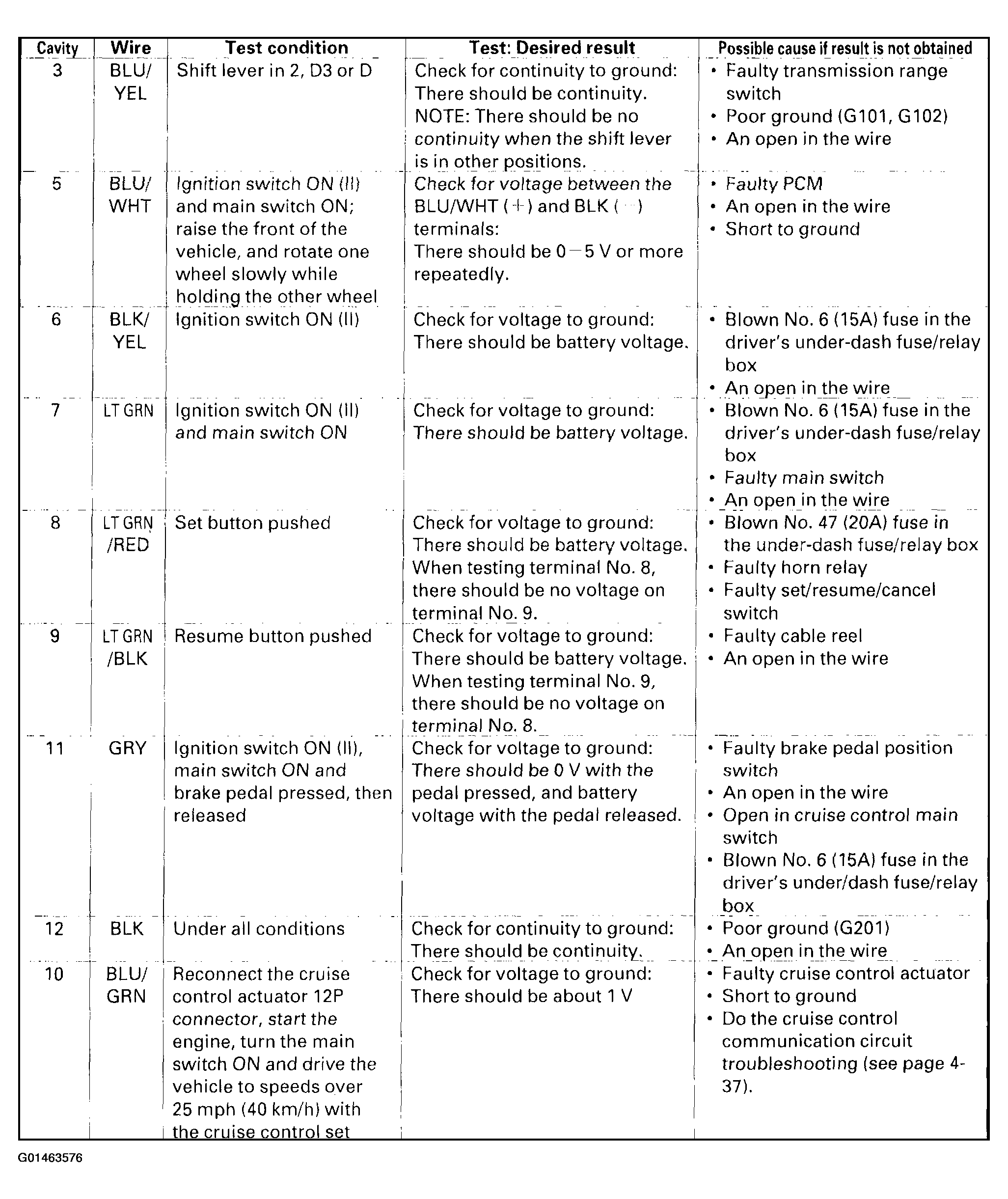

Fig 3: Cruise Control Actuator Input Test (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If any test indicates a problem, find and correct the cause, then recheck the system. If all the input tests prove OK, the cruise control actuator may be faulty. Substitute a known-good cruise control actuator and retest. If the system works properly, replace the cruise control actuator (see Cruise Control Actuator/Cable Replacement ).
